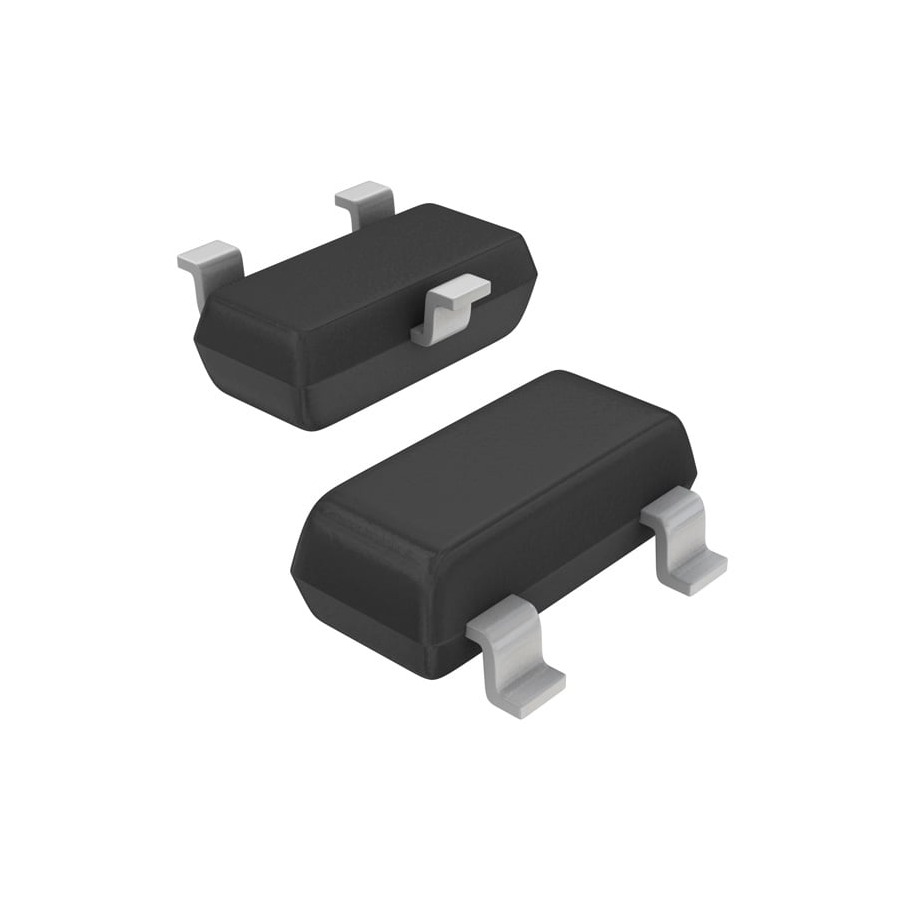

BAW56LT1G · DIODE ARRAY GP 70V 200MA SOT23-3
BAW56LT1G (DIODE ARRAY GP 70V 200MA SOT23-3 from onsemi) comes in a TO-236-3, SC-59, SOT-23-3 package. Reference unit price: ¥0.0195, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | BAW56LT1G |
| Manufacturer | onsemi |
| Description | DIODE ARRAY GP 70V 200MA SOT23-3 |
| Package | TO-236-3, SC-59, SOT-23-3 |
| Category | Diodes & Transistors / Rectifier Diodes |
| Reference price | ¥¥0.0195 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 2,738 pcs |
BAW56LT1G tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥0.0195 | In stock |
| 500 pcs and up | ¥0.0153 | In stock |
| 5000 pcs and up | ¥0.0106 | In stock |
BAW56LT1G specifications
| Diode Configuration | 1 Pair Common Anode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 70 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 70 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
About the DIODE ARRAY GP 70V 200MA SOT23-3
onsemi Diode Array 1 Pair Common Anode 70 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3. In stock — 2,738 pcs available.
BAW56LT1G — frequently asked questions
Reference availability: 2,738 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥0.0195, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥0.0195, 500 pcs and up: ¥0.0153, 5000 pcs and up: ¥0.0106. Send us your required quantity for a firm quotation.
BAW56LT1G is manufactured by onsemi in a TO-236-3, SC-59, SOT-23-3 package, filed under Diodes & Transistors / Rectifier Diodes. onsemi Diode Array 1 Pair Common Anode 70 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3. In stock — 2,738 pcs available.
The minimum order quantity for BAW56LT1G is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Diode Configuration, Technology, Voltage - DC Reverse (Vr) (Max)) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
