Diodes & Transistors Rectifier Diodes · Taiwan

1N4148WS RRG · Rectifier Diode SOD-323F

1N4148WS RRG (Rectifier Diode SOD-323F from Taiwan) comes in a SOD-323F package. Reference unit price: Request quote, minimum order 1 piece. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

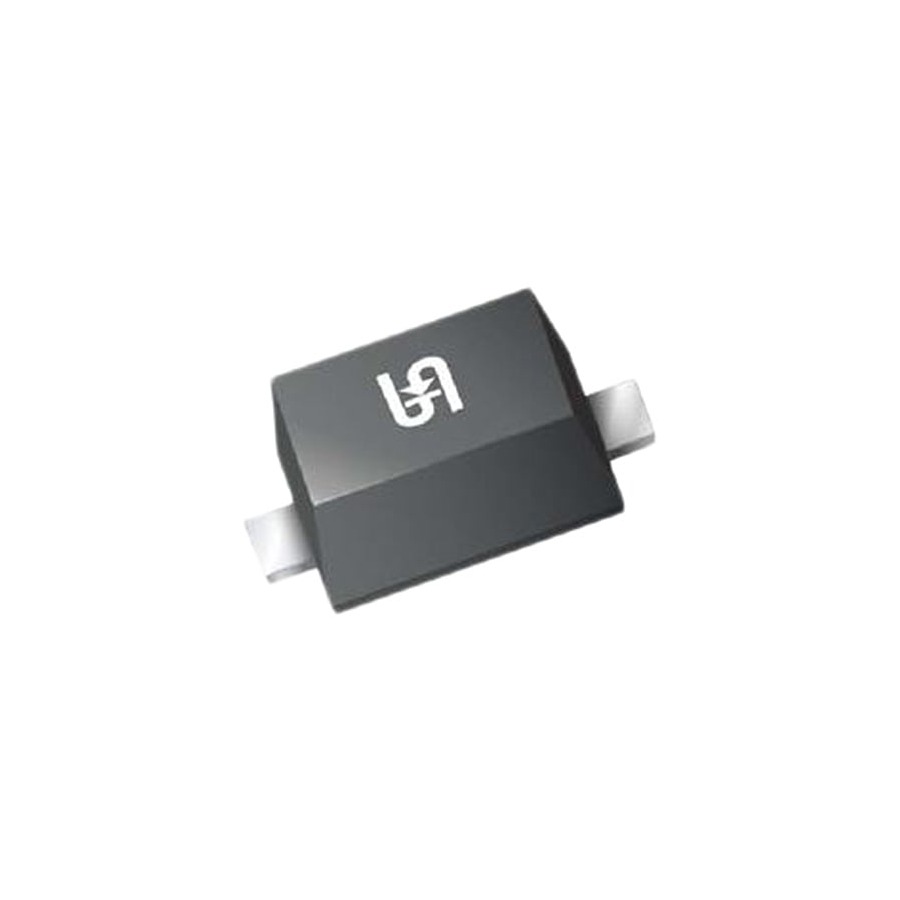

1N4148WS RRG Rectifier Diode SOD-323F
Part number1N4148WS RRG
ManufacturerTaiwan
DescriptionRectifier Diode SOD-323F
PackageSOD-323F
CategoryDiodes & Transistors / Rectifier Diodes
Reference priceRequest quote
Min. order1 pcs
AvailabilityConfirm on inquiry
Reference stock0 pcs

1N4148WS RRG price and stock (reference)

This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.

1N4148WS RRG specifications

Reverse Recovery Time (trr)4ns
Voltage - DC Reverse (Vr) (Max)75V
Diode ConfigurationStandalone
Voltage - Forward(Vf)1V@10mA
Current - Rectified150mA
Operating Junction Temperature Range-65℃~+150℃
Pd - Power Dissipation200mW
Reverse Leakage Current (Ir)5uA@75V
Non-Repetitive Peak Forward Surge Current300mA

About the Rectifier Diode SOD-323F

1N4148WS RRG is Taiwan's Rectifier Diode SOD-323F. Typical use is 50/60 Hz rectification, reverse-polarity protection and freewheeling in a line-frequency circuit. Check average current and reverse voltage first, then the surge rating. Ordinary rectifiers are slow, so do not drop one into a switching-supply secondary - that needs a fast or Schottky part. Availability, batch and lead time are confirmed on inquiry.

1N4148WS RRG — frequently asked questions

Is 1N4148WS RRG in stock?

Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does 1N4148WS RRG cost?

This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.

What package and brand is 1N4148WS RRG?

1N4148WS RRG is manufactured by Taiwan in a SOD-323F package, filed under Diodes & Transistors / Rectifier Diodes. 1N4148WS RRG is Taiwan's Rectifier Diode SOD-323F. Typical use is 50/60 Hz rectification, reverse-polarity protection and freewheeling in a line-frequency circuit. Check average current and reverse voltage first, then the surge rating. Ordinary rectifiers are slow, so do not drop one into a switching-supply secondary - that needs a fast or Schottky part. Availability, batch and lead time are confirmed on inquiry.

What is the minimum order quantity for 1N4148WS RRG?

The minimum order quantity for 1N4148WS RRG is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for 1N4148WS RRG?

Yes. Send us the original part number or the key parameters (Reverse Recovery Time (trr), Voltage - DC Reverse (Vr) (Max), Diode Configuration) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for 1N4148WS RRG?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Rectifier Diodes parts

Need 1N4148WS RRG?

Genuine parts · small-batch trial runs · full BOM kitting

How to order 1N4148WS RRG

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
