Diodes & Transistors Rectifier Diodes · onsemi

BAV70LT1G · DIODE ARR GP 100V 200MA SOT23-3

BAV70LT1G (DIODE ARR GP 100V 200MA SOT23-3 from onsemi) comes in a TO-236-3, SC-59, SOT-23-3 package. Reference unit price: US$0.015, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

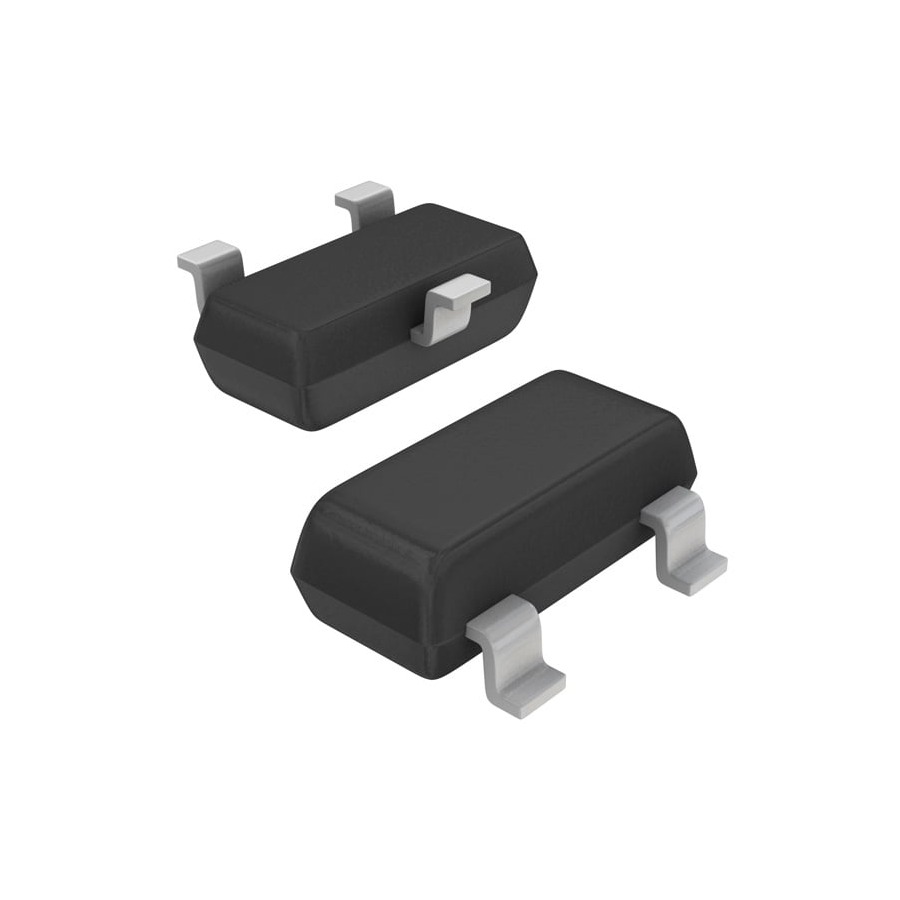

BAV70LT1G DIODE ARR GP 100V 200MA SOT23-3
Part numberBAV70LT1G
Manufactureronsemi
DescriptionDIODE ARR GP 100V 200MA SOT23-3
PackageTO-236-3, SC-59, SOT-23-3
CategoryDiodes & Transistors / Rectifier Diodes
Reference priceUS$0.015
Min. order1 pcs
AvailabilityIn stock
Reference stock8,388 pcs

BAV70LT1G price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.015In stock
10 pcs and upUS$0.011In stock
60 pcs and upUS$0.0095In stock
120 pcs and upUS$0.0083In stock
480 pcs and upUS$0.0073In stock
1020 pcs and upUS$0.0068In stock

BAV70LT1G specifications

Diode Configuration1 Pair Common Cathode
TechnologyStandard
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)6 ns
Current - Reverse Leakage @ Vr2.5 µA @ 70 V
Operating Temperature - Junction-55°C ~ 150°C

About the DIODE ARR GP 100V 200MA SOT23-3

BAV70LT1G is onsemi's DIODE ARR GP 100V 200MA SOT23-3, TO-236-3, SC-59, SOT-23-3 package. Typical use is 50/60 Hz rectification, reverse-polarity protection and freewheeling in a line-frequency circuit. Match the current and reverse-voltage ratings, and remember recovery time: a standard rectifier is too slow for a switching secondary. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

BAV70LT1G — frequently asked questions

Is BAV70LT1G in stock?

Reference availability: 8,388 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does BAV70LT1G cost?

Reference unit price is US$0.015, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.015, 10 pcs and up: US$0.011, 60 pcs and up: US$0.0095, 120 pcs and up: US$0.0083, 480 pcs and up: US$0.0073, 1020 pcs and up: US$0.0068. Send us your required quantity for a firm quotation.

What package and brand is BAV70LT1G?

BAV70LT1G is manufactured by onsemi in a TO-236-3, SC-59, SOT-23-3 package, filed under Diodes & Transistors / Rectifier Diodes. BAV70LT1G is onsemi's DIODE ARR GP 100V 200MA SOT23-3, TO-236-3, SC-59, SOT-23-3 package. Typical use is 50/60 Hz rectification, reverse-polarity protection and freewheeling in a line-frequency circuit. Match the current and reverse-voltage ratings, and remember recovery time: a standard rectifier is too slow for a switching secondary. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for BAV70LT1G?

The minimum order quantity for BAV70LT1G is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for BAV70LT1G?

Yes. Send us the original part number or the key parameters (Diode Configuration, Technology, Voltage - DC Reverse (Vr) (Max)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for BAV70LT1G?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Rectifier Diodes parts

Need BAV70LT1G?

Genuine parts · small-batch trial runs · full BOM kitting

How to order BAV70LT1G

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
