Diodes & Transistors TVS & Zener Diodes · VISHAY

SMAJ33A-E3/5A · TVS SMA(DO-214AC)

SMAJ33A-E3/5A (TVS SMA(DO-214AC) from VISHAY) comes in a SMA(DO-214AC) package. Reference unit price: US$0.080, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

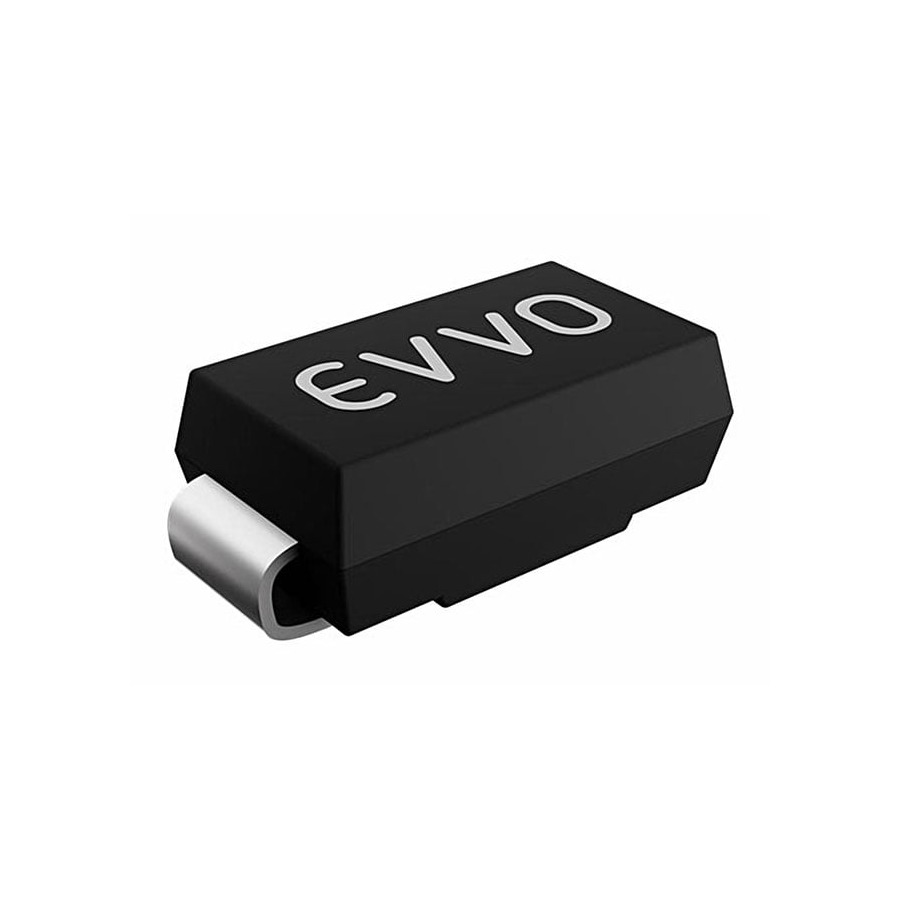

SMAJ33A-E3/5A TVS SMA(DO-214AC)
Part numberSMAJ33A-E3/5A
ManufacturerVISHAY
DescriptionTVS SMA(DO-214AC)
PackageSMA(DO-214AC)
CategoryDiodes & Transistors / TVS & Zener Diodes
Reference priceUS$0.080
Min. order1 pcs
AvailabilityIn stock
Reference stock60 pcs

SMAJ33A-E3/5A price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.080In stock
10 pcs and upUS$0.070In stock
30 pcs and upUS$0.064In stock
100 pcs and upUS$0.061In stock
500 pcs and upUS$0.058In stock

SMAJ33A-E3/5A specifications

Clamping Voltage53.3V
Peak Pulse Current (Ipp)7.5A@10/1000us
Peak Pulse Power Dissipation (Ppp)400W@10/1000us
Voltage - Breakdown40.6V
PolarityUnidirectional
Reverse Stand-Off Voltage (Vrwm)33V
Operating Temperature-55℃~+150℃
Number of Channels1
typeTVS

About the TVS SMA(DO-214AC)

SMAJ33A-E3/5A is VISHAY's TVS SMA(DO-214AC). Typical use is ESD and surge protection on supply rails, IO lines and connector pins that see the outside world; the lower-voltage zeners do similar duty as a crude reference or clamp. Match stand-off voltage to the rail and check clamping voltage against what the protected IC can survive. A plain zener is fine as a reference or clamp but is not a surge-rated TVS. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

SMAJ33A-E3/5A — frequently asked questions

Is SMAJ33A-E3/5A in stock?

Reference availability: 60 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does SMAJ33A-E3/5A cost?

Reference unit price is US$0.080, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.080, 10 pcs and up: US$0.070, 30 pcs and up: US$0.064, 100 pcs and up: US$0.061, 500 pcs and up: US$0.058. Send us your required quantity for a firm quotation.

What package and brand is SMAJ33A-E3/5A?

SMAJ33A-E3/5A is manufactured by VISHAY in a SMA(DO-214AC) package, filed under Diodes & Transistors / TVS & Zener Diodes. SMAJ33A-E3/5A is VISHAY's TVS SMA(DO-214AC). Typical use is ESD and surge protection on supply rails, IO lines and connector pins that see the outside world; the lower-voltage zeners do similar duty as a crude reference or clamp. Match stand-off voltage to the rail and check clamping voltage against what the protected IC can survive. A plain zener is fine as a reference or clamp but is not a surge-rated TVS. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for SMAJ33A-E3/5A?

The minimum order quantity for SMAJ33A-E3/5A is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for SMAJ33A-E3/5A?

Yes. Send us the original part number or the key parameters (Clamping Voltage, Peak Pulse Current (Ipp), Peak Pulse Power Dissipation (Ppp)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for SMAJ33A-E3/5A?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related TVS & Zener Diodes parts

Need SMAJ33A-E3/5A?

Genuine parts · small-batch trial runs · full BOM kitting

How to order SMAJ33A-E3/5A

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
