Diodes & Transistors TVS & Zener Diodes · Comchip

CPDUC5V0R-HF · TVS SOD-523F

CPDUC5V0R-HF (TVS SOD-523F from Comchip) comes in a SOD-523F package. Reference unit price: US$0.081, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

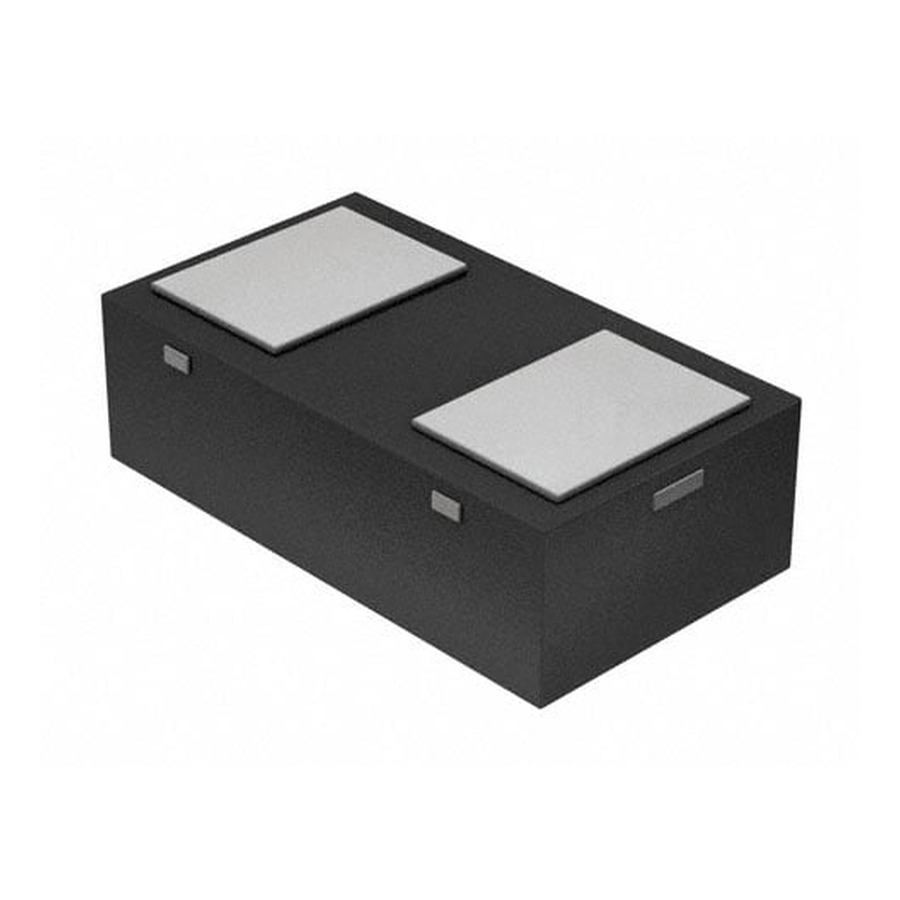

CPDUC5V0R-HF TVS SOD-523F
Part numberCPDUC5V0R-HF
ManufacturerComchip
DescriptionTVS SOD-523F
PackageSOD-523F
CategoryDiodes & Transistors / TVS & Zener Diodes
Reference priceUS$0.081
Min. order1 pcs
AvailabilityIn stock
Reference stock862 pcs

CPDUC5V0R-HF price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.081In stock
10 pcs and upUS$0.067In stock
30 pcs and upUS$0.059In stock
100 pcs and upUS$0.054In stock
500 pcs and upUS$0.046In stock
800 pcs and upUS$0.043In stock

CPDUC5V0R-HF specifications

Clamping Voltage12V
Voltage - Breakdown9.4V
PolarityBidirectional
Reverse Stand-Off Voltage (Vrwm)5V
Operating Temperature-40℃~+150℃
typeESD
Reverse Leakage Current (Ir)5nA

About the TVS SOD-523F

CPDUC5V0R-HF is Comchip's TVS SOD-523F. Typical use is ESD and surge protection on supply rails, IO lines and connector pins that see the outside world; the lower-voltage zeners do similar duty as a crude reference or clamp. Choose by stand-off voltage, breakdown voltage and peak pulse power - the stand-off voltage has to sit above the normal rail, and the clamp voltage below what the protected part can take. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

CPDUC5V0R-HF — frequently asked questions

Is CPDUC5V0R-HF in stock?

Reference availability: 862 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does CPDUC5V0R-HF cost?

Reference unit price is US$0.081, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.081, 10 pcs and up: US$0.067, 30 pcs and up: US$0.059, 100 pcs and up: US$0.054, 500 pcs and up: US$0.046, 800 pcs and up: US$0.043. Send us your required quantity for a firm quotation.

What package and brand is CPDUC5V0R-HF?

CPDUC5V0R-HF is manufactured by Comchip in a SOD-523F package, filed under Diodes & Transistors / TVS & Zener Diodes. CPDUC5V0R-HF is Comchip's TVS SOD-523F. Typical use is ESD and surge protection on supply rails, IO lines and connector pins that see the outside world; the lower-voltage zeners do similar duty as a crude reference or clamp. Choose by stand-off voltage, breakdown voltage and peak pulse power - the stand-off voltage has to sit above the normal rail, and the clamp voltage below what the protected part can take. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for CPDUC5V0R-HF?

The minimum order quantity for CPDUC5V0R-HF is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for CPDUC5V0R-HF?

Yes. Send us the original part number or the key parameters (Clamping Voltage, Voltage - Breakdown, Polarity) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for CPDUC5V0R-HF?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related TVS & Zener Diodes parts

Need CPDUC5V0R-HF?

Genuine parts · small-batch trial runs · full BOM kitting

How to order CPDUC5V0R-HF

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
