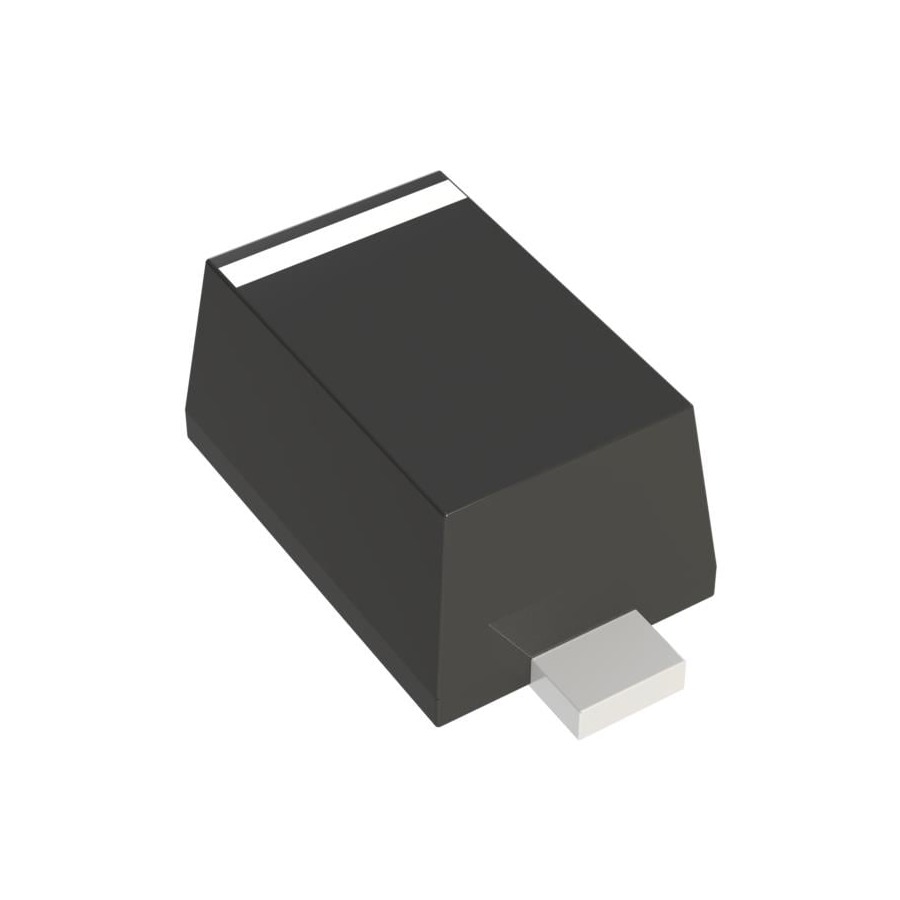

ESD12VD5-TP · TVS SOD-523

ESD12VD5-TP (TVS SOD-523 from MCC) comes in a SOD-523 package. Reference unit price: US$0.022, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

ESD12VD5-TP TVS SOD-523
Part numberESD12VD5-TP
ManufacturerMCC
DescriptionTVS SOD-523
PackageSOD-523
CategoryDiodes & Transistors / TVS & Zener Diodes
Reference priceUS$0.022
Min. order1 pcs
AvailabilityIn stock
Reference stock45 pcs

ESD12VD5-TP price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.022In stock
10 pcs and upUS$0.017In stock
30 pcs and upUS$0.015In stock
100 pcs and upUS$0.013In stock

ESD12VD5-TP specifications

Clamping Voltage25V
Peak Pulse Current (Ipp)9.6A
Peak Pulse Power Dissipation (Ppp)240W
Voltage - Breakdown14.1V
Reverse Stand-Off Voltage (Vrwm)12V
Operating Temperature-55℃~+150℃
typeESD
Reverse Leakage Current (Ir)20nA

About the TVS SOD-523

ESD12VD5-TP is MCC's TVS SOD-523. It clamps a rail or signal during a transient, protecting the parts behind it from ESD and surge events. Choose by stand-off voltage, breakdown voltage and peak pulse power - the stand-off voltage has to sit above the normal rail, and the clamp voltage below what the protected part can take. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

ESD12VD5-TP — frequently asked questions

Is ESD12VD5-TP in stock?

Reference availability: 45 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does ESD12VD5-TP cost?

Reference unit price is US$0.022, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.022, 10 pcs and up: US$0.017, 30 pcs and up: US$0.015, 100 pcs and up: US$0.013. Send us your required quantity for a firm quotation.

What package and brand is ESD12VD5-TP?

ESD12VD5-TP is manufactured by MCC in a SOD-523 package, filed under Diodes & Transistors / TVS & Zener Diodes. ESD12VD5-TP is MCC's TVS SOD-523. It clamps a rail or signal during a transient, protecting the parts behind it from ESD and surge events. Choose by stand-off voltage, breakdown voltage and peak pulse power - the stand-off voltage has to sit above the normal rail, and the clamp voltage below what the protected part can take. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for ESD12VD5-TP?

The minimum order quantity for ESD12VD5-TP is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for ESD12VD5-TP?

Yes. Send us the original part number or the key parameters (Clamping Voltage, Peak Pulse Current (Ipp), Peak Pulse Power Dissipation (Ppp)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for ESD12VD5-TP?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
