Diodes & Transistors TVS & Zener Diodes · DIODES

P4SMAJ24ADF-13 · TVS

P4SMAJ24ADF-13 (TVS from DIODES) comes in a D-FLAT package. Reference unit price: US$0.219, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

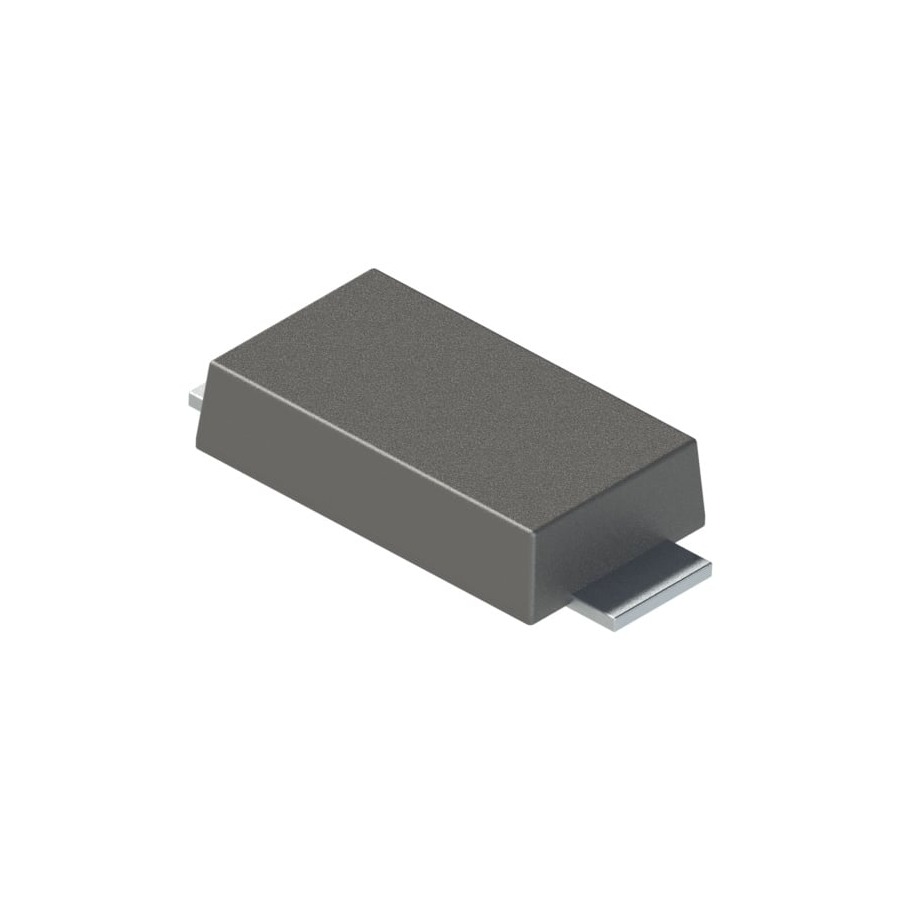

P4SMAJ24ADF-13 TVS
Part numberP4SMAJ24ADF-13
ManufacturerDIODES
DescriptionTVS
PackageD-FLAT
CategoryDiodes & Transistors / TVS & Zener Diodes
Reference priceUS$0.219
Min. order1 pcs
AvailabilityIn stock
Reference stock47 pcs

P4SMAJ24ADF-13 price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.219In stock
10 pcs and upUS$0.215In stock
30 pcs and upUS$0.211In stock
100 pcs and upUS$0.208In stock

P4SMAJ24ADF-13 specifications

Clamping Voltage38.9V
Peak Pulse Current (Ipp)10.3A@10/1000us
Peak Pulse Power Dissipation (Ppp)400W@10/1000us
Voltage - Breakdown29.5V
PolarityUnidirectional
Reverse Stand-Off Voltage (Vrwm)24V
Operating Temperature-55℃~+150℃
Number of Channels1
typeTVS

About the TVS

P4SMAJ24ADF-13 is DIODES's TVS D-FLAT. Typical use is ESD and surge protection on supply rails, IO lines and connector pins that see the outside world; the lower-voltage zeners do similar duty as a crude reference or clamp. Choose by stand-off voltage, breakdown voltage and peak pulse power - the stand-off voltage has to sit above the normal rail, and the clamp voltage below what the protected part can take. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

P4SMAJ24ADF-13 — frequently asked questions

Is P4SMAJ24ADF-13 in stock?

Reference availability: 47 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does P4SMAJ24ADF-13 cost?

Reference unit price is US$0.219, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.219, 10 pcs and up: US$0.215, 30 pcs and up: US$0.211, 100 pcs and up: US$0.208. Send us your required quantity for a firm quotation.

What package and brand is P4SMAJ24ADF-13?

P4SMAJ24ADF-13 is manufactured by DIODES in a D-FLAT package, filed under Diodes & Transistors / TVS & Zener Diodes. P4SMAJ24ADF-13 is DIODES's TVS D-FLAT. Typical use is ESD and surge protection on supply rails, IO lines and connector pins that see the outside world; the lower-voltage zeners do similar duty as a crude reference or clamp. Choose by stand-off voltage, breakdown voltage and peak pulse power - the stand-off voltage has to sit above the normal rail, and the clamp voltage below what the protected part can take. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for P4SMAJ24ADF-13?

The minimum order quantity for P4SMAJ24ADF-13 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for P4SMAJ24ADF-13?

Yes. Send us the original part number or the key parameters (Clamping Voltage, Peak Pulse Current (Ipp), Peak Pulse Power Dissipation (Ppp)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for P4SMAJ24ADF-13?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related TVS & Zener Diodes parts

Need P4SMAJ24ADF-13?

Genuine parts · small-batch trial runs · full BOM kitting

How to order P4SMAJ24ADF-13

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
