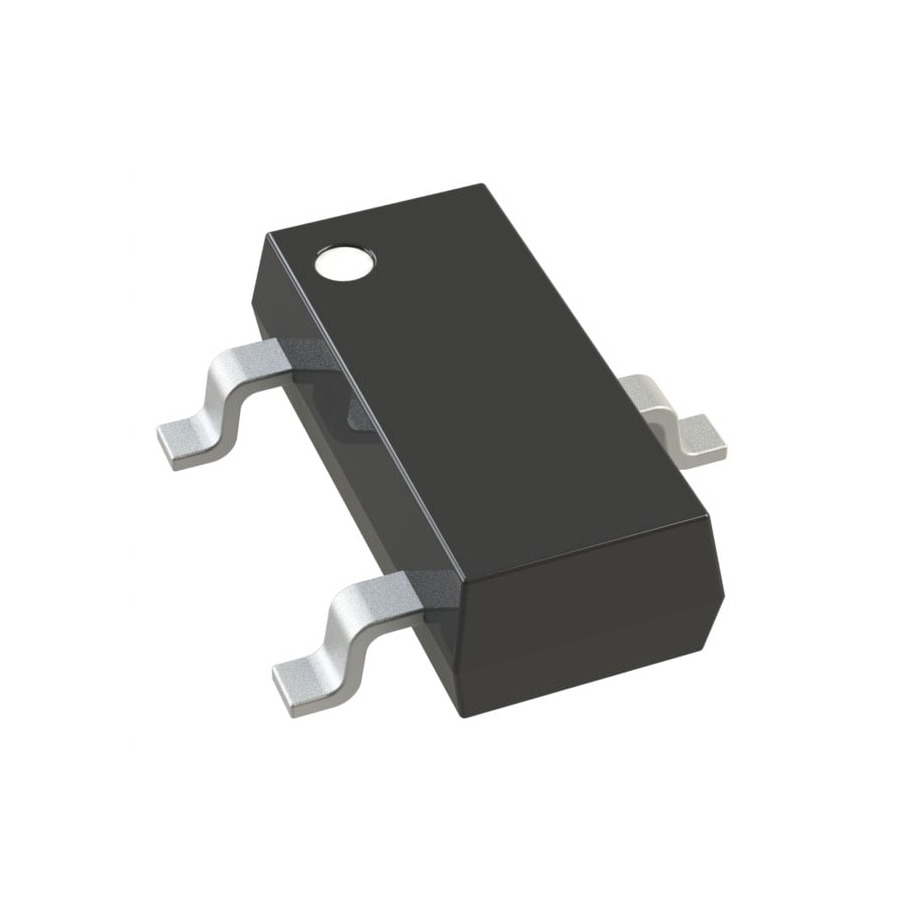

AZ23C5V1Q-7-F · TVS SOT-23
AZ23C5V1Q-7-F (TVS SOT-23 from Diodes Incorporated) comes in a SOT-23 package. Reference unit price: ¥0.6121, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | AZ23C5V1Q-7-F |
| Manufacturer | Diodes Incorporated |
| Description | TVS SOT-23 |
| Package | SOT-23 |
| Category | Diodes & Transistors / TVS & Zener Diodes |
| Reference price | ¥¥0.6121 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 419 pcs |
AZ23C5V1Q-7-F tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥0.6121 | In stock |
| 9000 pcs and up | ¥0.5218 | In stock |
AZ23C5V1Q-7-F specifications
| Diode Configuration | 1 Pair Common Anode |
| Zener Voltage(Range) | 4.8V~5.4V |
| Pd - Power Dissipation | 300mW |
| Zener Voltage(Nom) | 5.1V |
| Operating Junction Temperature Range | -65℃~+150℃ |
| Reverse Leakage Current (Ir) | 100nA@800mV |
| Impedance(Zzt) | 60Ω |
| Impedance(Zzk) | 480Ω |
About the TVS SOT-23
Diodes Incorporated Zener Diode Array 1 Pair Common Anode 5.1 V 300 mW ±5.88% SOT-23-3. In stock — 419 pcs available.
AZ23C5V1Q-7-F — frequently asked questions
Reference availability: 419 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥0.6121, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥0.6121, 9000 pcs and up: ¥0.5218. Send us your required quantity for a firm quotation.
AZ23C5V1Q-7-F is manufactured by Diodes Incorporated in a SOT-23 package, filed under Diodes & Transistors / TVS & Zener Diodes. Diodes Incorporated Zener Diode Array 1 Pair Common Anode 5.1 V 300 mW ±5.88% SOT-23-3. In stock — 419 pcs available.
The minimum order quantity for AZ23C5V1Q-7-F is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Diode Configuration, Zener Voltage(Range), Pd - Power Dissipation) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
