Diodes & Transistors TVS & Zener Diodes · Littelfuse

AQHV15-01LTG-C · TVS SOD-523

AQHV15-01LTG-C (TVS SOD-523 from Littelfuse) comes in a SOD-523 package. Reference unit price: US$0.279, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

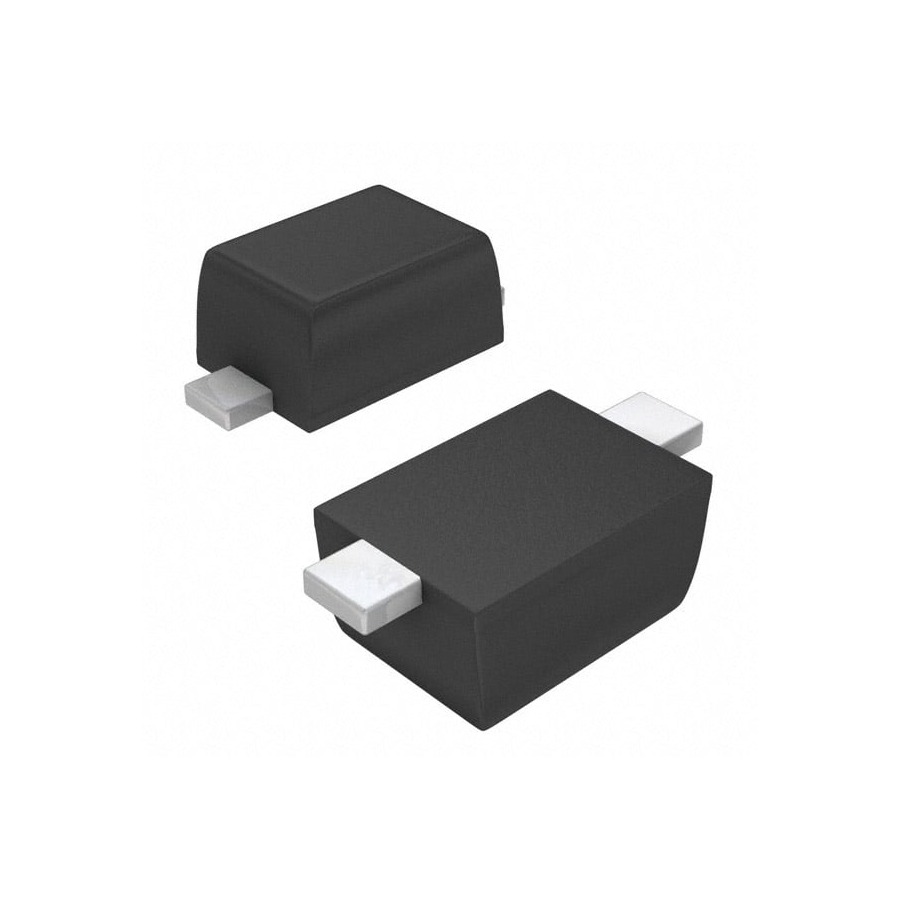

AQHV15-01LTG-C TVS SOD-523
Part numberAQHV15-01LTG-C
ManufacturerLittelfuse
DescriptionTVS SOD-523
PackageSOD-523
CategoryDiodes & Transistors / TVS & Zener Diodes
Reference priceUS$0.279
Min. order1 pcs
AvailabilityIn stock
Reference stock23 pcs

AQHV15-01LTG-C price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.279In stock
10 pcs and upUS$0.221In stock
30 pcs and upUS$0.196In stock

AQHV15-01LTG-C specifications

Clamping Voltage37V
Peak Pulse Current (Ipp)7A@8/20us
Peak Pulse Power Dissipation (Ppp)300W
Voltage - Breakdown16.7V
PolarityBidirectional
Reverse Stand-Off Voltage (Vrwm)15V
Operating Temperature-40℃~+150℃
Number of Channels1
typeTVS

About the TVS SOD-523

AQHV15-01LTG-C is Littelfuse's TVS SOD-523. It clamps a rail or signal during a transient, protecting the parts behind it from ESD and surge events. Match stand-off voltage to the rail and check clamping voltage against what the protected IC can survive. A plain zener is fine as a reference or clamp but is not a surge-rated TVS. Availability, batch and lead time are confirmed on inquiry.

AQHV15-01LTG-C — frequently asked questions

Is AQHV15-01LTG-C in stock?

Reference availability: 23 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does AQHV15-01LTG-C cost?

Reference unit price is US$0.279, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.279, 10 pcs and up: US$0.221, 30 pcs and up: US$0.196. Send us your required quantity for a firm quotation.

What package and brand is AQHV15-01LTG-C?

AQHV15-01LTG-C is manufactured by Littelfuse in a SOD-523 package, filed under Diodes & Transistors / TVS & Zener Diodes. AQHV15-01LTG-C is Littelfuse's TVS SOD-523. It clamps a rail or signal during a transient, protecting the parts behind it from ESD and surge events. Match stand-off voltage to the rail and check clamping voltage against what the protected IC can survive. A plain zener is fine as a reference or clamp but is not a surge-rated TVS. Availability, batch and lead time are confirmed on inquiry.

What is the minimum order quantity for AQHV15-01LTG-C?

The minimum order quantity for AQHV15-01LTG-C is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for AQHV15-01LTG-C?

Yes. Send us the original part number or the key parameters (Clamping Voltage, Peak Pulse Current (Ipp), Peak Pulse Power Dissipation (Ppp)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for AQHV15-01LTG-C?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related TVS & Zener Diodes parts

Need AQHV15-01LTG-C?

Genuine parts · small-batch trial runs · full BOM kitting

How to order AQHV15-01LTG-C

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
