Diodes & Transistors MOSFETs · TOSHIBA

TK2R9E10PL,S1X · MOSFET TO-220

TK2R9E10PL,S1X (MOSFET TO-220 from TOSHIBA) comes in a TO-220 package. Reference unit price: US$6.76, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

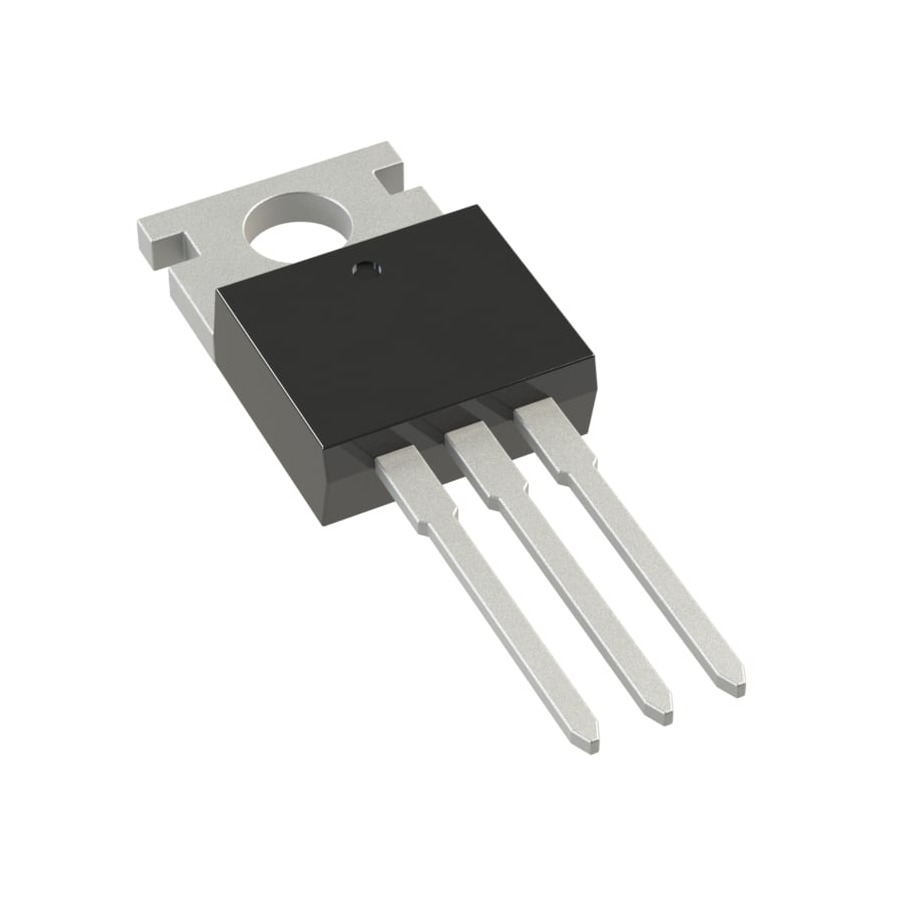

TK2R9E10PL,S1X MOSFET TO-220
Part numberTK2R9E10PL,S1X
ManufacturerTOSHIBA
DescriptionMOSFET TO-220
PackageTO-220
CategoryDiodes & Transistors / MOSFETs
Reference priceUS$6.76
Min. order1 pcs
AvailabilityIn stock
Reference stock3 pcs

TK2R9E10PL,S1X price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$6.76In stock
10 pcs and upUS$6.61In stock
50 pcs and upUS$6.51In stock

TK2R9E10PL,S1X specifications

Drain to Source Voltage100V
Current - Continuous Drain(Id)100A
Pd - Power Dissipation306W
On-Resistance2.9mΩ@10V
Number1 N-channel
Input Capacitance (Ciss)9.5nF
Gate Charge(Qg)161nC@10V
Gate Threshold Voltage (Vgs(th))2.5V

About the MOSFET TO-220

TK2R9E10PL,S1X is TOSHIBA's MOSFET TO-220. It is a switching MOSFET used as a load switch, a power-stage switch or a high-side / low-side control element. The gate drive voltage has to match the circuit: a logic-level part for 3.3 V or 5 V gates, a standard one only for 10 V rails. Verify Rds(on) and thermal headroom. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

TK2R9E10PL,S1X — frequently asked questions

Is TK2R9E10PL,S1X in stock?

Reference availability: 3 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does TK2R9E10PL,S1X cost?

Reference unit price is US$6.76, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$6.76, 10 pcs and up: US$6.61, 50 pcs and up: US$6.51. Send us your required quantity for a firm quotation.

What package and brand is TK2R9E10PL,S1X?

TK2R9E10PL,S1X is manufactured by TOSHIBA in a TO-220 package, filed under Diodes & Transistors / MOSFETs. TK2R9E10PL,S1X is TOSHIBA's MOSFET TO-220. It is a switching MOSFET used as a load switch, a power-stage switch or a high-side / low-side control element. The gate drive voltage has to match the circuit: a logic-level part for 3.3 V or 5 V gates, a standard one only for 10 V rails. Verify Rds(on) and thermal headroom. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for TK2R9E10PL,S1X?

The minimum order quantity for TK2R9E10PL,S1X is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for TK2R9E10PL,S1X?

Yes. Send us the original part number or the key parameters (Drain to Source Voltage, Current - Continuous Drain(Id), Pd - Power Dissipation) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for TK2R9E10PL,S1X?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related MOSFETs parts

Need TK2R9E10PL,S1X?

Genuine parts · small-batch trial runs · full BOM kitting

How to order TK2R9E10PL,S1X

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
