Diodes & Transistors MOSFETs · TOSHIBA

T2N7002AK,LM · MOSFET 60 V SOT-23-3

T2N7002AK,LM (MOSFET 60 V SOT-23-3 from TOSHIBA) comes in a SOT-23-3 package. Reference unit price: US$0.022, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

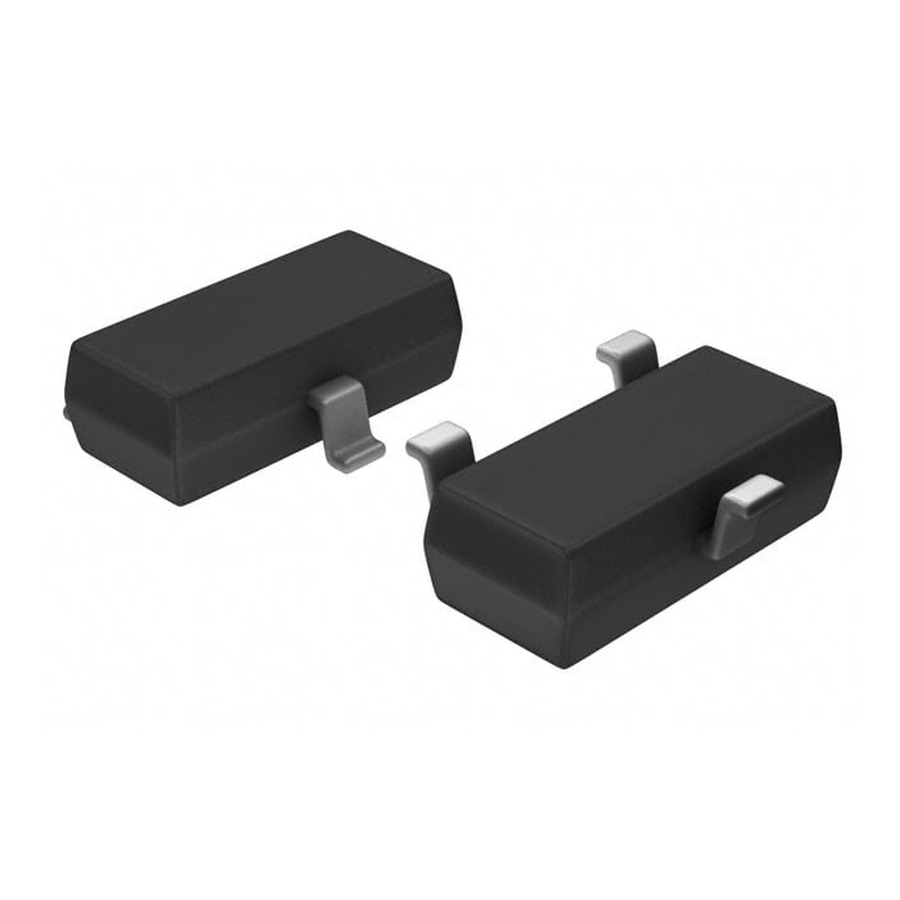

T2N7002AK,LM MOSFET 60 V SOT-23-3
Part numberT2N7002AK,LM
ManufacturerTOSHIBA
DescriptionMOSFET 60 V SOT-23-3
PackageSOT-23-3
CategoryDiodes & Transistors / MOSFETs
Reference priceUS$0.022
Min. order1 pcs
AvailabilityIn stock
Reference stock416 pcs

T2N7002AK,LM price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.022In stock
10 pcs and upUS$0.017In stock
30 pcs and upUS$0.014In stock
150 pcs and upUS$0.012In stock
450 pcs and upUS$0.011In stock
1050 pcs and upUS$0.010In stock

T2N7002AK,LM specifications

FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain-Source Voltage60 V
Current - Continuous Drain (Id) @ 25°C200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
On-Resistance3.9Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.35 nC @ 4.5 V
Vgs (Max)±20V

About the MOSFET 60 V SOT-23-3

T2N7002AK,LM is TOSHIBA's MOSFET 60 V SOT-23-3. It is a switching MOSFET used as a load switch, a power-stage switch or a high-side / low-side control element. The gate drive voltage has to match the circuit: a logic-level part for 3.3 V or 5 V gates, a standard one only for 10 V rails. Verify Rds(on) and thermal headroom. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

T2N7002AK,LM — frequently asked questions

Is T2N7002AK,LM in stock?

Reference availability: 416 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does T2N7002AK,LM cost?

Reference unit price is US$0.022, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.022, 10 pcs and up: US$0.017, 30 pcs and up: US$0.014, 150 pcs and up: US$0.012, 450 pcs and up: US$0.011, 1050 pcs and up: US$0.010. Send us your required quantity for a firm quotation.

What package and brand is T2N7002AK,LM?

T2N7002AK,LM is manufactured by TOSHIBA in a SOT-23-3 package, filed under Diodes & Transistors / MOSFETs. T2N7002AK,LM is TOSHIBA's MOSFET 60 V SOT-23-3. It is a switching MOSFET used as a load switch, a power-stage switch or a high-side / low-side control element. The gate drive voltage has to match the circuit: a logic-level part for 3.3 V or 5 V gates, a standard one only for 10 V rails. Verify Rds(on) and thermal headroom. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for T2N7002AK,LM?

The minimum order quantity for T2N7002AK,LM is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for T2N7002AK,LM?

Yes. Send us the original part number or the key parameters (FET Type, Technology, Drain-Source Voltage) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for T2N7002AK,LM?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related MOSFETs parts

Need T2N7002AK,LM?

Genuine parts · small-batch trial runs · full BOM kitting

How to order T2N7002AK,LM

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
