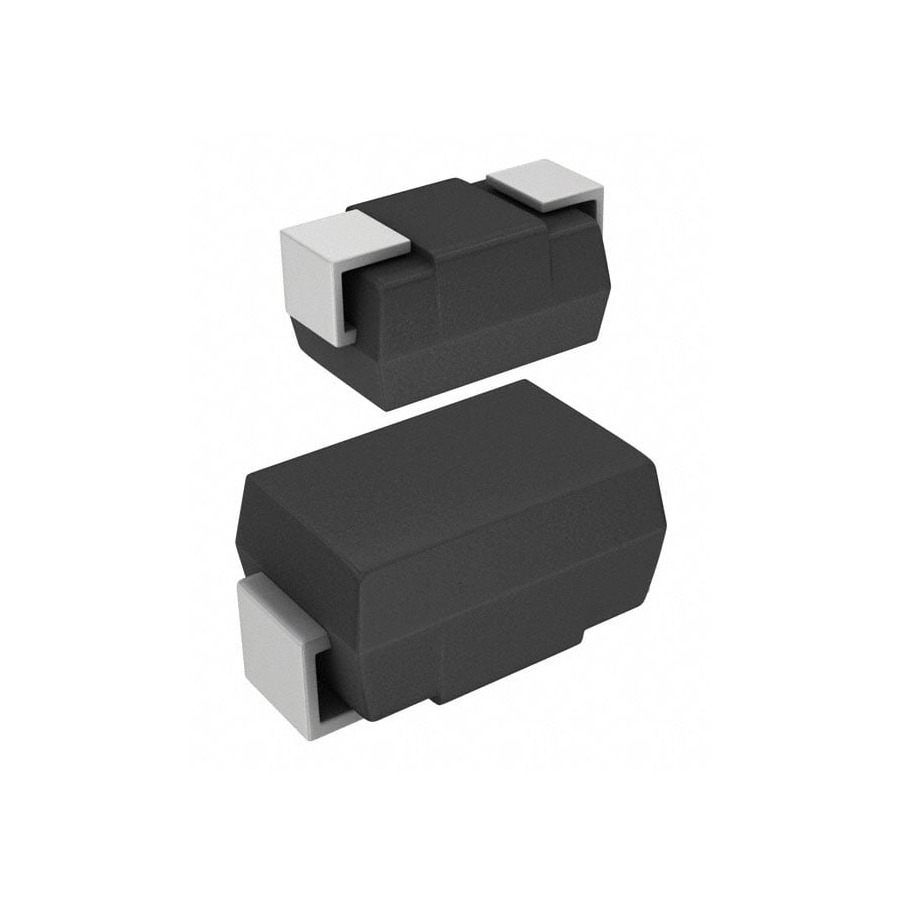

SS14L_R1_00001 · Schottky Diode DO-214AC, SMA
SS14L_R1_00001 (Schottky Diode DO-214AC, SMA from PANJIT) comes in a DO-214AC, SMA package. Reference unit price: US$0.064, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

| Part number | SS14L_R1_00001 |
| Manufacturer | PANJIT |
| Description | Schottky Diode DO-214AC, SMA |
| Package | DO-214AC, SMA |
| Category | Diodes & Transistors / Schottky Diodes |
| Reference price | US$0.064 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 33 pcs |
SS14L_R1_00001 price and stock (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | US$0.064 | In stock |
| 10 pcs and up | US$0.050 | In stock |
| 30 pcs and up | US$0.044 | In stock |
| 100 pcs and up | US$0.039 | In stock |
SS14L_R1_00001 specifications
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Forward Current | 1A |
| Voltage - Forward (Vf) (Max) @ If | 420 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 40 V |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 125°C |
About the Schottky Diode DO-214AC, SMA
SS14L_R1_00001 is PANJIT's Schottky Diode DO-214AC, SMA. It is used for freewheeling, secondary rectification and reverse-polarity protection where a low forward drop matters. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Availability, batch and lead time are confirmed on inquiry.
SS14L_R1_00001 — frequently asked questions
Reference availability: 33 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is US$0.064, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.064, 10 pcs and up: US$0.050, 30 pcs and up: US$0.044, 100 pcs and up: US$0.039. Send us your required quantity for a firm quotation.
SS14L_R1_00001 is manufactured by PANJIT in a DO-214AC, SMA package, filed under Diodes & Transistors / Schottky Diodes. SS14L_R1_00001 is PANJIT's Schottky Diode DO-214AC, SMA. It is used for freewheeling, secondary rectification and reverse-polarity protection where a low forward drop matters. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Availability, batch and lead time are confirmed on inquiry.
The minimum order quantity for SS14L_R1_00001 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Technology, Voltage - DC Reverse (Vr) (Max), Forward Current) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
Related Schottky Diodes parts
Genuine parts · small-batch trial runs · full BOM kitting
How to order SS14L_R1_00001
Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
