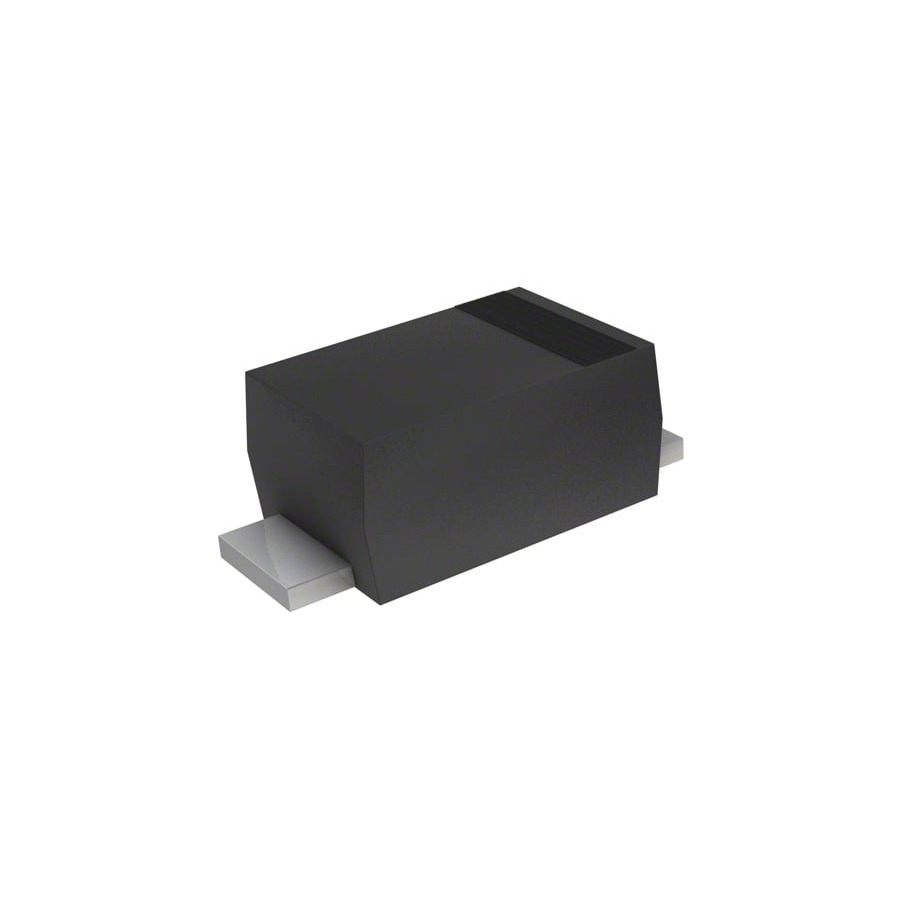

1N5819W · Schottky Diode 40V 1A

1N5819W (Schottky Diode 40V 1A from MDD) comes in a SOD-123 package. Reference unit price: US$0.0071, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

1N5819W Schottky Diode 40V 1A
Part number1N5819W
ManufacturerMDD
DescriptionSchottky Diode 40V 1A
PackageSOD-123
CategoryDiodes & Transistors / Schottky Diodes
Reference priceUS$0.0071
Min. order1 pcs
AvailabilityIn stock
Reference stock1,891 pcs

1N5819W price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.0071In stock
200 pcs and upUS$0.0071In stock
2000 pcs and upUS$0.0055In stock

1N5819W specifications

Reverse Voltage Rating40V
Forward Current1A
Voltage Drop0.45V
RoHSCompliant

About the Schottky Diode 40V 1A

The most widely used SMD Schottky diode: SOD-123, 40 V / 1 A, with a forward drop of only about 0.45 V. Its advantage over ordinary rectifiers is low drop and fast switching, suiting DC-DC freewheeling, secondary-side rectification, reverse-polarity protection and low-voltage high-current rectification (ideal on 5 V and 3.3 V rails). Three notes: (1) Schottky reverse leakage is higher than ordinary diodes and worsens with temperature - watch high-impedance or precision circuits; (2) 40 V leaves little margin on 24 V systems, so step up to a 60 V class part such as SS16/SS26; (3) SMD packages dissipate little heat, so check pad and copper area as current approaches 1 A. Alternatives: the SS14 (SMA, 1 A / 40 V) is a direct replacement and domestic equivalents are plentiful - verify package and forward drop first. Buying note: Schottky parts carry short marking codes and come from many batches; buy whole reels or original packaging, batch confirmed by quotation.

Replacement checks:
  • Compare the 40 V reverse-voltage rating with the highest reverse voltage in the circuit and retain transient margin. The 1 A forward-current figure does not replace peak-current and thermal calculations.
  • Calculate conduction loss from the 0.45 V drop at the actual forward current, review heat spreading through the SOD-123 footprint, and obtain the test current and temperature for that drop figure.
  • Verify cathode marking, polarity and footprint, then check reverse leakage over temperature. Use manufacturer curves or measured data when the required curves are not supplied.
Direct answer: 1N5819W is an MDD Schottky diode in a SOD-123 package. The values listed here are 40 V reverse voltage, 1 A forward current and 0.45 V voltage drop, with RoHS compliance. The 0.45 V figure does not state its test current or temperature, so replacement approval must still cover actual current, reverse voltage and temperature rise; package fit alone is not enough. Reviewed 2026-11-20

1N5819W — frequently asked questions

Is 1N5819W in stock?

Reference availability: 1,891 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does 1N5819W cost?

Reference unit price is US$0.0071, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.0071, 200 pcs and up: US$0.0071, 2000 pcs and up: US$0.0055. Send us your required quantity for a firm quotation.

What package and brand is 1N5819W?

1N5819W is manufactured by MDD in a SOD-123 package, filed under Diodes & Transistors / Schottky Diodes. The most widely used SMD Schottky diode: SOD-123, 40 V / 1 A, with a forward drop of only about 0.45 V. Its advantage over ordinary rectifiers is low drop and fast switching, suiting DC-DC freewheeling, secondary-side rectification, reverse-polarity protection and low-voltage high-current rectification (ideal on 5 V and 3.3 V rails). Three notes: (1) Schottky reverse leakage is higher than ordinary diodes and worsens with temperature - watch high-impedance or precision circuits; (2) 40 V leaves little margin on 24 V systems, so step up to a 60 V class part such as SS16/SS26; (3) SMD packages dissipate little heat, so check pad and copper area as current approaches 1 A. Alternatives: the SS14 (SMA, 1 A / 40 V) is a direct replacement and domestic equivalents are plentiful - verify package and forward drop first. Buying note: Schottky parts carry short marking codes and come from many batches; buy whole reels or original packaging, batch confirmed by quotation.

What is the minimum order quantity for 1N5819W?

The minimum order quantity for 1N5819W is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for 1N5819W?

Yes. Send us the original part number or the key parameters (Reverse Voltage Rating, Forward Current, Voltage Drop) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for 1N5819W?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
