Diodes & Transistors Schottky Diodes · VISHAY

SS14-M3/5AT · Schottky Diode DO-214AC(SMA)

SS14-M3/5AT (Schottky Diode DO-214AC(SMA) from VISHAY) comes in a DO-214AC(SMA) package. Reference unit price: US$0.190, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

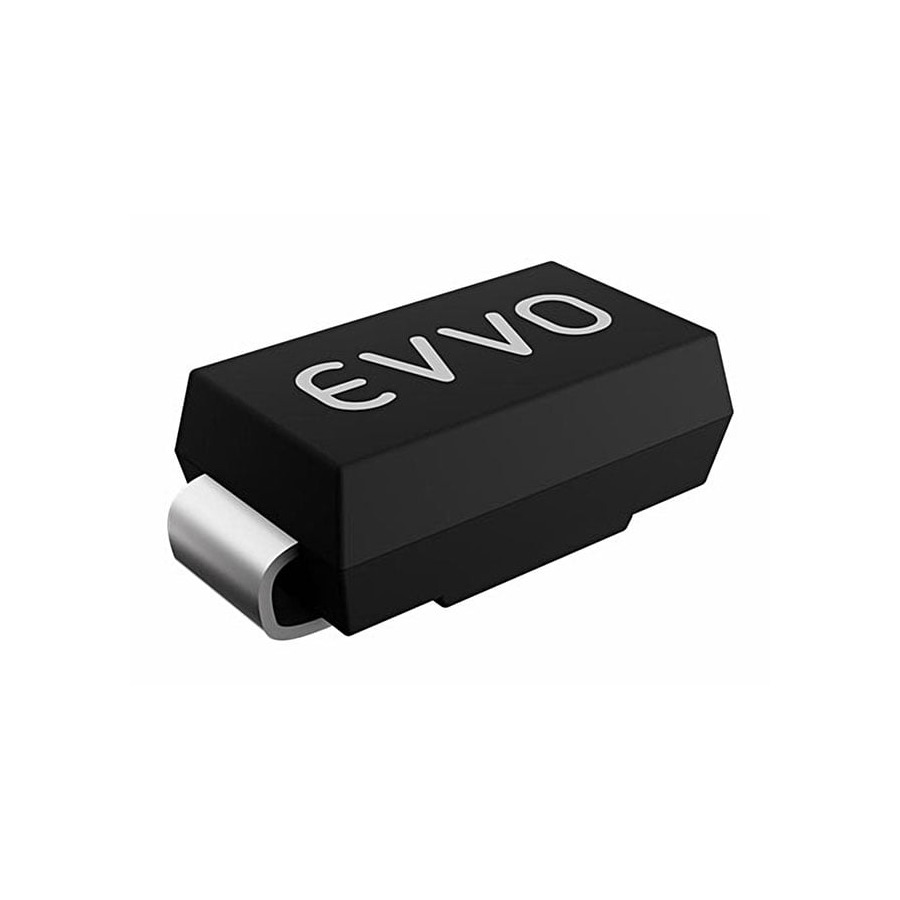

SS14-M3/5AT Schottky Diode DO-214AC(SMA)
Part numberSS14-M3/5AT
ManufacturerVISHAY
DescriptionSchottky Diode DO-214AC(SMA)
PackageDO-214AC(SMA)
CategoryDiodes & Transistors / Schottky Diodes
Reference priceUS$0.190
Min. order1 pcs
AvailabilityIn stock
Reference stock18 pcs

SS14-M3/5AT price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.190In stock
10 pcs and upUS$0.150In stock
30 pcs and upUS$0.133In stock

SS14-M3/5AT specifications

Diode Configuration1 Independent
Voltage - DC Reverse (Vr) (Max)40V
Voltage - Forward(Vf)500mV@1A
Current - Rectified1A
Reverse Leakage Current (Ir)200uA@40V

About the Schottky Diode DO-214AC(SMA)

SS14-M3/5AT is VISHAY's Schottky Diode DO-214AC(SMA). Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

SS14-M3/5AT — frequently asked questions

Is SS14-M3/5AT in stock?

Reference availability: 18 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does SS14-M3/5AT cost?

Reference unit price is US$0.190, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.190, 10 pcs and up: US$0.150, 30 pcs and up: US$0.133. Send us your required quantity for a firm quotation.

What package and brand is SS14-M3/5AT?

SS14-M3/5AT is manufactured by VISHAY in a DO-214AC(SMA) package, filed under Diodes & Transistors / Schottky Diodes. SS14-M3/5AT is VISHAY's Schottky Diode DO-214AC(SMA). Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for SS14-M3/5AT?

The minimum order quantity for SS14-M3/5AT is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for SS14-M3/5AT?

Yes. Send us the original part number or the key parameters (Diode Configuration, Voltage - DC Reverse (Vr) (Max), Voltage - Forward(Vf)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for SS14-M3/5AT?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Schottky Diodes parts

Need SS14-M3/5AT?

Genuine parts · small-batch trial runs · full BOM kitting

How to order SS14-M3/5AT

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
