SBAW56LT1G · DIODE ARRAY GP 70V 200MA SOT23-3

SBAW56LT1G (DIODE ARRAY GP 70V 200MA SOT23-3 from onsemi) comes in a TO-236-3, SC-59, SOT-23-3 package. Reference unit price: US$0.037, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

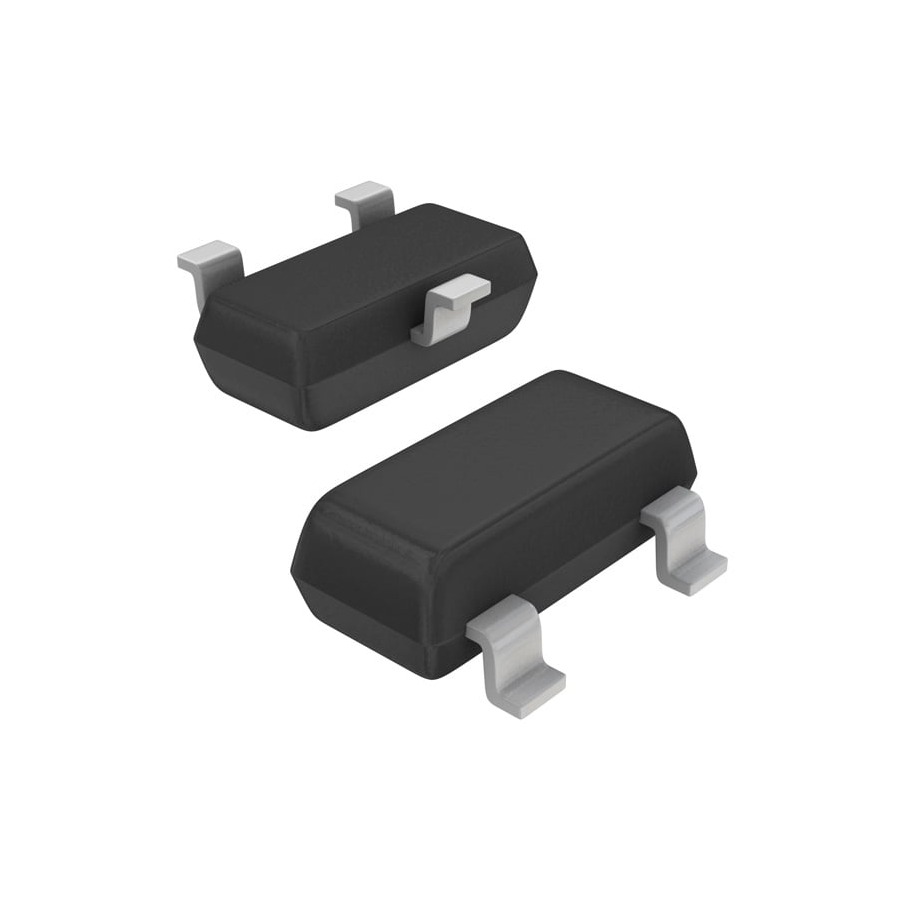

SBAW56LT1G DIODE ARRAY GP 70V 200MA SOT23-3
Part numberSBAW56LT1G
Manufactureronsemi
DescriptionDIODE ARRAY GP 70V 200MA SOT23-3
PackageTO-236-3, SC-59, SOT-23-3
CategoryDiodes & Transistors / Schottky Diodes
Reference priceUS$0.037
Min. order1 pcs
AvailabilityIn stock
Reference stock5,105 pcs

SBAW56LT1G price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.037In stock
10 pcs and upUS$0.029In stock
30 pcs and upUS$0.025In stock
300 pcs and upUS$0.019In stock
600 pcs and upUS$0.017In stock
900 pcs and upUS$0.016In stock

SBAW56LT1G specifications

Diode Configuration1 Pair Common Anode
TechnologyStandard
Voltage - DC Reverse (Vr) (Max)70 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)6 ns
Current - Reverse Leakage @ Vr2.5 µA @ 70 V
Operating Temperature - Junction-55°C ~ 150°C

About the DIODE ARRAY GP 70V 200MA SOT23-3

SBAW56LT1G is onsemi's DIODE ARRAY GP 70V 200MA SOT23-3, TO-236-3, SC-59, SOT-23-3 package. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. The trade-off is leakage: Schottky reverse leakage is much higher than an ordinary diode and grows with temperature. Also check the reverse voltage against the rail - 40 V is tight on a 24 V system. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.
