SBAT54SLT1G · DIODE ARR SCHOTT 30V 200MA SOT23

SBAT54SLT1G (DIODE ARR SCHOTT 30V 200MA SOT23 from onsemi) comes in a TO-236-3, SC-59, SOT-23-3 package. Reference unit price: US$0.065, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

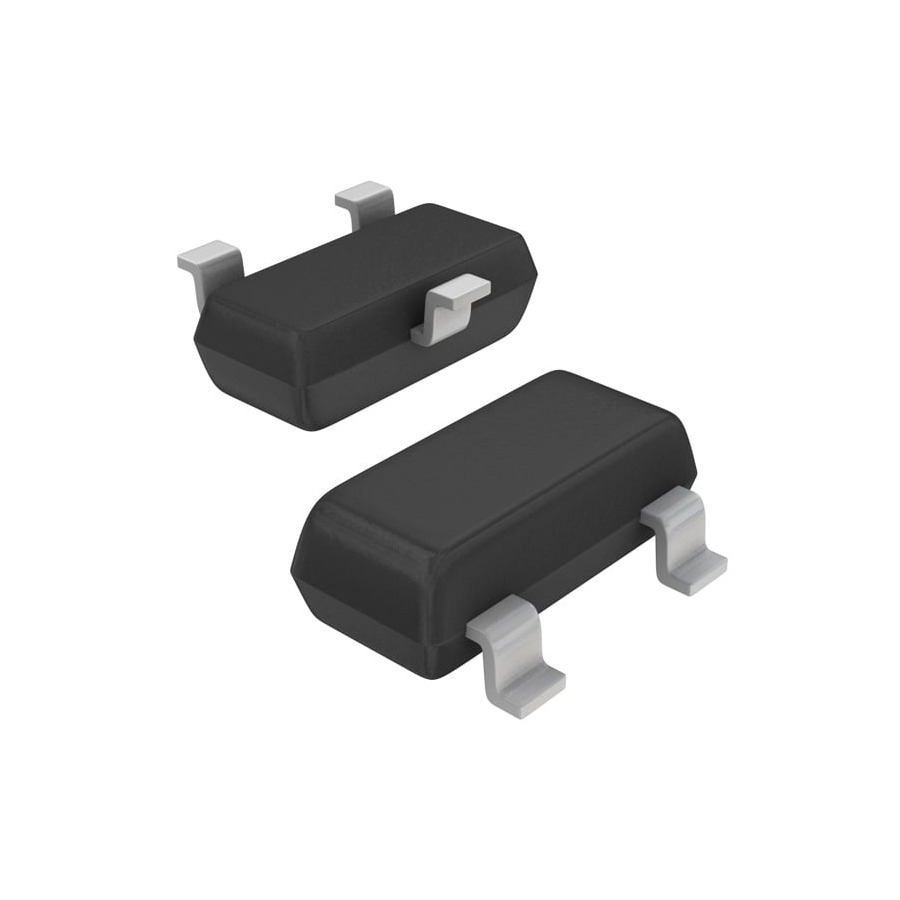

SBAT54SLT1G DIODE ARR SCHOTT 30V 200MA SOT23
Part numberSBAT54SLT1G
Manufactureronsemi
DescriptionDIODE ARR SCHOTT 30V 200MA SOT23
PackageTO-236-3, SC-59, SOT-23-3
CategoryDiodes & Transistors / Schottky Diodes
Reference priceUS$0.065
Min. order1 pcs
AvailabilityIn stock
Reference stock174 pcs

SBAT54SLT1G price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.065In stock
10 pcs and upUS$0.052In stock
30 pcs and upUS$0.046In stock
100 pcs and upUS$0.041In stock

SBAT54SLT1G specifications

Diode Configuration1 Pair Series Connection
TechnologySchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Operating Temperature - Junction-55°C ~ 150°C

About the DIODE ARR SCHOTT 30V 200MA SOT23

SBAT54SLT1G is onsemi's DIODE ARR SCHOTT 30V 200MA SOT23, TO-236-3, SC-59, SOT-23-3 package. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

SBAT54SLT1G — frequently asked questions

Is SBAT54SLT1G in stock?

Reference availability: 174 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does SBAT54SLT1G cost?

Reference unit price is US$0.065, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.065, 10 pcs and up: US$0.052, 30 pcs and up: US$0.046, 100 pcs and up: US$0.041. Send us your required quantity for a firm quotation.

What package and brand is SBAT54SLT1G?

SBAT54SLT1G is manufactured by onsemi in a TO-236-3, SC-59, SOT-23-3 package, filed under Diodes & Transistors / Schottky Diodes. SBAT54SLT1G is onsemi's DIODE ARR SCHOTT 30V 200MA SOT23, TO-236-3, SC-59, SOT-23-3 package. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for SBAT54SLT1G?

The minimum order quantity for SBAT54SLT1G is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for SBAT54SLT1G?

Yes. Send us the original part number or the key parameters (Diode Configuration, Technology, Voltage - DC Reverse (Vr) (Max)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for SBAT54SLT1G?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Schottky Diodes parts

Need SBAT54SLT1G?

Genuine parts · small-batch trial runs · full BOM kitting

How to order SBAT54SLT1G

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
