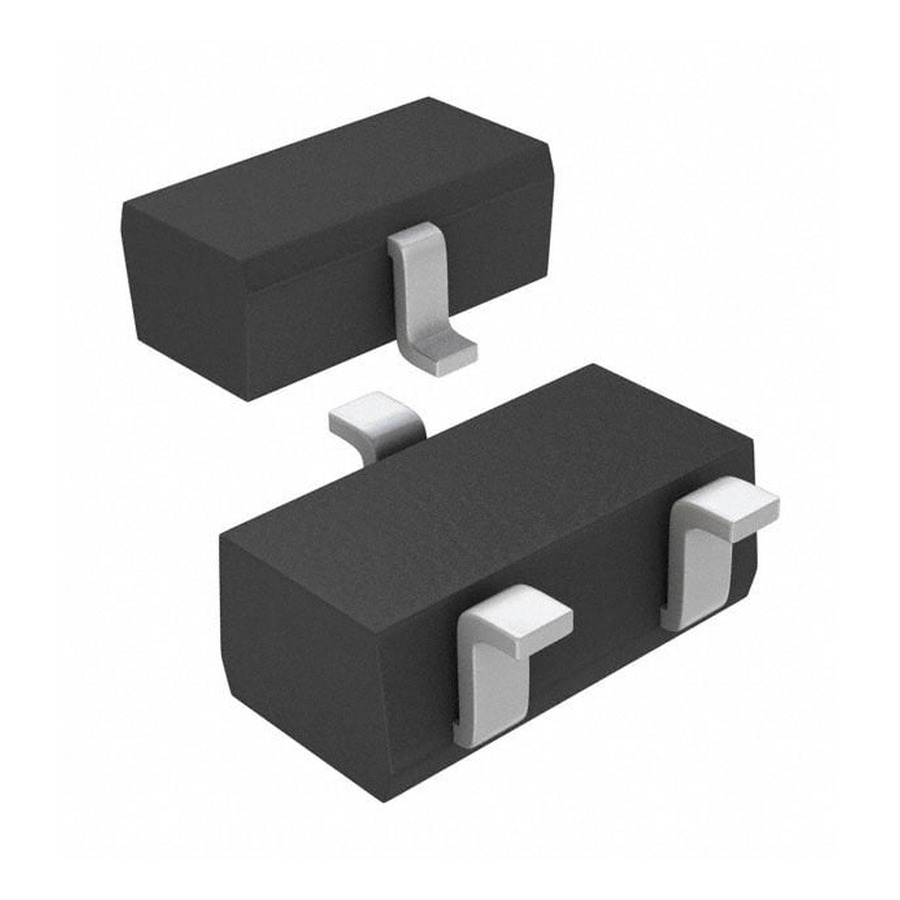

PJA138K_R1_00001 · MOSFET 50 V SOT-23
PJA138K_R1_00001 (MOSFET 50 V SOT-23 from Panjit International Inc.) comes in a SOT-23 package. Reference unit price: ¥0.0421, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | PJA138K_R1_00001 |
| Manufacturer | Panjit International Inc. |
| Description | MOSFET 50 V SOT-23 |
| Package | SOT-23 |
| Category | Diodes & Transistors / MOSFETs |
| Reference price | ¥¥0.0421 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 14,181 pcs |
PJA138K_R1_00001 tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥0.0421 | In stock |
| 500 pcs and up | ¥0.0296 | In stock |
| 5000 pcs and up | ¥0.0236 | In stock |
PJA138K_R1_00001 specifications
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain-Source Voltage | 50 V |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| On-Resistance | 1.6Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1 nC @ 4.5 V |
| Vgs (Max) | ±20V |
About the MOSFET 50 V SOT-23
Panjit International Inc. N-Channel 50 V 500mA (Ta) 500mW (Ta) Surface Mount SOT-23. In stock — 14,181 pcs available.
PJA138K_R1_00001 — frequently asked questions
Reference availability: 14,181 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥0.0421, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥0.0421, 500 pcs and up: ¥0.0296, 5000 pcs and up: ¥0.0236. Send us your required quantity for a firm quotation.
PJA138K_R1_00001 is manufactured by Panjit International Inc. in a SOT-23 package, filed under Diodes & Transistors / MOSFETs. Panjit International Inc. N-Channel 50 V 500mA (Ta) 500mW (Ta) Surface Mount SOT-23. In stock — 14,181 pcs available.
The minimum order quantity for PJA138K_R1_00001 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (FET Type, Technology, Drain-Source Voltage) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
