Diodes & Transistors MOSFETs · onsemi

NTGS5120PT1G · MOSFET TSOP-6

NTGS5120PT1G (MOSFET TSOP-6 from onsemi) comes in a TSOP-6 package. Reference unit price: US$0.342, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

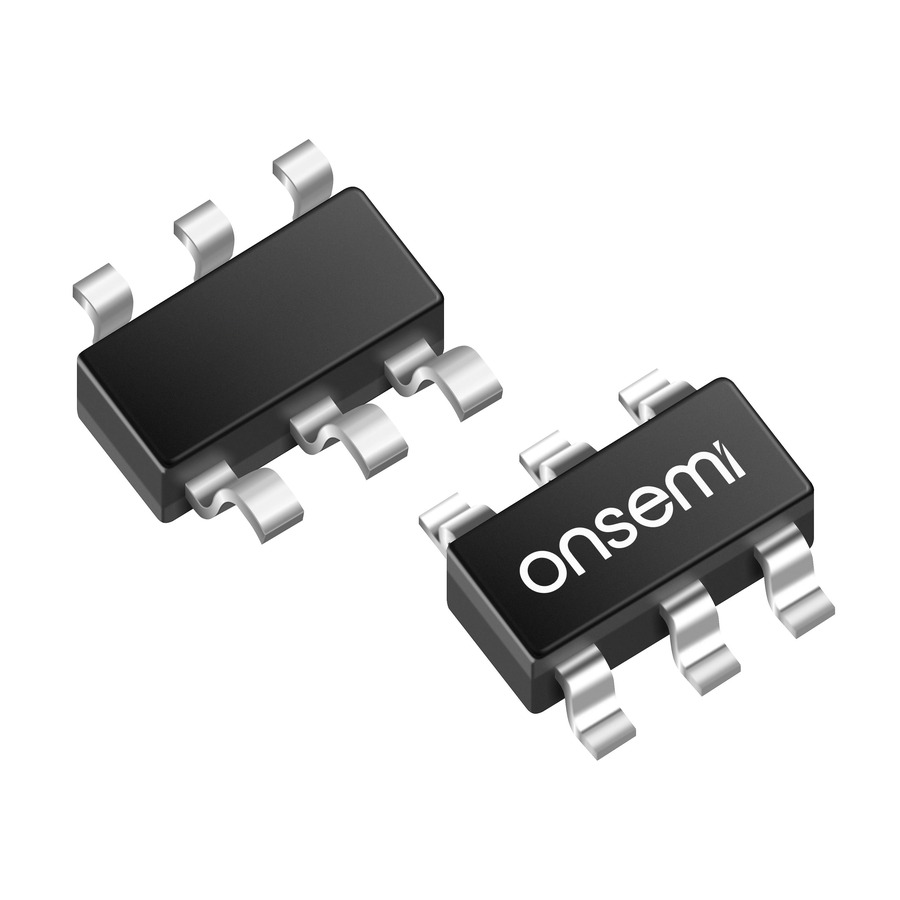

NTGS5120PT1G MOSFET TSOP-6
Part numberNTGS5120PT1G
Manufactureronsemi
DescriptionMOSFET TSOP-6
PackageTSOP-6
CategoryDiodes & Transistors / MOSFETs
Reference priceUS$0.342
Min. order1 pcs
AvailabilityIn stock
Reference stock149 pcs

NTGS5120PT1G price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.342In stock
10 pcs and upUS$0.283In stock
30 pcs and upUS$0.257In stock
100 pcs and upUS$0.225In stock
600 pcs and upUS$0.211In stock
1200 pcs and upUS$0.203In stock

NTGS5120PT1G specifications

Pd - Power Dissipation1.4W
Drain to Source Voltage60V
Current - Continuous Drain(Id)2.9A
On-Resistance142mΩ@4.5V
Number1 P-Channel
TypeP-Channel
Output Capacitance(Coss)72pF
Input Capacitance (Ciss)942pF
Operating Temperature-55℃~+150℃

About the MOSFET TSOP-6

NTGS5120PT1G is onsemi's MOSFET TSOP-6. It is a switching MOSFET used as a load switch, a power-stage switch or a high-side / low-side control element. The gate drive voltage has to match the circuit: a logic-level part for 3.3 V or 5 V gates, a standard one only for 10 V rails. Verify Rds(on) and thermal headroom. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

NTGS5120PT1G — frequently asked questions

Is NTGS5120PT1G in stock?

Reference availability: 149 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does NTGS5120PT1G cost?

Reference unit price is US$0.342, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.342, 10 pcs and up: US$0.283, 30 pcs and up: US$0.257, 100 pcs and up: US$0.225, 600 pcs and up: US$0.211, 1200 pcs and up: US$0.203. Send us your required quantity for a firm quotation.

What package and brand is NTGS5120PT1G?

NTGS5120PT1G is manufactured by onsemi in a TSOP-6 package, filed under Diodes & Transistors / MOSFETs. NTGS5120PT1G is onsemi's MOSFET TSOP-6. It is a switching MOSFET used as a load switch, a power-stage switch or a high-side / low-side control element. The gate drive voltage has to match the circuit: a logic-level part for 3.3 V or 5 V gates, a standard one only for 10 V rails. Verify Rds(on) and thermal headroom. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for NTGS5120PT1G?

The minimum order quantity for NTGS5120PT1G is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for NTGS5120PT1G?

Yes. Send us the original part number or the key parameters (Pd - Power Dissipation, Drain to Source Voltage, Current - Continuous Drain(Id)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for NTGS5120PT1G?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related MOSFETs parts

Need NTGS5120PT1G?

Genuine parts · small-batch trial runs · full BOM kitting

How to order NTGS5120PT1G

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
