NEO-M8J-0 · NEO-M8J Multi-Constellation GNSS Module

NEO-M8J-0 is a multi-constellation GNSS module in an LCC-24 package. It supports GPS, BDS, GLONASS, Galileo and QZSS, lists 2.5 m horizontal accuracy, -164 dBm sensitivity and about 26 s cold TTFF, and exposes UART, I2C, USB, SPI and GPIO. Confirm the antenna design, RF keep-out, backup supply, protocol and certification; do not treat it as a verified RTK solution.

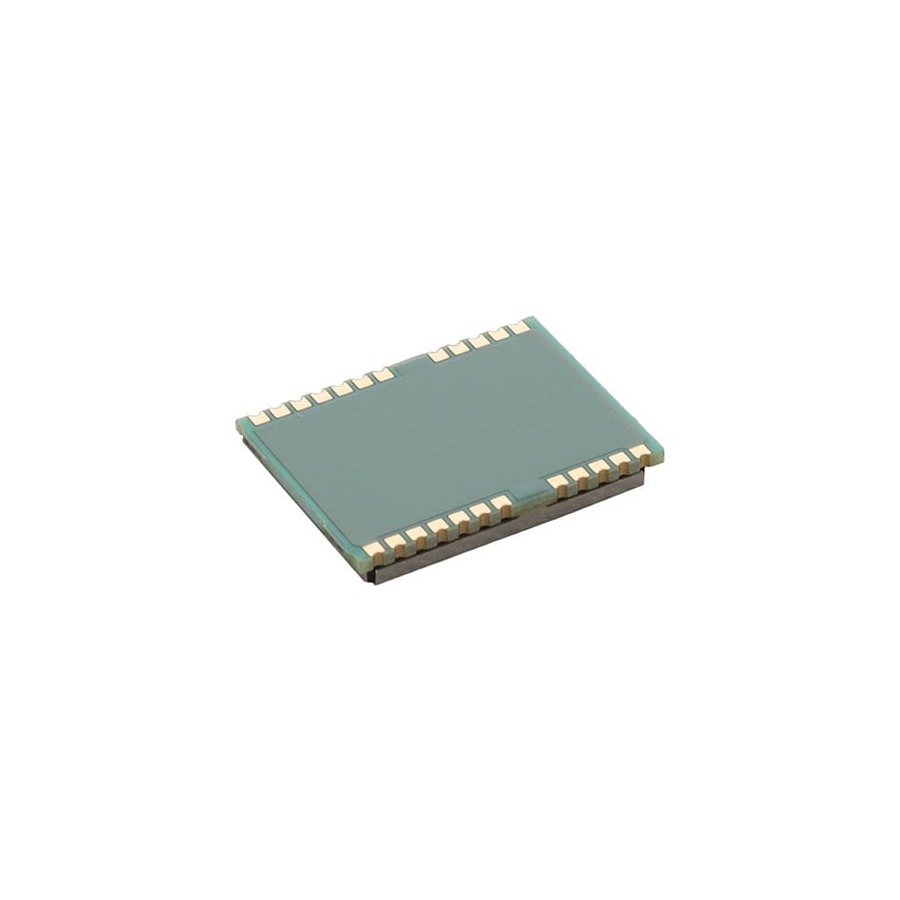

NEO-M8J-0 NEO-M8J Multi-Constellation GNSS Module
Part numberNEO-M8J-0
Manufactureru-blox
DescriptionNEO-M8J Multi-Constellation GNSS Module
PackageLCC-24(12.2x16)
CategoryModules & Dev Boards / Function Modules
Reference priceUS$21.83
Min. order1 pcs
AvailabilityIn stock
Reference stock3 pcs

NEO-M8J-0 price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$21.83In stock
10 pcs and upUS$21.29In stock

NEO-M8J-0 specifications

-bit2.5m
Sensitivity-164dBm
Operating Voltage2.7V~3.6V
Operating Temperature-40℃~+85℃
- -bit (TTFF26s
GNSS TypeGPS;BDS;GLONASS;Galileo;QZSS
Interface TypeUART;I2C;USB;SPI;GPIO
FeaturesHot start acceleration

About the NEO-M8J Multi-Constellation GNSS Module

NEO-M8J-0 is a u-blox LCC-24 multi-constellation GNSS module supporting GPS, BDS, GLONASS, Galileo and QZSS. The listing shows 2.7-3.6 V operation, -40 to 85 C, 2.5 m horizontal position accuracy, -164 dBm sensitivity, about 26 s cold-start time to first fix, and UART, I2C, USB, SPI and GPIO interfaces. It is intended for general positioning and timing products; the listing does not establish an RTK centimetre-level capability. Hardware checks include the antenna, RF routing, ground plane, supply noise, backup domain and ESD. Purchasing must also confirm the exact ordering code, firmware/protocol needs and required certification rather than substituting by the NEO-M8 family name.

Replacement checks:
  • Verify the 2.7-3.6 V supply, RF transients and ground plane, and lay out the antenna, feed and matching network according to the hardware integration guidance.
  • Check active or passive antenna choice, bias and detection, connector and cable loss. Do not copy an older board when these details are absent from the listing.
  • Confirm cold and hot-start behavior, backup-domain power and timing requirements. The 26 s figure is a cold TTFF, not a guarantee that every position fix completes within 26 s.
  • Confirm the complete ordering code, firmware, output protocol and required market certification. Other NEO-M8 variants are not interchangeable from the series name alone.
Direct answer: NEO-M8J-0 is a multi-constellation GNSS module supporting GPS, BDS, GLONASS, Galileo and QZSS. The listing shows 2.7-3.6 V, 2.5 m horizontal accuracy, -164 dBm sensitivity and about 26 s cold TTFF. It is intended for general positioning; the listing does not confirm RTK centimetre-level performance. Replacement checks include antenna, RF layout, backup domain, exact ordering code, protocol and certification. Reviewed 2026-11-20

NEO-M8J-0 — frequently asked questions

Is NEO-M8J-0 an RTK centimetre-level module?

The listing does not establish RTK capability. It records a multi-constellation GNSS receiver, 2.5 m horizontal accuracy and -164 dBm sensitivity. A centimetre-level RTK design needs a module explicitly specified for RTK plus a verified base/rover architecture.

Can the 2.5 m accuracy and 26 s TTFF be guaranteed for the complete product?

Not directly. Antenna, sky view, multipath, interference, startup state and test conditions all affect performance; the complete-product figures must be validated in the real enclosure and environment.

Can NEO-M8U-06B or another NEO-M8 variant replace it directly?

Not from the series name alone. Variants can differ in antenna support, dead reckoning, interfaces, firmware and certification. Compare the complete ordering code and hardware requirements.
