Modules & Dev Boards Function Modules · ESPRESSIF

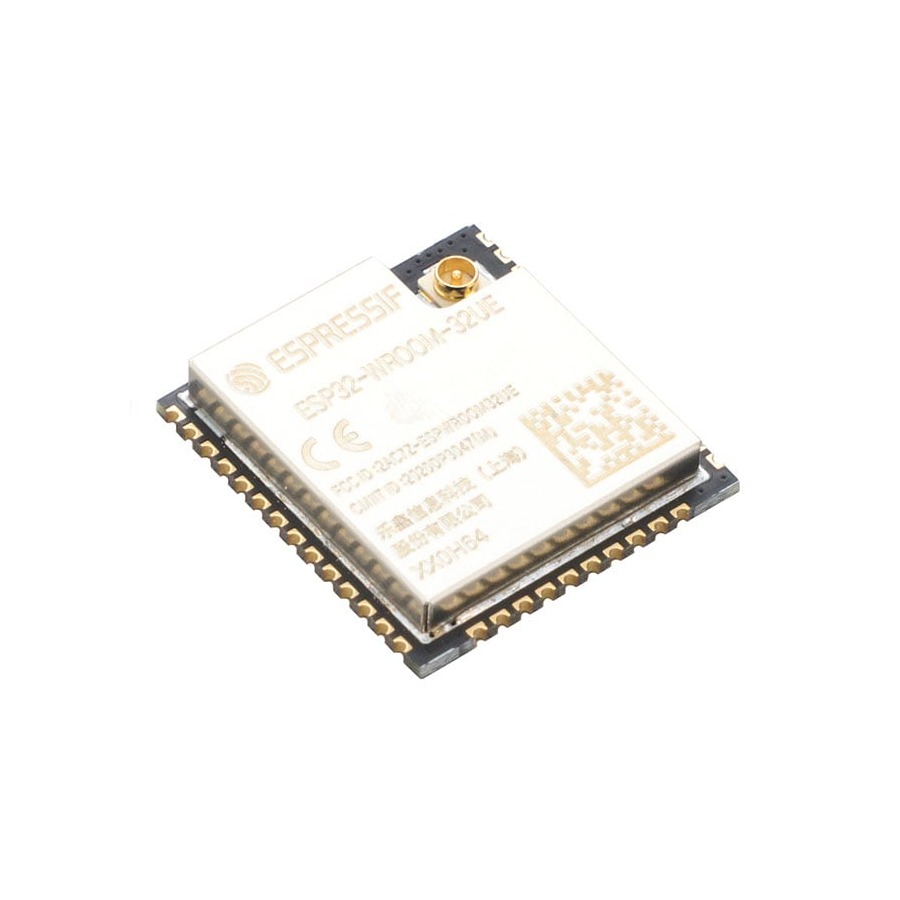

ESP32-WROOM-32UE-N8 · Function Module Bluetooth4.2 3V~3.6V SMD,19.2x18mm

ESP32-WROOM-32UE-N8 (Function Module Bluetooth4.2 3V~3.6V SMD,19.2x18mm from ESPRESSIF) comes in a SMD,19.2x18mm package. Reference unit price: US$3.72, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

ESP32-WROOM-32UE-N8 Function Module Bluetooth4.2 3V~3.6V SMD,19.2x18mm
Part numberESP32-WROOM-32UE-N8
ManufacturerESPRESSIF
DescriptionFunction Module Bluetooth4.2 3V~3.6V SMD,19.2x18mm
PackageSMD,19.2x18mm
CategoryModules & Dev Boards / Function Modules
Reference priceUS$3.72
Min. order1 pcs
AvailabilityIn stock
Reference stock1,074 pcs

ESP32-WROOM-32UE-N8 price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$3.72In stock
10 pcs and upUS$3.34In stock
30 pcs and upUS$3.12In stock
100 pcs and upUS$2.74In stock
650 pcs and upUS$2.61In stock
1300 pcs and upUS$2.56In stock

ESP32-WROOM-32UE-N8 specifications

Frequency Range2.4GHz
Sensitivity-92dBm
Operating Voltage3V~3.6V
Utilized IC / PartESP32-DOWD-V3;ESP32-DOWDR2-V3
Output Power20dBm
Wireless StandardBluetooth4.2
Receive Current112mA
Interface TypeI2C;I2S;SPI;UART;SDIO;GPIO;ADC;DAC;TWAI;
Operating Temperature-40℃~+85℃

About the Function Module Bluetooth4.2 3V~3.6V SMD,19.2x18mm

ESP32-WROOM-32UE-N8 is Espressif's ESP32 module with an external antenna connector: a U.FL jack and 8 MB of flash, with the dual-core Xtensa LX6 at 240 MHz inside, running from 3.0-3.6 V over -40 to +85 C. There are really only two reasons to pick it over the PCB-antenna part: the product has a metal enclosure that blocks the on-board antenna, or the antenna has to sit outside the case or some distance away - that is where the 32E is no longer enough. Programming and supply are identical to the 32E: UART0 plus the EN and BOOT pins, with the usual auto-download circuit, and enough headroom on the 3.3 V rail for the roughly 500 mA peaks. The antenna is where projects fail: keep the U.FL pigtail short and 50 ohm, leave clearance around the antenna, and use a 2.4 GHz part - a 433 MHz antenna will simply not receive. Check the suffix before ordering, because antenna type (PCB or external) and flash size (4 MB or 8 MB) vary across the family; the footprint is compatible but the part numbers are not interchangeable. Held in stock in Shenzhen; full reels or loose parts, batch confirmed on inquiry.

ESP32-WROOM-32UE-N8 — frequently asked questions

Is ESP32-WROOM-32UE-N8 in stock?

Reference availability: 1,074 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does ESP32-WROOM-32UE-N8 cost?

Reference unit price is US$3.72, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$3.72, 10 pcs and up: US$3.34, 30 pcs and up: US$3.12, 100 pcs and up: US$2.74, 650 pcs and up: US$2.61, 1300 pcs and up: US$2.56. Send us your required quantity for a firm quotation.

What package and brand is ESP32-WROOM-32UE-N8?

ESP32-WROOM-32UE-N8 is manufactured by ESPRESSIF in a SMD,19.2x18mm package, filed under Modules & Dev Boards / Function Modules. ESP32-WROOM-32UE-N8 is Espressif's ESP32 module with an external antenna connector: a U.FL jack and 8 MB of flash, with the dual-core Xtensa LX6 at 240 MHz inside, running from 3.0-3.6 V over -40 to +85 C. There are really only two reasons to pick it over the PCB-antenna part: the product has a metal enclosure that blocks the on-board antenna, or the antenna has to sit outside the case or some distance away - that is where the 32E is no longer enough. Programming and supply are identical to the 32E: UART0 plus the EN and BOOT pins, with the usual auto-download circuit, and enough headroom on the 3.3 V rail for the roughly 500 mA peaks. The antenna is where projects fail: keep the U.FL pigtail short and 50 ohm, leave clearance around the antenna, and use a 2.4 GHz part - a 433 MHz antenna will simply not receive. Check the suffix before ordering, because antenna type (PCB or external) and flash size (4 MB or 8 MB) vary across the family; the footprint is compatible but the part numbers are not interchangeable. Held in stock in Shenzhen; full reels or loose parts, batch confirmed on inquiry.

What is the minimum order quantity for ESP32-WROOM-32UE-N8?

The minimum order quantity for ESP32-WROOM-32UE-N8 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for ESP32-WROOM-32UE-N8?

Yes. Send us the original part number or the key parameters (Frequency Range, Sensitivity, Operating Voltage) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for ESP32-WROOM-32UE-N8?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Function Modules parts

Need ESP32-WROOM-32UE-N8?

Genuine parts · small-batch trial runs · full BOM kitting

How to order ESP32-WROOM-32UE-N8

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
