ECS-3225SMV-80-FN-TR · 8 MHz HCMOS Active Oscillator

ECS-3225SMV-80-FN-TR is an 8 MHz HCMOS active oscillator, not a passive crystal. This listing shows ±10 ppm stability, 1.8/2.5/3.3 V supply options, -40 to 85°C operation, 10 mA maximum current and Enable/Disable. Match the clock output, load, enable logic and device pinout before substitution.

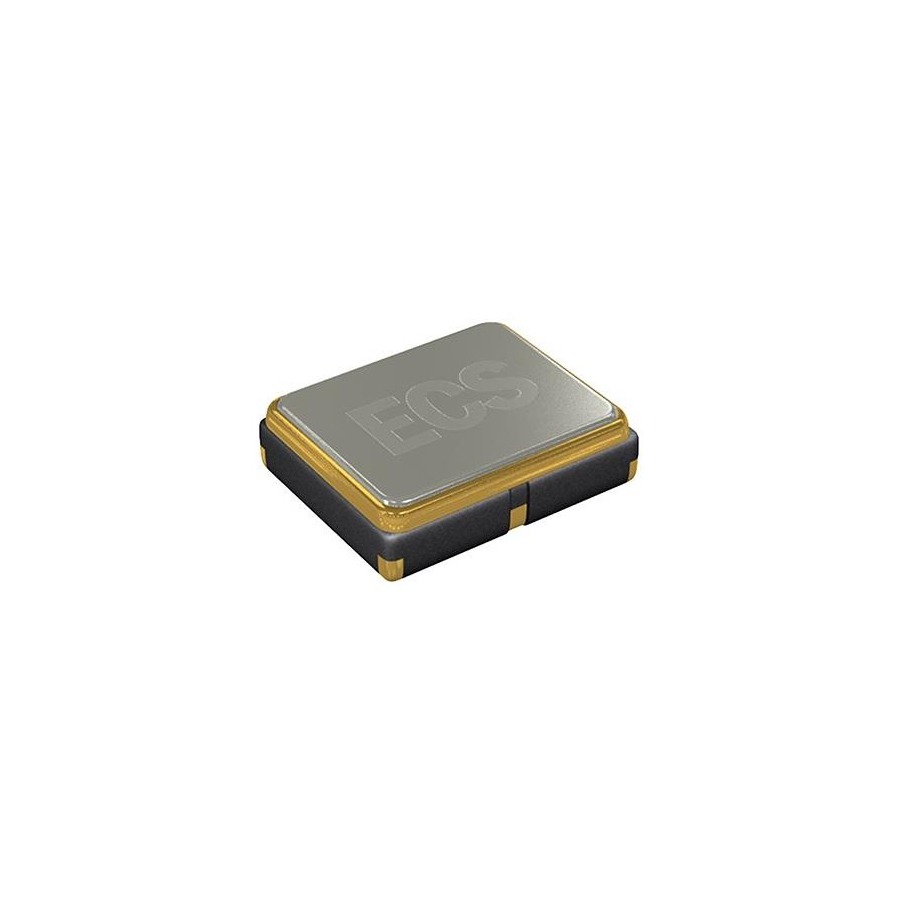

ECS-3225SMV-80-FN-TR 8 MHz HCMOS Active Oscillator
Part numberECS-3225SMV-80-FN-TR
ManufacturerECS
Description8 MHz HCMOS Active Oscillator
Package4-SMD, No Lead
CategoryCrystals & Sensors / Crystals
Reference priceRequest quote
Min. order1 pcs
AvailabilityConfirm on inquiry
Reference stock0 pcs

ECS-3225SMV-80-FN-TR price and stock (reference)

This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.

ECS-3225SMV-80-FN-TR specifications

Base ResonatorCrystal
TypeXO (Standard)
Frequency8 MHz
FunctionEnable/Disable
OutputHCMOS
Power Supply1.8V, 2.5V, 3.3V
Frequency Stability±10ppm
Operating Temperature-40°C ~ 85°C
Current - Supply (Max)10mA

About the 8 MHz HCMOS Active Oscillator

ECS-3225SMV-80-FN-TR is an 8 MHz active crystal oscillator from ECS Inc. in a 4-SMD leadless package. The listed configuration has HCMOS output, 1.8 V, 2.5 V or 3.3 V supply options, ±10 ppm frequency stability, -40°C to 85°C operation, 10 mA maximum supply current and an Enable/Disable function. It contains the oscillator circuit and drives a clock output directly; it is not a passive crystal that relies on external load capacitors for startup. Replacement checks must cover supply voltage, output levels, load conditions, enable polarity, startup time and footprint.

Replacement checks:
  • Confirm that the circuit requires an active oscillator and provides a stable supply for it.
  • Check the 1.8 V, 2.5 V or 3.3 V operating range and whether the HCMOS output levels match the receiver.
  • Verify Enable/Disable polarity, the unconnected-pin state, startup time and output load conditions.
  • Match the 4-SMD leadless footprint, pin assignment, decoupling placement and clock routing.
Direct answer: ECS-3225SMV-80-FN-TR is an 8 MHz active oscillator with an internal oscillator circuit and HCMOS clock output. The listing shows ±10 ppm, 1.8/2.5/3.3 V supply options, -40 to 85°C operation, 10 mA maximum current and Enable/Disable. For replacement, compare supply, output levels and load, enable polarity, startup time and the 4-SMD footprint; do not treat it as a passive crystal that needs external load-capacitor calculation. Reviewed 2026-11-20

ECS-3225SMV-80-FN-TR — frequently asked questions

Is ECS-3225SMV-80-FN-TR a crystal or an active oscillator?

The listing describes an 8 MHz active oscillator (XO) with an internal oscillator circuit and HCMOS output. It is not a passive crystal that requires external load capacitors for startup.

Can it operate from a single 3.3 V supply and drive the clock directly?

The listing shows 1.8 V, 2.5 V and 3.3 V supply options plus Enable/Disable, but the permitted voltage, enable state and output load must be confirmed from the exact part datasheet.

Can it replace an 8 MHz passive crystal directly?

No. An active oscillator requires supply power and drives a clock output, while a passive crystal connects across the oscillator pins. Their external circuits and pin functions are different.
