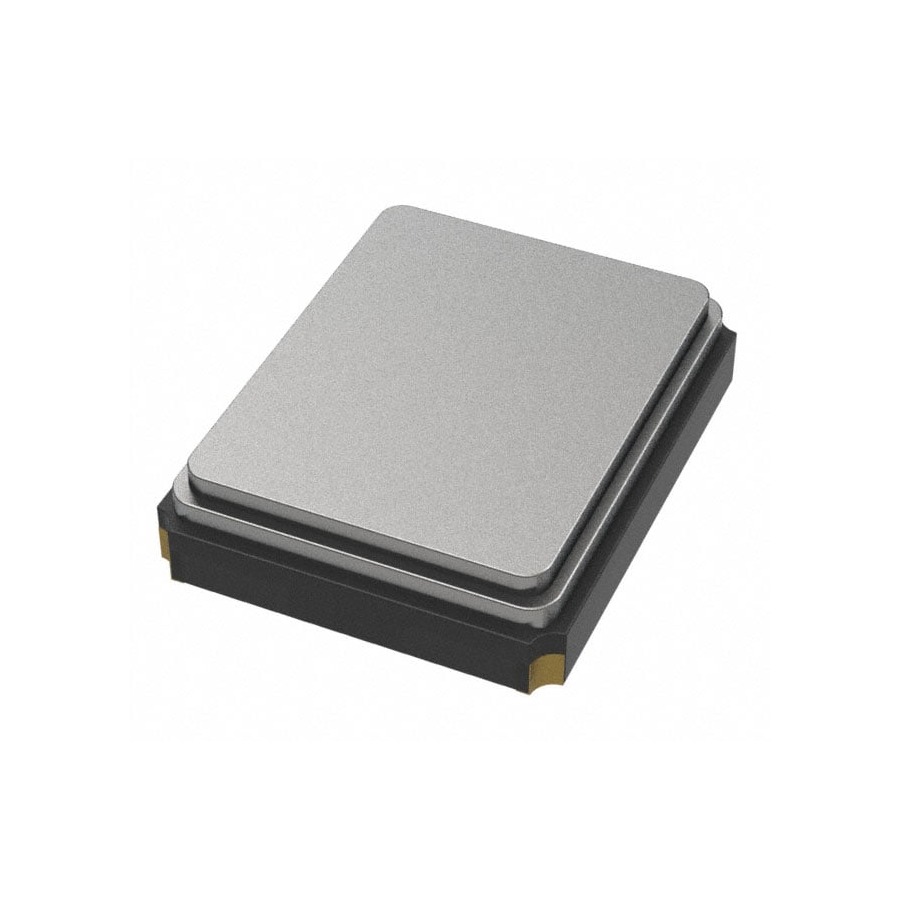

CS10820-24M · Crystal 24 MHz 4-SMD, No Lead
CS10820-24M (Crystal 24 MHz 4-SMD, No Lead from NDK (NIHON DEMPA KOGYO CO., LTD)) comes in a 4-SMD, No Lead package. Reference unit price: ¥2.455, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | CS10820-24M |
| Manufacturer | NDK (NIHON DEMPA KOGYO CO., LTD) |
| Description | Crystal 24 MHz 4-SMD, No Lead |
| Package | 4-SMD, No Lead |
| Category | Crystals & Sensors / Crystals |
| Reference price | ¥¥2.455 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 2,965 pcs |
CS10820-24M tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥2.455 | In stock |
| 6000 pcs and up | ¥2.3535 | In stock |
| 9000 pcs and up | ¥2.2961 | In stock |
| 15000 pcs and up | ¥2.2258 | In stock |
| 21000 pcs and up | ¥2.1807 | In stock |
| 30000 pcs and up | ¥2.1339 | In stock |
CS10820-24M specifications
| Type | MHz Crystal |
| Frequency | 24 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±15ppm |
| Load Capacitance | 6pF |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
About the Crystal 24 MHz 4-SMD, No Lead
NDK (NIHON DEMPA KOGYO CO., LTD) 24 MHz ±15ppm Crystal 6pF 80 Ohms 4-SMD, No Lead. In stock — 2,965 pcs available.
CS10820-24M — frequently asked questions
Reference availability: 2,965 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥2.455, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥2.455, 6000 pcs and up: ¥2.3535, 9000 pcs and up: ¥2.2961, 15000 pcs and up: ¥2.2258, 21000 pcs and up: ¥2.1807, 30000 pcs and up: ¥2.1339. Send us your required quantity for a firm quotation.
CS10820-24M is manufactured by NDK (NIHON DEMPA KOGYO CO., LTD) in a 4-SMD, No Lead package, filed under Crystals & Sensors / Crystals. NDK (NIHON DEMPA KOGYO CO., LTD) 24 MHz ±15ppm Crystal 6pF 80 Ohms 4-SMD, No Lead. In stock — 2,965 pcs available.
The minimum order quantity for CS10820-24M is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Type, Frequency, Frequency Stability) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
