Crystals & Sensors Crystals · NDK

CS07859-24M · Crystal 24 MHz

CS07859-24M (Crystal 24 MHz from NDK) comes in a 4-SMD, No Lead package. Reference unit price: Request quote, minimum order 1 piece. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

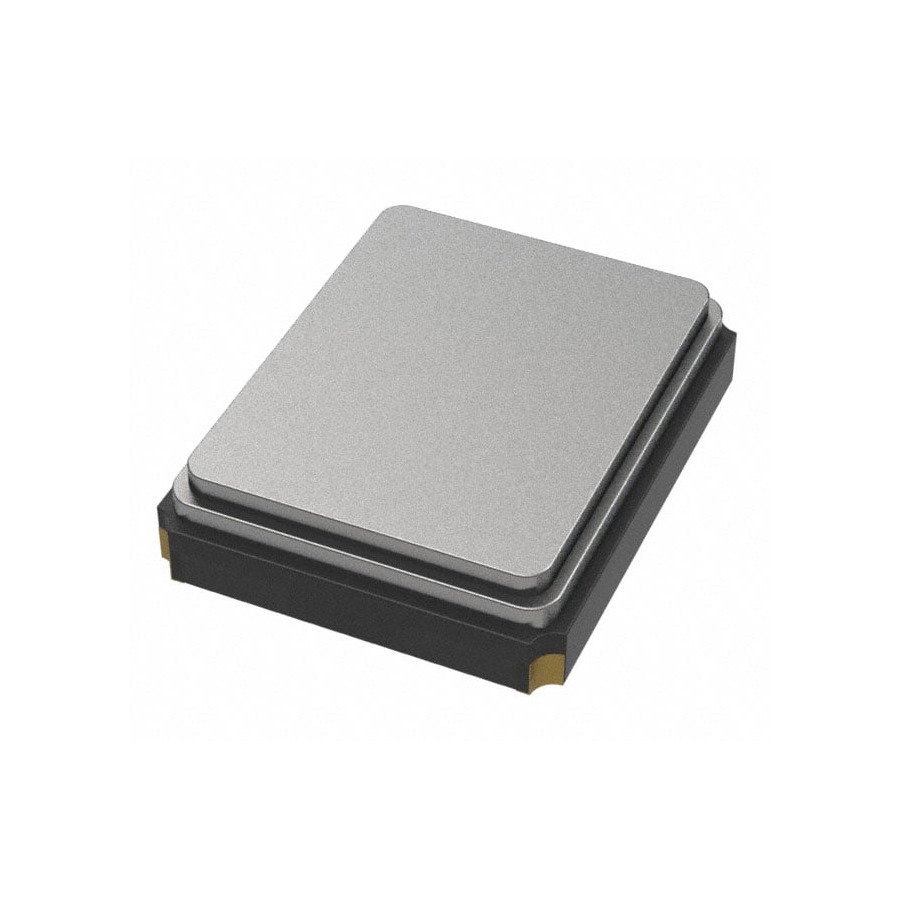

CS07859-24M Crystal 24 MHz
Part numberCS07859-24M
ManufacturerNDK
DescriptionCrystal 24 MHz
Package4-SMD, No Lead
CategoryCrystals & Sensors / Crystals
Reference priceRequest quote
Min. order1 pcs
AvailabilityConfirm on inquiry
Reference stock0 pcs

CS07859-24M price and stock (reference)

This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.

CS07859-24M specifications

TypeMHz Crystal
Frequency24 MHz
Frequency Stability±50ppm
Frequency Tolerance±20ppm
Load Capacitance8pF
ESR (Equivalent Series Resistance)200 Ohms
Operating ModeFundamental
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount

About the Crystal 24 MHz

CS07859-24M is NDK's Crystal 24 MHz 4-SMD, No Lead. Typical use is the timing reference for a microcontroller, radio or interface, or the system clock in a timing-critical design. Match frequency, load capacitance and package, and confirm the accuracy class (ppm) the design needs. A passive crystal and a powered oscillator are different devices even if the frequency is the same. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

CS07859-24M — frequently asked questions

Is CS07859-24M in stock?

Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does CS07859-24M cost?

This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.

What package and brand is CS07859-24M?

CS07859-24M is manufactured by NDK in a 4-SMD, No Lead package, filed under Crystals & Sensors / Crystals. CS07859-24M is NDK's Crystal 24 MHz 4-SMD, No Lead. Typical use is the timing reference for a microcontroller, radio or interface, or the system clock in a timing-critical design. Match frequency, load capacitance and package, and confirm the accuracy class (ppm) the design needs. A passive crystal and a powered oscillator are different devices even if the frequency is the same. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

What is the minimum order quantity for CS07859-24M?

The minimum order quantity for CS07859-24M is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for CS07859-24M?

Yes. Send us the original part number or the key parameters (Type, Frequency, Frequency Stability) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for CS07859-24M?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Crystals parts

Need CS07859-24M?

Genuine parts · small-batch trial runs · full BOM kitting

How to order CS07859-24M

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
