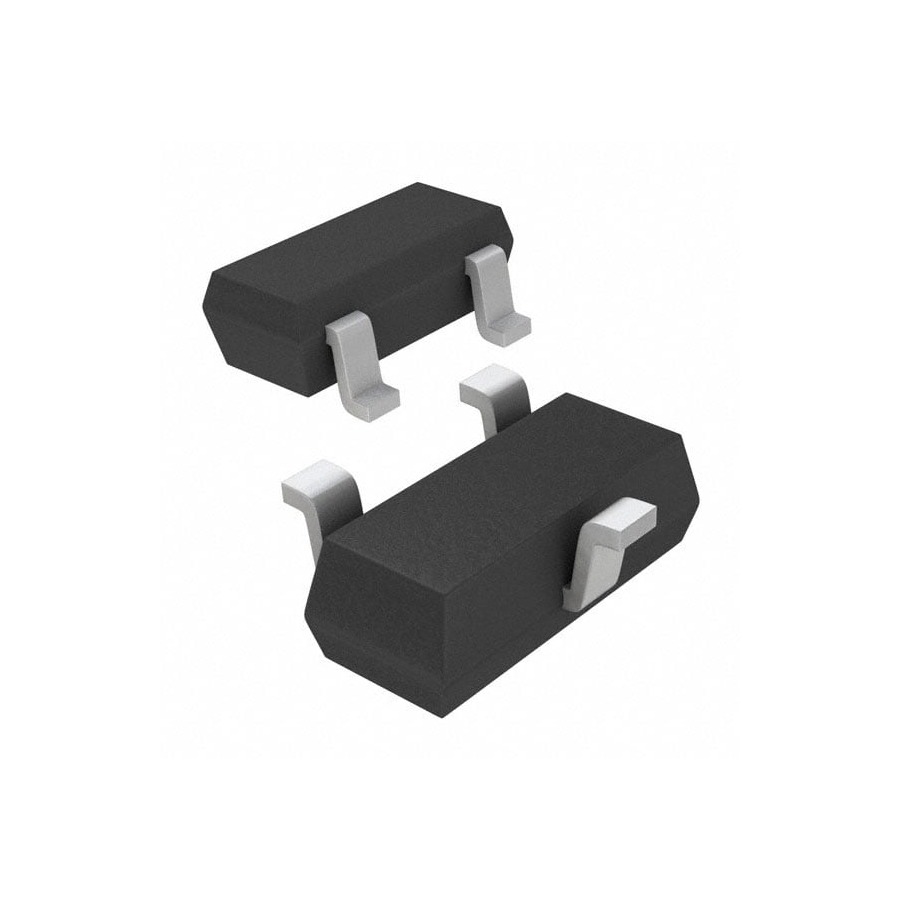

CBAT54S TR PBFREE · Schottky Diode SOT-23
CBAT54S TR PBFREE (Schottky Diode SOT-23 from Central) comes in a SOT-23 package. Reference unit price: Request quote, minimum order 1 piece. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

| Part number | CBAT54S TR PBFREE |
| Manufacturer | Central |
| Description | Schottky Diode SOT-23 |
| Package | SOT-23 |
| Category | Diodes & Transistors / Schottky Diodes |
| Reference price | Request quote |
| Min. order | 1 pcs |
| Availability | Confirm on inquiry |
| Reference stock | 0 pcs |
CBAT54S TR PBFREE price and stock (reference)
This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.
CBAT54S TR PBFREE specifications
| Diode Configuration | 1 Pair Series Connection |
| Current - Rectified | 200mA |
| Voltage - DC Reverse(Vr) | 30V |
| Voltage - Forward(Vf) | 800mV@100mA |
| Non-Repetitive Peak Forward Surge Current | 600mA |
| Operating Junction Temperature Range | -65℃~+150℃ |
| Reverse Leakage Current (Ir) | 2uA@25V |
About the Schottky Diode SOT-23
CBAT54S TR PBFREE is Central's Schottky Diode SOT-23. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Availability, batch and lead time are confirmed on inquiry.
CBAT54S TR PBFREE — frequently asked questions
Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.
CBAT54S TR PBFREE is manufactured by Central in a SOT-23 package, filed under Diodes & Transistors / Schottky Diodes. CBAT54S TR PBFREE is Central's Schottky Diode SOT-23. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Availability, batch and lead time are confirmed on inquiry.
The minimum order quantity for CBAT54S TR PBFREE is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Diode Configuration, Current - Rectified, Voltage - DC Reverse(Vr)) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
Related Schottky Diodes parts
Genuine parts · small-batch trial runs · full BOM kitting
How to order CBAT54S TR PBFREE
Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
