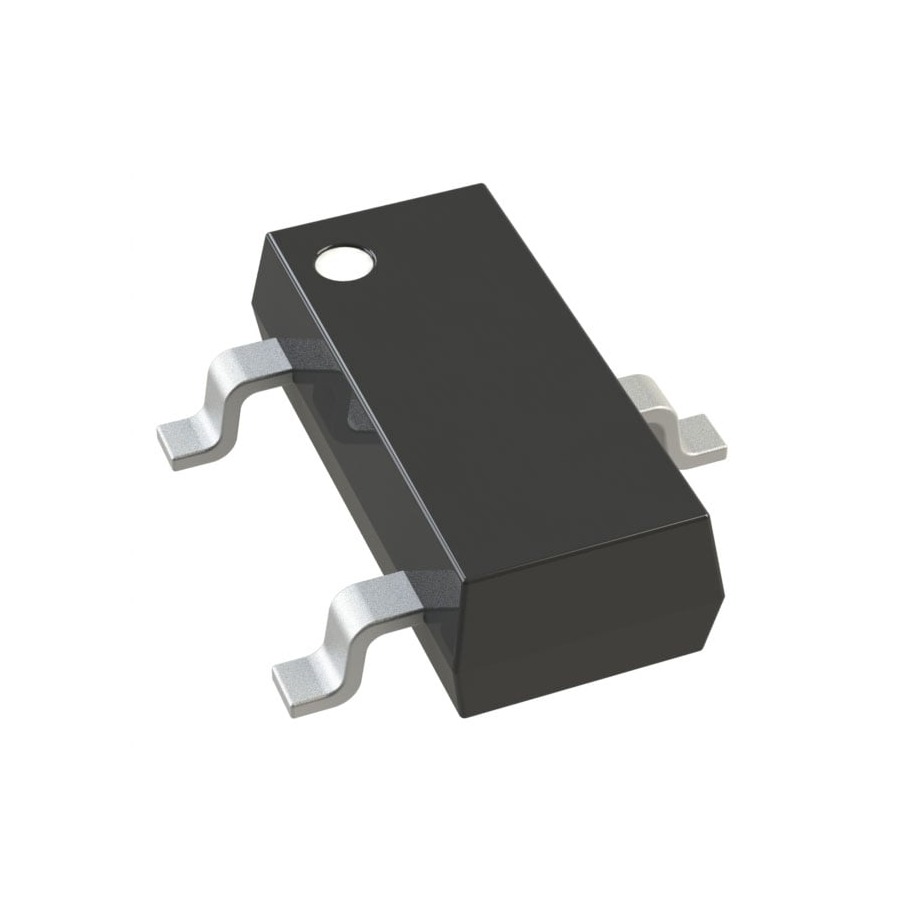

BSS138-7-F · MOSFET 50 V SOT-23-3
BSS138-7-F (MOSFET 50 V SOT-23-3 from Diodes Incorporated) comes in a SOT-23-3 package. Reference unit price: ¥0.0452, minimum order 1 piece. Availability: In stock (factory lead time approx. 40 weeks). Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | BSS138-7-F |
| Manufacturer | Diodes Incorporated |
| Description | MOSFET 50 V SOT-23-3 |
| Package | SOT-23-3 |
| Category | Diodes & Transistors / MOSFETs |
| Reference price | ¥¥0.0452 |
| Min. order | 1 pcs |
| Availability | In stock (factory lead time approx. 40 weeks) |
| Reference stock | 38,260 pcs |
BSS138-7-F tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥0.0452 | In stock (factory lead time approx. 40 weeks) |
| 500 pcs and up | ¥0.0324 | In stock (factory lead time approx. 40 weeks) |
| 5000 pcs and up | ¥0.0291 | In stock (factory lead time approx. 40 weeks) |
BSS138-7-F specifications
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain-Source Voltage | 50 V |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| On-Resistance | 3.5Ohm @ 220mA, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 10 V |
About the MOSFET 50 V SOT-23-3
Diodes Incorporated N-Channel 50 V 200mA (Ta) 300mW (Ta) Surface Mount SOT-23-3. In stock — 38,260 pcs available.
BSS138-7-F — frequently asked questions
Reference availability: 38,260 pcs, In stock (factory lead time approx. 40 weeks). Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥0.0452, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥0.0452, 500 pcs and up: ¥0.0324, 5000 pcs and up: ¥0.0291. Send us your required quantity for a firm quotation.
BSS138-7-F is manufactured by Diodes Incorporated in a SOT-23-3 package, filed under Diodes & Transistors / MOSFETs. Diodes Incorporated N-Channel 50 V 200mA (Ta) 300mW (Ta) Surface Mount SOT-23-3. In stock — 38,260 pcs available.
The minimum order quantity for BSS138-7-F is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (FET Type, Technology, Drain-Source Voltage) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
