BAT54SHE3-TP · Schottky Diode TO-236-3, SC-59, SOT-23-3

BAT54SHE3-TP (Schottky Diode TO-236-3, SC-59, SOT-23-3 from MCC) comes in a TO-236-3, SC-59, SOT-23-3 package. Reference unit price: US$0.041, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

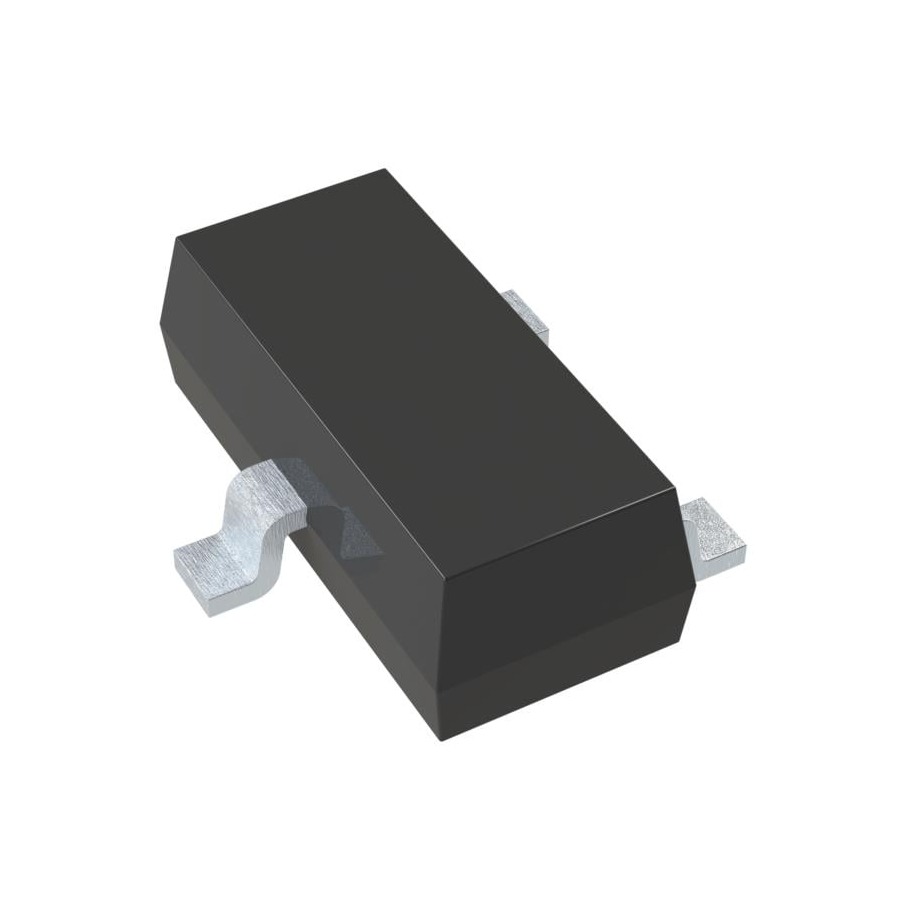

BAT54SHE3-TP Schottky Diode TO-236-3, SC-59, SOT-23-3
Part numberBAT54SHE3-TP
ManufacturerMCC
DescriptionSchottky Diode TO-236-3, SC-59, SOT-23-3
PackageTO-236-3, SC-59, SOT-23-3
CategoryDiodes & Transistors / Schottky Diodes
Reference priceUS$0.041
Min. order1 pcs
AvailabilityIn stock
Reference stock86 pcs

BAT54SHE3-TP price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.041In stock
9000 pcs and upUS$0.030In stock

BAT54SHE3-TP specifications

Diode Configuration1 Pair Series Connection
TechnologySchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)200mA
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 75 V
Operating Temperature - Junction-55°C ~ 125°C

About the Schottky Diode TO-236-3, SC-59, SOT-23-3

BAT54SHE3-TP is MCC's Schottky Diode TO-236-3, SC-59, SOT-23-3. It is used for freewheeling, secondary rectification and reverse-polarity protection where a low forward drop matters. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.
