BAT54LT1G · Schottky Diode 200mA TO-236-3, SC-59, SOT-23-3

BAT54LT1G (Schottky Diode 200mA TO-236-3, SC-59, SOT-23-3 from onsemi) comes in a TO-236-3, SC-59, SOT-23-3 package. Reference unit price: US$0.019, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

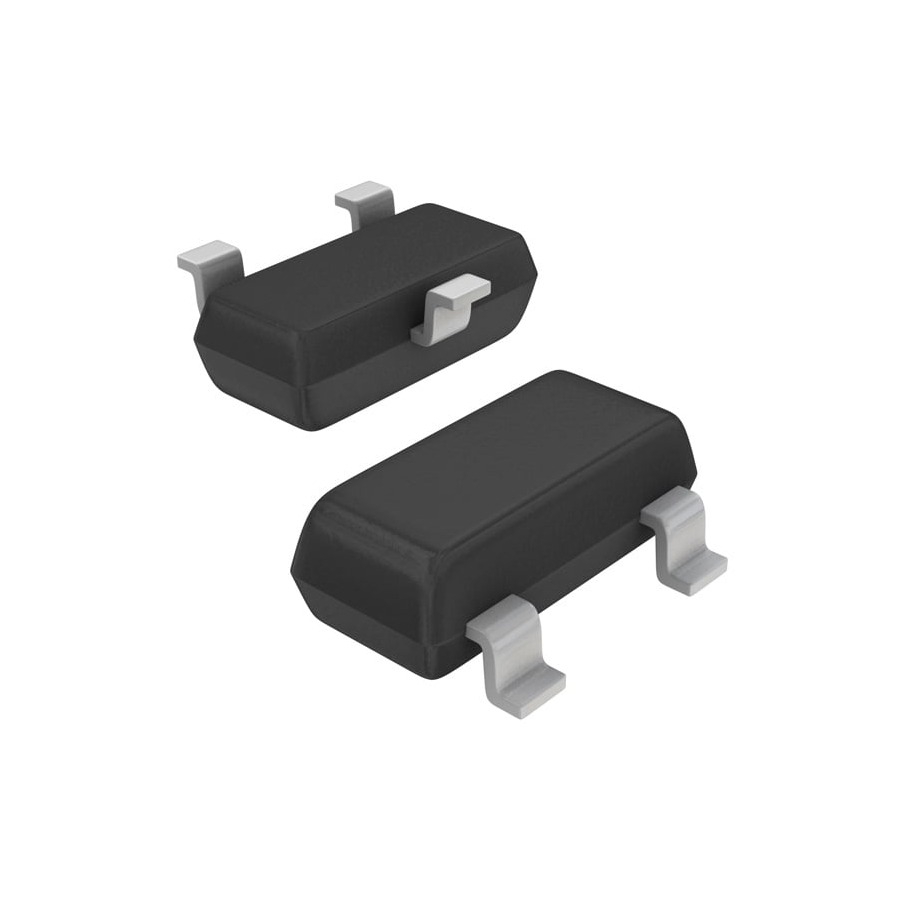

BAT54LT1G Schottky Diode 200mA TO-236-3, SC-59, SOT-23-3
Part numberBAT54LT1G
Manufactureronsemi
DescriptionSchottky Diode 200mA TO-236-3, SC-59, SOT-23-3
PackageTO-236-3, SC-59, SOT-23-3
CategoryDiodes & Transistors / Schottky Diodes
Reference priceUS$0.019
Min. order1 pcs
AvailabilityIn stock
Reference stock1,282 pcs

BAT54LT1G price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.019In stock
10 pcs and upUS$0.015In stock
30 pcs and upUS$0.012In stock
150 pcs and upUS$0.011In stock
450 pcs and upUS$0.0095In stock
1050 pcs and upUS$0.0088In stock

BAT54LT1G specifications

TechnologySchottky
Voltage - DC Reverse (Vr) (Max)30 V
Forward Current200mA
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Capacitance @ Vr, F10pF @ 1V, 1MHz

About the Schottky Diode 200mA TO-236-3, SC-59, SOT-23-3

BAT54LT1G is onsemi's Schottky Diode 200mA TO-236-3, SC-59, SOT-23-3. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

BAT54LT1G — frequently asked questions

Is BAT54LT1G in stock?

Reference availability: 1,282 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does BAT54LT1G cost?

Reference unit price is US$0.019, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.019, 10 pcs and up: US$0.015, 30 pcs and up: US$0.012, 150 pcs and up: US$0.011, 450 pcs and up: US$0.0095, 1050 pcs and up: US$0.0088. Send us your required quantity for a firm quotation.

What package and brand is BAT54LT1G?

BAT54LT1G is manufactured by onsemi in a TO-236-3, SC-59, SOT-23-3 package, filed under Diodes & Transistors / Schottky Diodes. BAT54LT1G is onsemi's Schottky Diode 200mA TO-236-3, SC-59, SOT-23-3. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. Check reverse voltage against the rail and keep in mind that leakage rises steeply with temperature, which matters in high-impedance or precision circuits. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for BAT54LT1G?

The minimum order quantity for BAT54LT1G is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for BAT54LT1G?

Yes. Send us the original part number or the key parameters (Technology, Voltage - DC Reverse (Vr) (Max), Forward Current) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for BAT54LT1G?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Schottky Diodes parts

Need BAT54LT1G?

Genuine parts · small-batch trial runs · full BOM kitting

How to order BAT54LT1G

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
