Diodes & Transistors Schottky Diodes · DIODES

BAT54C-7-F · Schottky Diode SOT-23

BAT54C-7-F (Schottky Diode SOT-23 from DIODES) comes in a SOT-23 package. Reference unit price: US$0.217, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

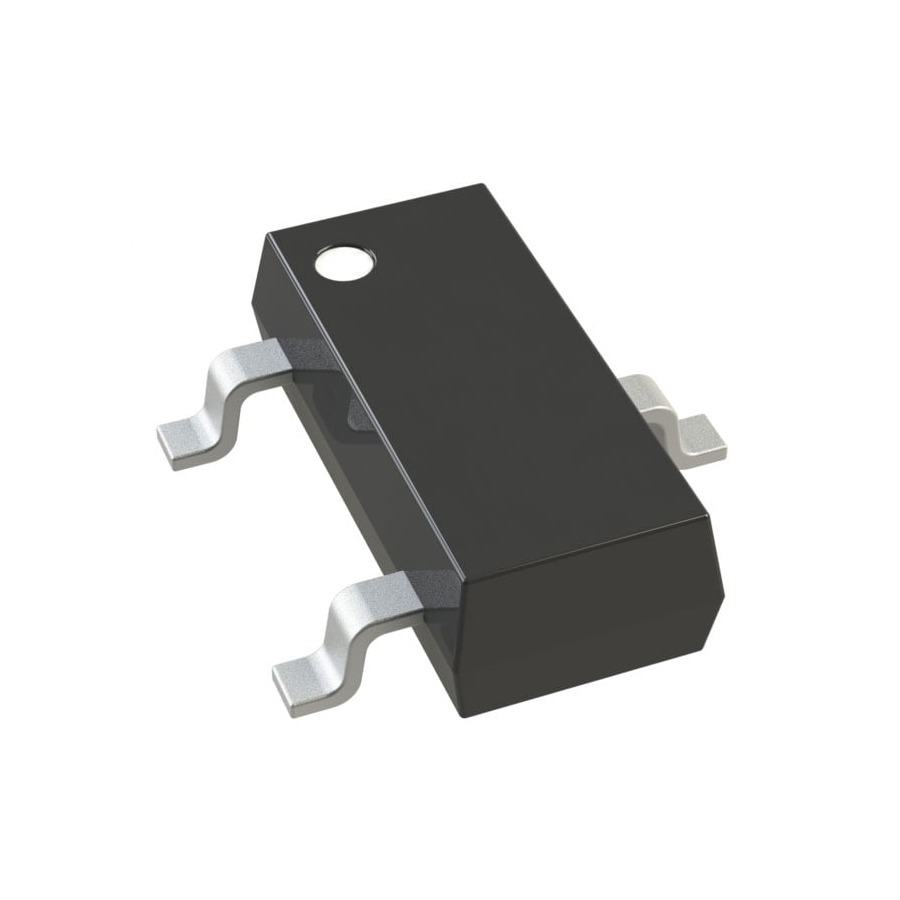

BAT54C-7-F Schottky Diode SOT-23
Part numberBAT54C-7-F
ManufacturerDIODES
DescriptionSchottky Diode SOT-23
PackageSOT-23
CategoryDiodes & Transistors / Schottky Diodes
Reference priceUS$0.217
Min. order1 pcs
AvailabilityIn stock
Reference stock420 pcs

BAT54C-7-F price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.217In stock
10 pcs and upUS$0.174In stock
30 pcs and upUS$0.156In stock
100 pcs and upUS$0.133In stock
600 pcs and upUS$0.122In stock
1200 pcs and upUS$0.116In stock

BAT54C-7-F specifications

Diode Configuration1 Pair Common Cathode
Current - Rectified200mA
Voltage - DC Reverse(Vr)30V
Voltage - Forward(Vf)800mV@100mA
Non-Repetitive Peak Forward Surge Current600mA
Operating Junction Temperature Range-65℃~+150℃
Reverse Leakage Current (Ir)2uA@25V

About the Schottky Diode SOT-23

BAT54C-7-F is DIODES's Schottky Diode SOT-23. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. The trade-off is leakage: Schottky reverse leakage is much higher than an ordinary diode and grows with temperature. Also check the reverse voltage against the rail - 40 V is tight on a 24 V system. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

BAT54C-7-F — frequently asked questions

Is BAT54C-7-F in stock?

Reference availability: 420 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does BAT54C-7-F cost?

Reference unit price is US$0.217, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.217, 10 pcs and up: US$0.174, 30 pcs and up: US$0.156, 100 pcs and up: US$0.133, 600 pcs and up: US$0.122, 1200 pcs and up: US$0.116. Send us your required quantity for a firm quotation.

What package and brand is BAT54C-7-F?

BAT54C-7-F is manufactured by DIODES in a SOT-23 package, filed under Diodes & Transistors / Schottky Diodes. BAT54C-7-F is DIODES's Schottky Diode SOT-23. Typical use is DC-DC freewheeling, low-voltage rectification and reverse-battery protection on 3.3 V and 5 V rails. The trade-off is leakage: Schottky reverse leakage is much higher than an ordinary diode and grows with temperature. Also check the reverse voltage against the rail - 40 V is tight on a 24 V system. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for BAT54C-7-F?

The minimum order quantity for BAT54C-7-F is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for BAT54C-7-F?

Yes. Send us the original part number or the key parameters (Diode Configuration, Current - Rectified, Voltage - DC Reverse(Vr)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for BAT54C-7-F?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Schottky Diodes parts

Need BAT54C-7-F?

Genuine parts · small-batch trial runs · full BOM kitting

How to order BAT54C-7-F

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
