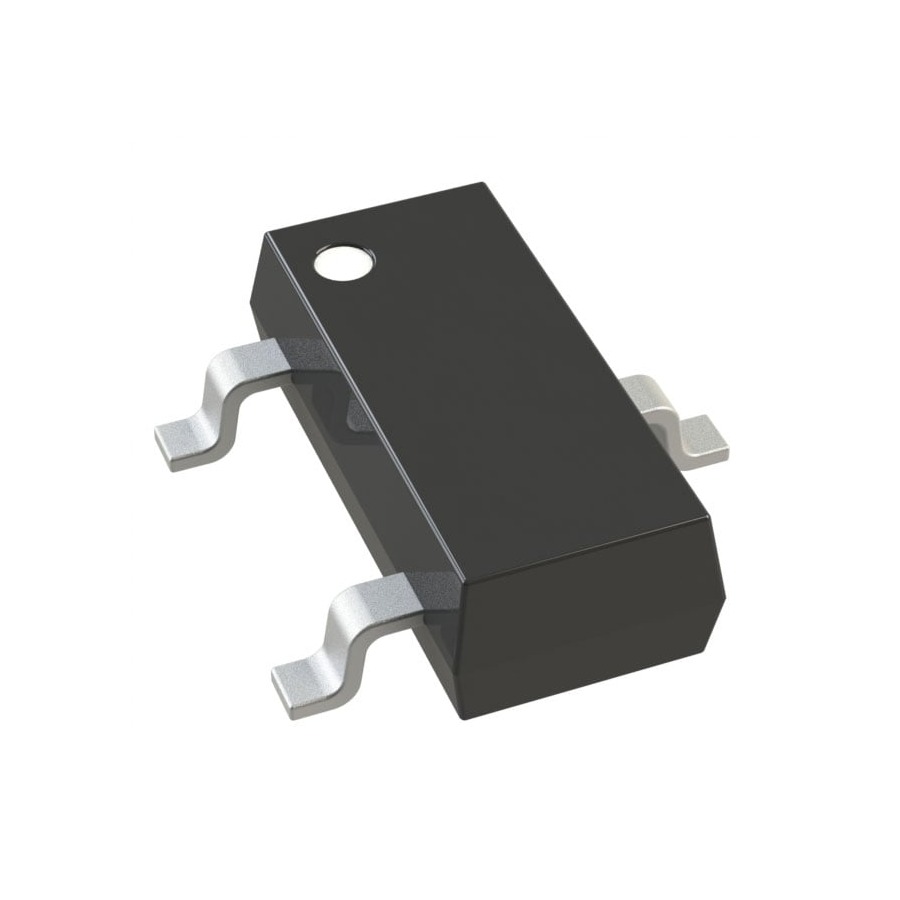

BAT54A-QR · Schottky Diode SOT-23
BAT54A-QR (Schottky Diode SOT-23 from Nexperia USA Inc.) comes in a SOT-23 package. Reference unit price: ¥0.2385, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | BAT54A-QR |
| Manufacturer | Nexperia USA Inc. |
| Description | Schottky Diode SOT-23 |
| Package | SOT-23 |
| Category | Diodes & Transistors / Schottky Diodes |
| Reference price | ¥¥0.2385 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 1,206 pcs |
BAT54A-QR tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥0.2385 | In stock |
| 9000 pcs and up | ¥0.1983 | In stock |
BAT54A-QR specifications
| Diode Configuration | 1 Pair Common Anode |
| Current - Rectified | 200mA |
| Voltage - DC Reverse(Vr) | 30V |
| Voltage - Forward(Vf) | 800mV@100mA |
| Non-Repetitive Peak Forward Surge Current | 600mA |
| Reverse Leakage Current (Ir) | 2uA@25V |
About the Schottky Diode SOT-23
Nexperia USA Inc. Diode Array 1 Pair Common Anode 30 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3. In stock — 1,206 pcs available.
BAT54A-QR — frequently asked questions
Reference availability: 1,206 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥0.2385, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥0.2385, 9000 pcs and up: ¥0.1983. Send us your required quantity for a firm quotation.
BAT54A-QR is manufactured by Nexperia USA Inc. in a SOT-23 package, filed under Diodes & Transistors / Schottky Diodes. Nexperia USA Inc. Diode Array 1 Pair Common Anode 30 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3. In stock — 1,206 pcs available.
The minimum order quantity for BAT54A-QR is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Diode Configuration, Current - Rectified, Voltage - DC Reverse(Vr)) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
