ATS040 · Crystal 4 MHz HC-49/U

ATS040 (Crystal 4 MHz HC-49/U from CTS) comes in a HC-49/U package. Reference unit price: Request quote, minimum order 1 piece. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

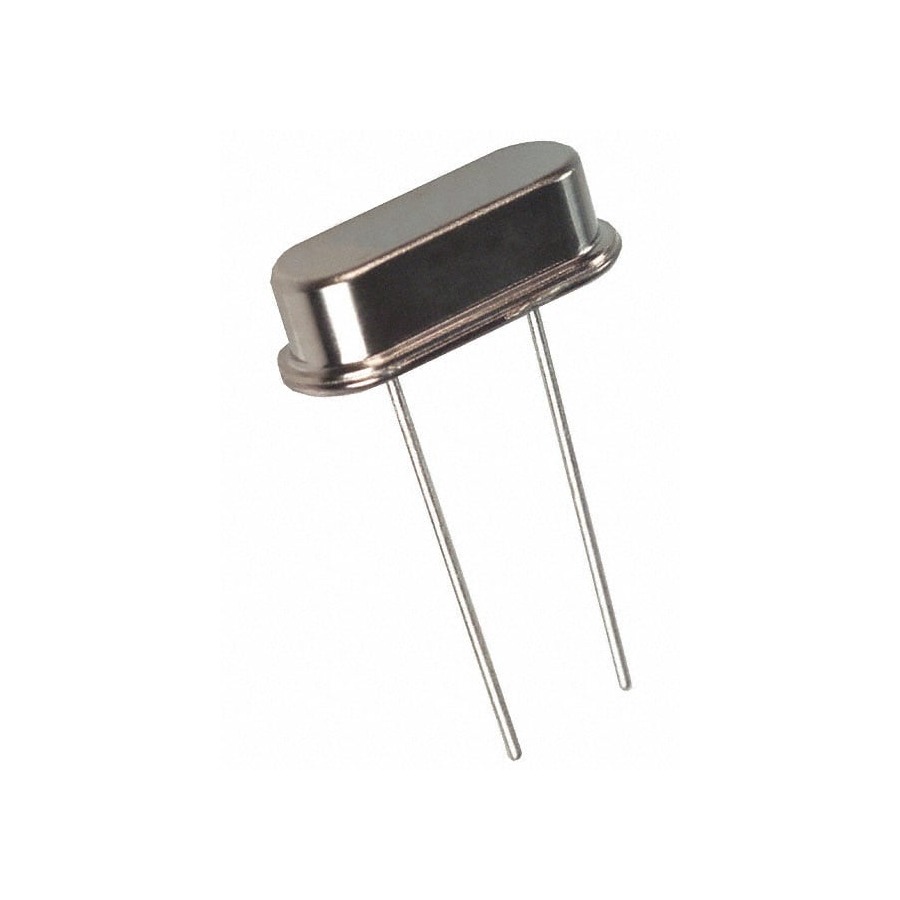

ATS040 Crystal 4 MHz HC-49/U
Part numberATS040
ManufacturerCTS
DescriptionCrystal 4 MHz HC-49/U
PackageHC-49/U
CategoryCrystals & Sensors / Crystals
Reference priceRequest quote
Min. order1 pcs
AvailabilityConfirm on inquiry
Reference stock0 pcs

ATS040 price and stock (reference)

This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.

ATS040 specifications

TypeMHz Crystal
Frequency4 MHz
Frequency Stability±50ppm
Frequency Tolerance±30ppm
Load Capacitance20pF
ESR (Equivalent Series Resistance)120 Ohms
Operating ModeFundamental
Operating Temperature-20°C ~ 70°C
Mounting TypeThrough Hole

About the Crystal 4 MHz HC-49/U

ATS040 is CTS's Crystal 4 MHz HC-49/U. Typical use is the timing reference for a microcontroller, radio or interface, or the system clock in a timing-critical design. Frequency and load capacitance have to match the circuit exactly - the wrong load capacitance shifts the frequency and can stop a radio from working. Check whether you need a passive crystal or an active oscillator, and the accuracy grade. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

ATS040 — frequently asked questions

Is ATS040 in stock?

Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does ATS040 cost?

This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.

What package and brand is ATS040?

ATS040 is manufactured by CTS in a HC-49/U package, filed under Crystals & Sensors / Crystals. ATS040 is CTS's Crystal 4 MHz HC-49/U. Typical use is the timing reference for a microcontroller, radio or interface, or the system clock in a timing-critical design. Frequency and load capacitance have to match the circuit exactly - the wrong load capacitance shifts the frequency and can stop a radio from working. Check whether you need a passive crystal or an active oscillator, and the accuracy grade. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

What is the minimum order quantity for ATS040?

The minimum order quantity for ATS040 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for ATS040?

Yes. Send us the original part number or the key parameters (Type, Frequency, Frequency Stability) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for ATS040?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Crystals parts

Need ATS040?

Genuine parts · small-batch trial runs · full BOM kitting

How to order ATS040

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
