Crystals & Sensors Crystals · Abracon

ABL-12.000MHZ-20-B4 · Crystal 12MHz HC-49US

ABL-12.000MHZ-20-B4 (Crystal 12MHz HC-49US from Abracon) comes in a HC-49US package. Reference unit price: Request quote, minimum order 1 piece. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

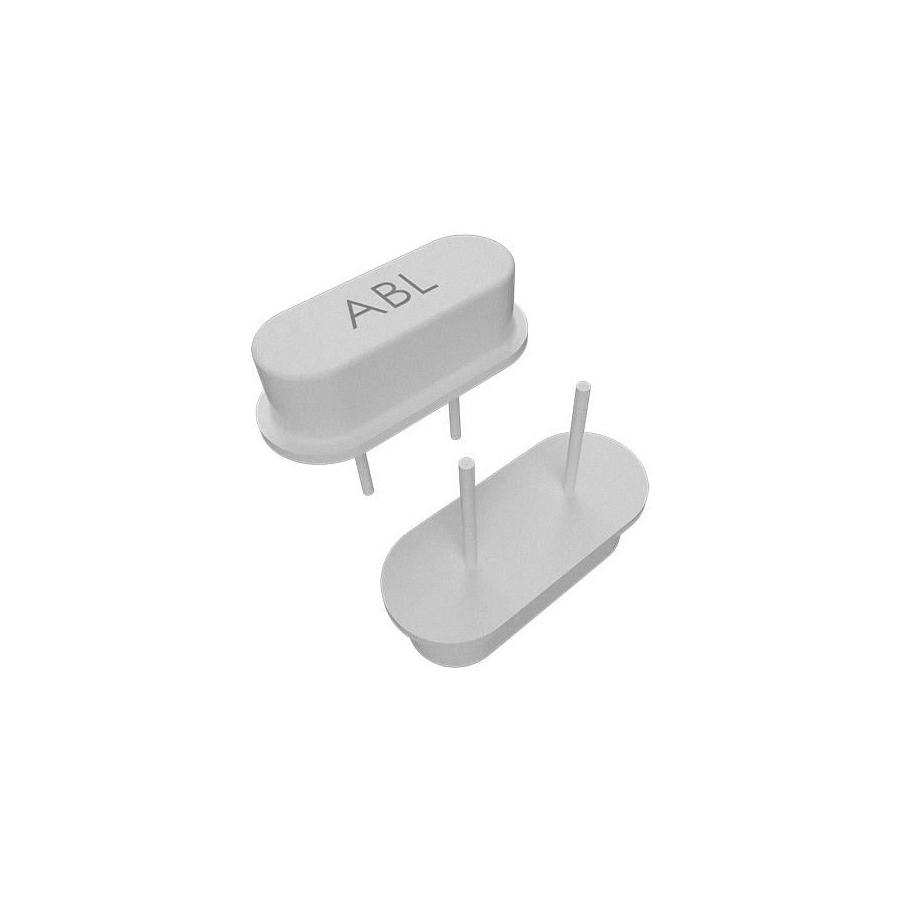

ABL-12.000MHZ-20-B4 Crystal 12MHz HC-49US
Part numberABL-12.000MHZ-20-B4
ManufacturerAbracon
DescriptionCrystal 12MHz HC-49US
PackageHC-49US
CategoryCrystals & Sensors / Crystals
Reference priceRequest quote
Min. order1 pcs
AvailabilityConfirm on inquiry
Reference stock0 pcs

ABL-12.000MHZ-20-B4 price and stock (reference)

This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.

ABL-12.000MHZ-20-B4 specifications

Frequency Stability±50ppm
Load Capacitance20pF
Normal temperature Frequency Tolerance±30ppm
Operating Temperature-20℃~+70℃
Equivalent Series Resistance (ESR)50Ω
Frequency12MHz

About the Crystal 12MHz HC-49US

ABL-12.000MHZ-20-B4 is Abracon's Crystal 12MHz HC-49US. It provides the reference clock for an MCU, a communication chip or a timing circuit, either as a passive crystal or an active oscillator. Frequency and load capacitance have to match the circuit exactly - the wrong load capacitance shifts the frequency and can stop a radio from working. Check whether you need a passive crystal or an active oscillator, and the accuracy grade. Availability, batch and lead time are confirmed on inquiry.

ABL-12.000MHZ-20-B4 — frequently asked questions

Is ABL-12.000MHZ-20-B4 in stock?

Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does ABL-12.000MHZ-20-B4 cost?

This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.

What package and brand is ABL-12.000MHZ-20-B4?

ABL-12.000MHZ-20-B4 is manufactured by Abracon in a HC-49US package, filed under Crystals & Sensors / Crystals. ABL-12.000MHZ-20-B4 is Abracon's Crystal 12MHz HC-49US. It provides the reference clock for an MCU, a communication chip or a timing circuit, either as a passive crystal or an active oscillator. Frequency and load capacitance have to match the circuit exactly - the wrong load capacitance shifts the frequency and can stop a radio from working. Check whether you need a passive crystal or an active oscillator, and the accuracy grade. Availability, batch and lead time are confirmed on inquiry.

What is the minimum order quantity for ABL-12.000MHZ-20-B4?

The minimum order quantity for ABL-12.000MHZ-20-B4 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for ABL-12.000MHZ-20-B4?

Yes. Send us the original part number or the key parameters (Frequency Stability, Load Capacitance, Normal temperature Frequency Tolerance) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for ABL-12.000MHZ-20-B4?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Crystals parts

Need ABL-12.000MHZ-20-B4?

Genuine parts · small-batch trial runs · full BOM kitting

How to order ABL-12.000MHZ-20-B4

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
