2V7002LT1G · MOSFET SOT-23

2V7002LT1G (MOSFET SOT-23 from onsemi) comes in a SOT-23 package. Reference unit price: US$0.077, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

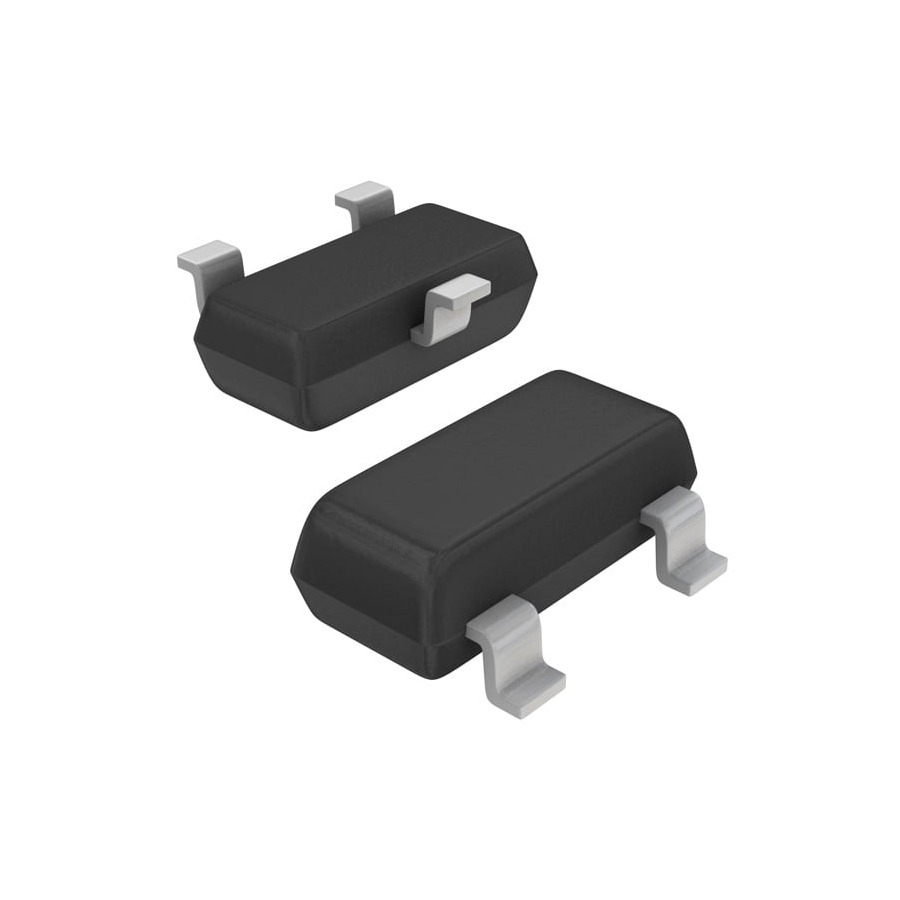

2V7002LT1G MOSFET SOT-23
Part number2V7002LT1G
Manufactureronsemi
DescriptionMOSFET SOT-23
PackageSOT-23
CategoryDiodes & Transistors / MOSFETs
Reference priceUS$0.077
Min. order1 pcs
AvailabilityIn stock
Reference stock17 pcs

2V7002LT1G price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.077In stock
10 pcs and upUS$0.059In stock
30 pcs and upUS$0.050In stock

2V7002LT1G specifications

Pd - Power Dissipation225mW
Drain to Source Voltage60V
Current - Continuous Drain(Id)115mA
On-Resistance7.5Ω@10V
Number1 N-channel
TypeN-Channel
Output Capacitance(Coss)25pF
Input Capacitance (Ciss)50pF
Reverse Transfer Capacitance (Crss)5pF

About the MOSFET SOT-23

2V7002LT1G is onsemi's MOSFET SOT-23. Typical use is power switching, load switching and the switching element of a DC-DC or motor-drive stage. Check Vds, Vgs(th) and Rds(on) before substituting, and confirm the part is driven at logic level if a 3.3 V or 5 V gate drives it. Small packages have limited thermal capability. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

2V7002LT1G — frequently asked questions

Is 2V7002LT1G in stock?

Reference availability: 17 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does 2V7002LT1G cost?

Reference unit price is US$0.077, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.077, 10 pcs and up: US$0.059, 30 pcs and up: US$0.050. Send us your required quantity for a firm quotation.

What package and brand is 2V7002LT1G?

2V7002LT1G is manufactured by onsemi in a SOT-23 package, filed under Diodes & Transistors / MOSFETs. 2V7002LT1G is onsemi's MOSFET SOT-23. Typical use is power switching, load switching and the switching element of a DC-DC or motor-drive stage. Check Vds, Vgs(th) and Rds(on) before substituting, and confirm the part is driven at logic level if a 3.3 V or 5 V gate drives it. Small packages have limited thermal capability. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for 2V7002LT1G?

The minimum order quantity for 2V7002LT1G is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for 2V7002LT1G?

Yes. Send us the original part number or the key parameters (Pd - Power Dissipation, Drain to Source Voltage, Current - Continuous Drain(Id)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for 2V7002LT1G?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related MOSFETs parts

Need 2V7002LT1G?

Genuine parts · small-batch trial runs · full BOM kitting

How to order 2V7002LT1G

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
