Optoelectronics SMD LEDs · VISHAY

VSMY2940GX01 · LED 940nm SMD

VSMY2940GX01 (LED 940nm SMD from VISHAY) comes in a SMD package. Reference unit price: US$0.615, minimum order 100 pcs. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

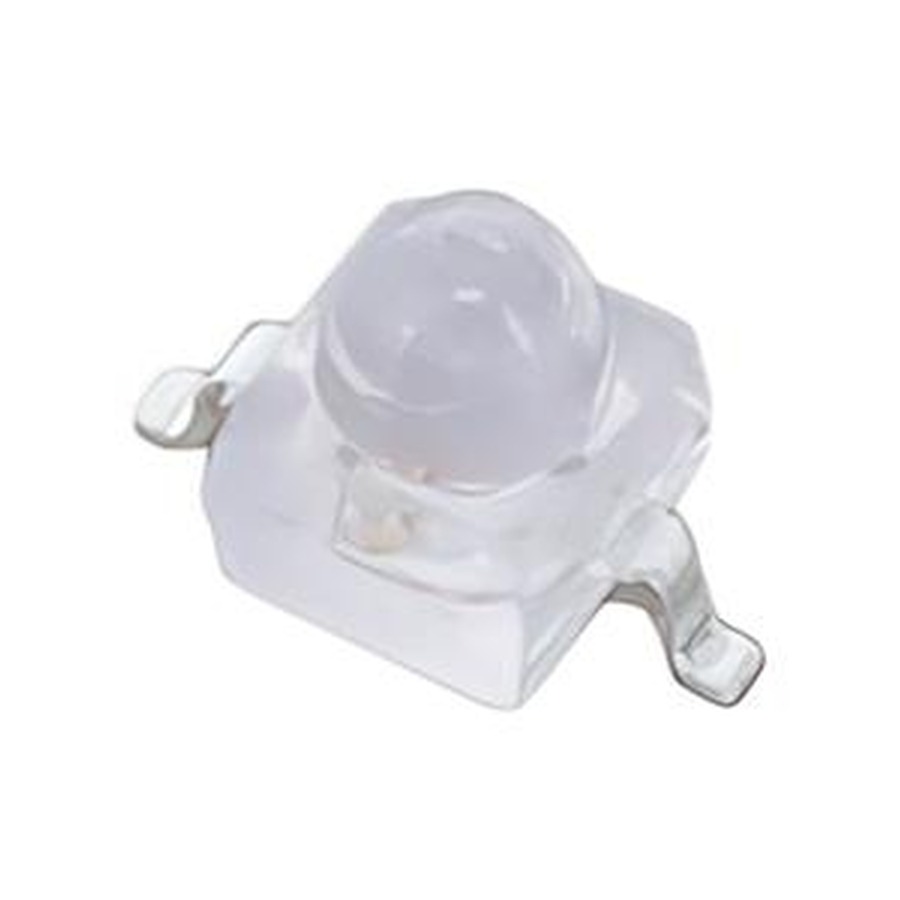

VSMY2940GX01 LED 940nm SMD
Part numberVSMY2940GX01
ManufacturerVISHAY
DescriptionLED 940nm SMD
PackageSMD
CategoryOptoelectronics / SMD LEDs
Reference priceUS$0.615
Min. order100 pcs
AvailabilityIn stock
Reference stock121 pcs

VSMY2940GX01 price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.615In stock
10 pcs and upUS$0.490In stock
30 pcs and upUS$0.427In stock
100 pcs and upUS$0.364In stock
500 pcs and upUS$0.327In stock
1000 pcs and upUS$0.309In stock

VSMY2940GX01 specifications

Voltage - DC Reverse(Vr)5V
Current - DC Forward(If)100mA
Voltage - Forward(Vf)1.4V
Wavelength940nm
Pd - Power Dissipation170mW
Half wave width50nm
Viewing Angle10°
Operating Temperature-40℃~+85℃

About the LED 940nm SMD

VSMY2940GX01 is VISHAY's LED 940nm SMD. Typical use is status and power indication, small backlights and panel lighting. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

VSMY2940GX01 — frequently asked questions

Is VSMY2940GX01 in stock?

Reference availability: 121 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does VSMY2940GX01 cost?

Reference unit price is US$0.615, minimum order 100 pcs. Tiered pricing: 1 pcs and up: US$0.615, 10 pcs and up: US$0.490, 30 pcs and up: US$0.427, 100 pcs and up: US$0.364, 500 pcs and up: US$0.327, 1000 pcs and up: US$0.309. Send us your required quantity for a firm quotation.

What package and brand is VSMY2940GX01?

VSMY2940GX01 is manufactured by VISHAY in a SMD package, filed under Optoelectronics / SMD LEDs. VSMY2940GX01 is VISHAY's LED 940nm SMD. Typical use is status and power indication, small backlights and panel lighting. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for VSMY2940GX01?

The minimum order quantity for VSMY2940GX01 is 100 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for VSMY2940GX01?

Yes. Send us the original part number or the key parameters (Voltage - DC Reverse(Vr), Current - DC Forward(If), Voltage - Forward(Vf)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for VSMY2940GX01?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related SMD LEDs parts

Need VSMY2940GX01?

Genuine parts · small-batch trial runs · full BOM kitting

How to order VSMY2940GX01

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (100 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
