Optoelectronics SMD LEDs · VISHAY

VSMB2943GX01 · LED 940nm SMD-2,2.3x2.3mm

VSMB2943GX01 (LED 940nm SMD-2,2.3x2.3mm from VISHAY) comes in a SMD-2,2.3x2.3mm package. Reference unit price: US$0.636, minimum order 100 pcs. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

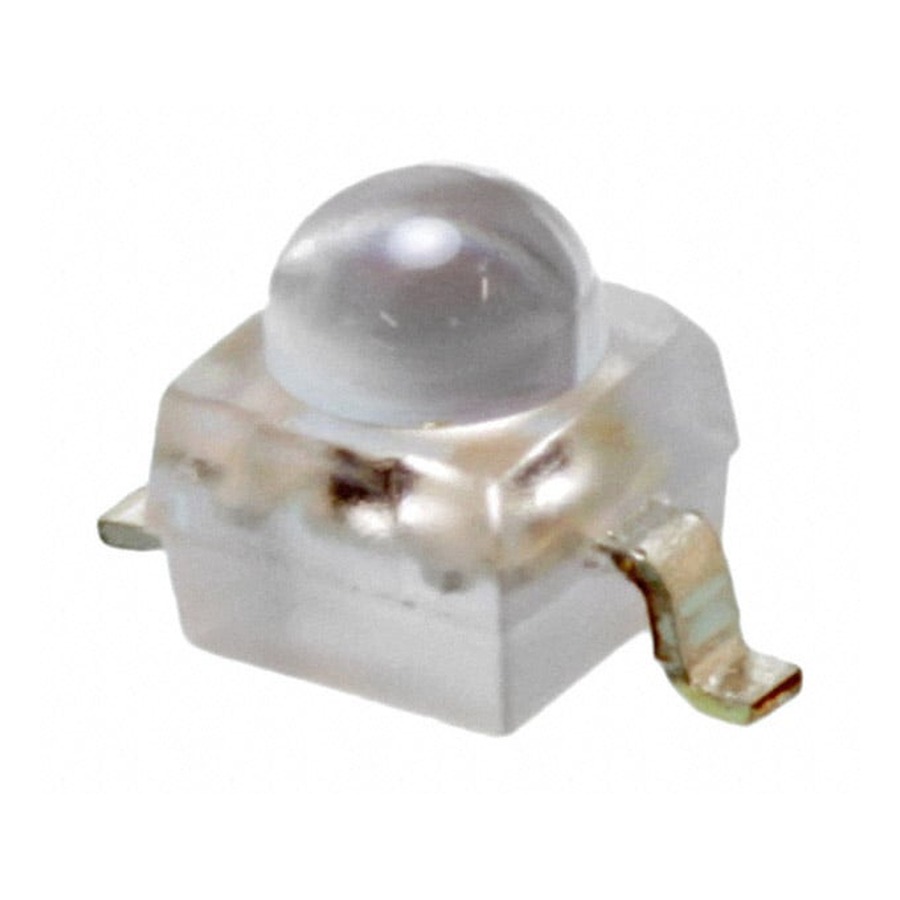

VSMB2943GX01 LED 940nm SMD-2,2.3x2.3mm
Part numberVSMB2943GX01
ManufacturerVISHAY
DescriptionLED 940nm SMD-2,2.3x2.3mm
PackageSMD-2,2.3x2.3mm
CategoryOptoelectronics / SMD LEDs
Reference priceUS$0.636
Min. order100 pcs
AvailabilityIn stock
Reference stock2,277 pcs

VSMB2943GX01 price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.636In stock
10 pcs and upUS$0.508In stock
30 pcs and upUS$0.443In stock
100 pcs and upUS$0.380In stock
500 pcs and upUS$0.342In stock
1000 pcs and upUS$0.322In stock

VSMB2943GX01 specifications

Voltage - DC Reverse(Vr)5V
Current - DC Forward(If)100mA
Wavelength940nm
Voltage - Forward(Vf)1.35V
Pd - Power Dissipation160mW
Half wave width25nm
Viewing Angle25°
Operating Temperature-40℃~+85℃

About the LED 940nm SMD-2,2.3x2.3mm

VSMB2943GX01 is VISHAY's LED 940nm SMD-2,2.3x2.3mm. Typical use is status and power indication, small backlights and panel lighting. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

VSMB2943GX01 — frequently asked questions

Is VSMB2943GX01 in stock?

Reference availability: 2,277 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does VSMB2943GX01 cost?

Reference unit price is US$0.636, minimum order 100 pcs. Tiered pricing: 1 pcs and up: US$0.636, 10 pcs and up: US$0.508, 30 pcs and up: US$0.443, 100 pcs and up: US$0.380, 500 pcs and up: US$0.342, 1000 pcs and up: US$0.322. Send us your required quantity for a firm quotation.

What package and brand is VSMB2943GX01?

VSMB2943GX01 is manufactured by VISHAY in a SMD-2,2.3x2.3mm package, filed under Optoelectronics / SMD LEDs. VSMB2943GX01 is VISHAY's LED 940nm SMD-2,2.3x2.3mm. Typical use is status and power indication, small backlights and panel lighting. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for VSMB2943GX01?

The minimum order quantity for VSMB2943GX01 is 100 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for VSMB2943GX01?

Yes. Send us the original part number or the key parameters (Voltage - DC Reverse(Vr), Current - DC Forward(If), Wavelength) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for VSMB2943GX01?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related SMD LEDs parts

Need VSMB2943GX01?

Genuine parts · small-batch trial runs · full BOM kitting

How to order VSMB2943GX01

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (100 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
