Optoelectronics SMD LEDs · VISHAY

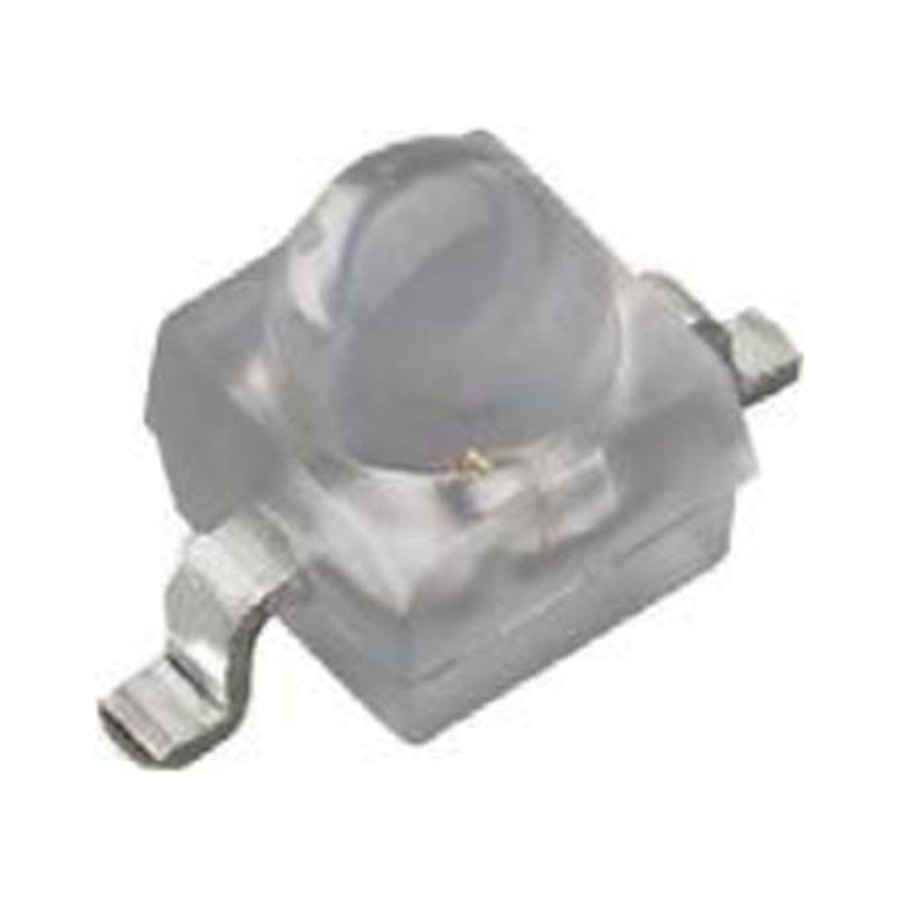

VSMB294008G · SMD LED (IR) 940nm

VSMB294008G (SMD LED (IR) 940nm from VISHAY) comes in a 2-SMD, Z-Bend package. Reference unit price: US$0.381, minimum order 20 pcs. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

VSMB294008G SMD LED (IR) 940nm
Part numberVSMB294008G
ManufacturerVISHAY
DescriptionSMD LED (IR) 940nm
Package2-SMD, Z-Bend
CategoryOptoelectronics / SMD LEDs
Reference priceUS$0.381
Min. order20 pcs
AvailabilityIn stock
Reference stock11 pcs

VSMB294008G price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.381In stock

VSMB294008G specifications

TypeInfrared (IR)
Current - DC Forward (If) (Max)100mA
Radiant Intensity (Ie) Min @ If30mW/sr @ 100mA
Wavelength940nm
Voltage - Forward (Vf) (Typ)1.35V
Viewing Angle14°
OrientationTop View
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

About the SMD LED (IR) 940nm

VSMB294008G is VISHAY's LED Infrared (IR) 940nm 2-SMD, Z-Bend. It is a surface-mount LED used for status indication, backlighting and simple light output on a board. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

VSMB294008G — frequently asked questions

Is VSMB294008G in stock?

Reference availability: 11 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does VSMB294008G cost?

Reference unit price is US$0.381, minimum order 20 pcs. Tiered pricing: 1 pcs and up: US$0.381. Send us your required quantity for a firm quotation.

What package and brand is VSMB294008G?

VSMB294008G is manufactured by VISHAY in a 2-SMD, Z-Bend package, filed under Optoelectronics / SMD LEDs. VSMB294008G is VISHAY's LED Infrared (IR) 940nm 2-SMD, Z-Bend. It is a surface-mount LED used for status indication, backlighting and simple light output on a board. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for VSMB294008G?

The minimum order quantity for VSMB294008G is 20 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for VSMB294008G?

Yes. Send us the original part number or the key parameters (Type, Current - DC Forward (If) (Max), Radiant Intensity (Ie) Min @ If) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for VSMB294008G?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related SMD LEDs parts

Need VSMB294008G?

Genuine parts · small-batch trial runs · full BOM kitting

How to order VSMB294008G

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (20 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
