Switches & Relays Relays · TE Connectivity

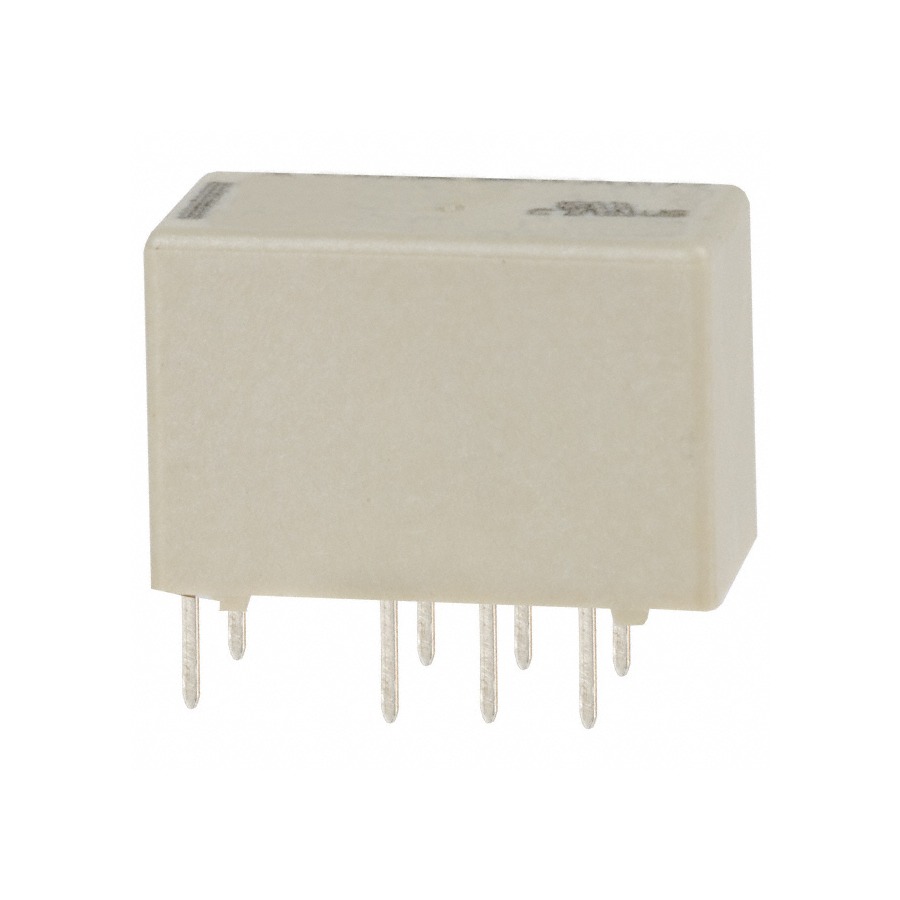

V23079A1003B301 · Relay Through-Hole

V23079A1003B301 (Relay Through-Hole from TE Connectivity) comes in a Through-Hole package. Reference unit price: US$3.79, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

V23079A1003B301 Relay Through-Hole
Part numberV23079A1003B301
ManufacturerTE Connectivity
DescriptionRelay Through-Hole
PackageThrough-Hole
CategorySwitches & Relays / Relays
Reference priceUS$3.79
Min. order1 pcs
AvailabilityIn stock
Reference stock45 pcs

V23079A1003B301 price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$3.79In stock
3 pcs and upUS$3.41In stock
5 pcs and upUS$3.32In stock
10 pcs and upUS$3.21In stock
100 pcs and upUS$3.14In stock

V23079A1003B301 specifications

Mounting TypeThrough Hole
Coil Voltage12VDC
Contact FormDPDT (2 Form C)
Contact Rating (Current)2 A
Switching Voltage250VAC, 220VDC - Max
Load - Max Switching500VA, 440W
Coil Current11.7 mA
Coil TypeNon Latching
Termination StylePC Pin

About the Relay Through-Hole

V23079A1003B301 is TE Connectivity's Relay Through-Hole. It is an electromechanical switch that lets a low-power control signal switch a much larger load, with full isolation between coil and contacts. Check the coil voltage, the contact form (NO/NC, number of poles) and the contact rating for the load type - inductive and inrush loads need more headroom than a resistive one. Footprint and pin-out differ between families. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

V23079A1003B301 — frequently asked questions

Is V23079A1003B301 in stock?

Reference availability: 45 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does V23079A1003B301 cost?

Reference unit price is US$3.79, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$3.79, 3 pcs and up: US$3.41, 5 pcs and up: US$3.32, 10 pcs and up: US$3.21, 100 pcs and up: US$3.14. Send us your required quantity for a firm quotation.

What package and brand is V23079A1003B301?

V23079A1003B301 is manufactured by TE Connectivity in a Through-Hole package, filed under Switches & Relays / Relays. V23079A1003B301 is TE Connectivity's Relay Through-Hole. It is an electromechanical switch that lets a low-power control signal switch a much larger load, with full isolation between coil and contacts. Check the coil voltage, the contact form (NO/NC, number of poles) and the contact rating for the load type - inductive and inrush loads need more headroom than a resistive one. Footprint and pin-out differ between families. Currently a backorder item; lead time and MOQ are confirmed on inquiry.

What is the minimum order quantity for V23079A1003B301?

The minimum order quantity for V23079A1003B301 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for V23079A1003B301?

Yes. Send us the original part number or the key parameters (Mounting Type, Coil Voltage, Contact Form) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for V23079A1003B301?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Relays parts

Need V23079A1003B301?

Genuine parts · small-batch trial runs · full BOM kitting

How to order V23079A1003B301

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
