Switches & Relays Relays · KEMET

UD2-5NU · RELAY GENERAL PURPOSE DPDT 1A 5V

UD2-5NU (RELAY GENERAL PURPOSE DPDT 1A 5V from KEMET) comes in a Tube package. Reference unit price: US$1.22, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

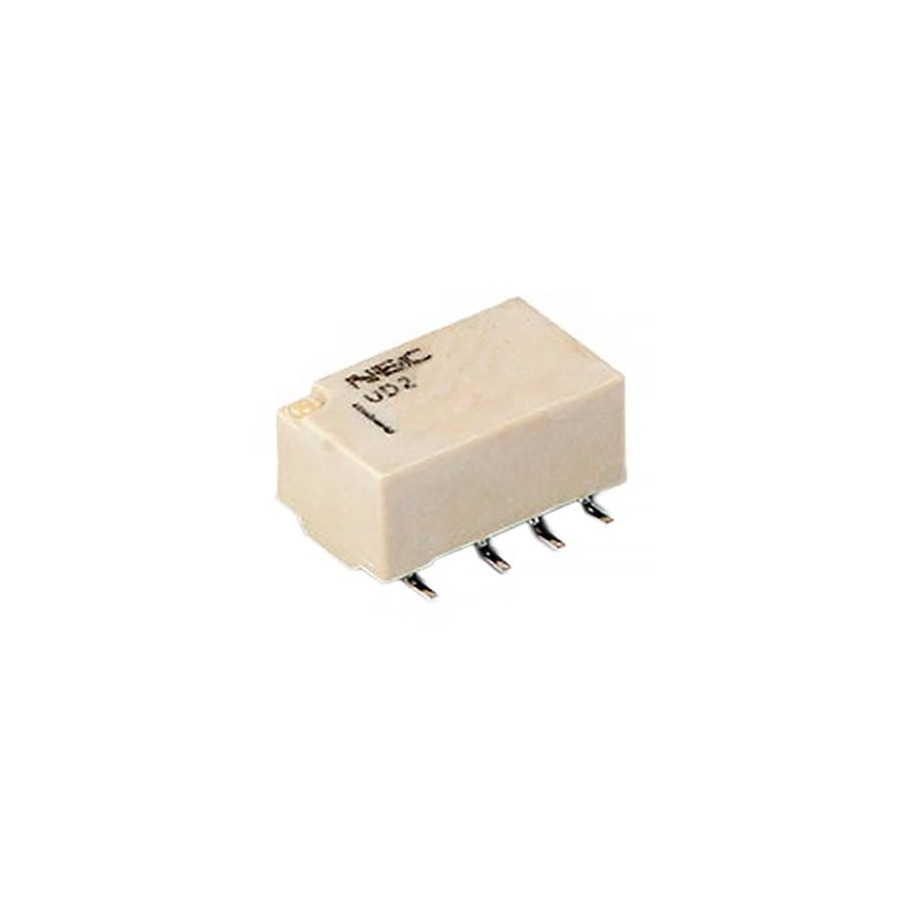

UD2-5NU RELAY GENERAL PURPOSE DPDT 1A 5V
Part numberUD2-5NU
ManufacturerKEMET
DescriptionRELAY GENERAL PURPOSE DPDT 1A 5V
PackageTube
CategorySwitches & Relays / Relays
Reference priceUS$1.22
Min. order1 pcs
AvailabilityIn stock
Reference stock303 pcs

UD2-5NU price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$1.22In stock
10 pcs and upUS$1.01In stock
100 pcs and upUS$0.754In stock

UD2-5NU specifications

Mounting TypeSurface Mount
Coil Voltage5VDC
Contact FormDPDT (2 Form C)
Contact Rating (Current)1 A
Switching Voltage250VAC, 220VDC - Max
Load - Max Switching250VA, 220W
Coil Current28 mA
Coil TypeNon Latching

About the RELAY GENERAL PURPOSE DPDT 1A 5V

UD2-5NU is KEMET's RELAY GENERAL PURPOSE DPDT 1A 5V, Tube package. Typical use is switching mains or high-current loads from a low-voltage control board, with galvanic isolation between the two sides. Match coil voltage and contact configuration first, then size the contact rating for the actual load, allowing extra margin for inductive or inrush currents. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

UD2-5NU — frequently asked questions

Is UD2-5NU in stock?

Reference availability: 303 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does UD2-5NU cost?

Reference unit price is US$1.22, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$1.22, 10 pcs and up: US$1.01, 100 pcs and up: US$0.754. Send us your required quantity for a firm quotation.

What package and brand is UD2-5NU?

UD2-5NU is manufactured by KEMET in a Tube package, filed under Switches & Relays / Relays. UD2-5NU is KEMET's RELAY GENERAL PURPOSE DPDT 1A 5V, Tube package. Typical use is switching mains or high-current loads from a low-voltage control board, with galvanic isolation between the two sides. Match coil voltage and contact configuration first, then size the contact rating for the actual load, allowing extra margin for inductive or inrush currents. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for UD2-5NU?

The minimum order quantity for UD2-5NU is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for UD2-5NU?

Yes. Send us the original part number or the key parameters (Mounting Type, Coil Voltage, Contact Form) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for UD2-5NU?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Relays parts

Need UD2-5NU?

Genuine parts · small-batch trial runs · full BOM kitting

How to order UD2-5NU

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
