TS5A2066YZPR · Logic ICs Logic IC SPST-NOX2 10Ω 8DSBGA

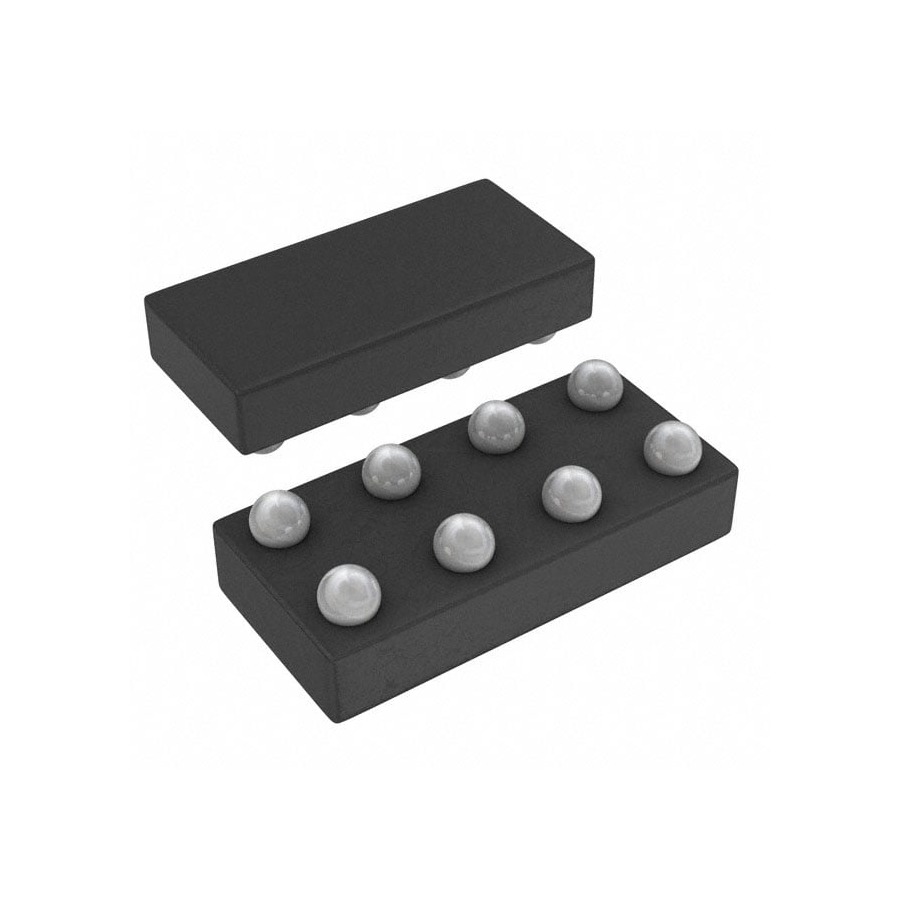

TS5A2066YZPR (Logic ICs Logic IC SPST-NOX2 10Ω 8DSBGA from TI) comes in a 8-XFBGA, DSBGA package. Reference unit price: US$0.358, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

TS5A2066YZPR Logic ICs Logic IC SPST-NOX2 10Ω 8DSBGA
Part numberTS5A2066YZPR
ManufacturerTI
DescriptionLogic ICs Logic IC SPST-NOX2 10Ω 8DSBGA
Package8-XFBGA, DSBGA
CategoryICs / Logic ICs
Reference priceUS$0.358
Min. order1 pcs
AvailabilityIn stock
Reference stock1 pcs

TS5A2066YZPR price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.358In stock
10 pcs and upUS$0.305In stock
30 pcs and upUS$0.267In stock

TS5A2066YZPR specifications

Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits2
On-State Resistance (Max)10Ohm
Channel-to-Channel Matching (ΔRon)1Ohm
Voltage - Supply, Single (V+)1.65V ~ 5.5V
Switch Time (Ton, Toff) (Max)5.8ns, 3.6ns
-3db Bandwidth300MHz

About the Logic ICs Logic IC SPST-NOX2 10Ω 8DSBGA

TS5A2066YZPR is TI's Logic IC IC SWITCH SPST-NOX2 10OHM 8DSBGA, 8-XFBGA, DSBGA package. Typical use is signal gating, buffering, latching and simple decoding between logic blocks. Check the logic family and supply voltage first: a 5 V HC part is not directly interchangeable with a 3.3 V LVC one. Confirm the function, the number of gates and the pin-out. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

TS5A2066YZPR — frequently asked questions

Is TS5A2066YZPR in stock?

Reference availability: 1 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does TS5A2066YZPR cost?

Reference unit price is US$0.358, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.358, 10 pcs and up: US$0.305, 30 pcs and up: US$0.267. Send us your required quantity for a firm quotation.

What package and brand is TS5A2066YZPR?

TS5A2066YZPR is manufactured by TI in a 8-XFBGA, DSBGA package, filed under ICs / Logic ICs. TS5A2066YZPR is TI's Logic IC IC SWITCH SPST-NOX2 10OHM 8DSBGA, 8-XFBGA, DSBGA package. Typical use is signal gating, buffering, latching and simple decoding between logic blocks. Check the logic family and supply voltage first: a 5 V HC part is not directly interchangeable with a 3.3 V LVC one. Confirm the function, the number of gates and the pin-out. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for TS5A2066YZPR?

The minimum order quantity for TS5A2066YZPR is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for TS5A2066YZPR?

Yes. Send us the original part number or the key parameters (Switch Circuit, Multiplexer/Demultiplexer Circuit, Number of Circuits) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for TS5A2066YZPR?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Logic ICs parts

Need TS5A2066YZPR?

Genuine parts · small-batch trial runs · full BOM kitting

How to order TS5A2066YZPR

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
