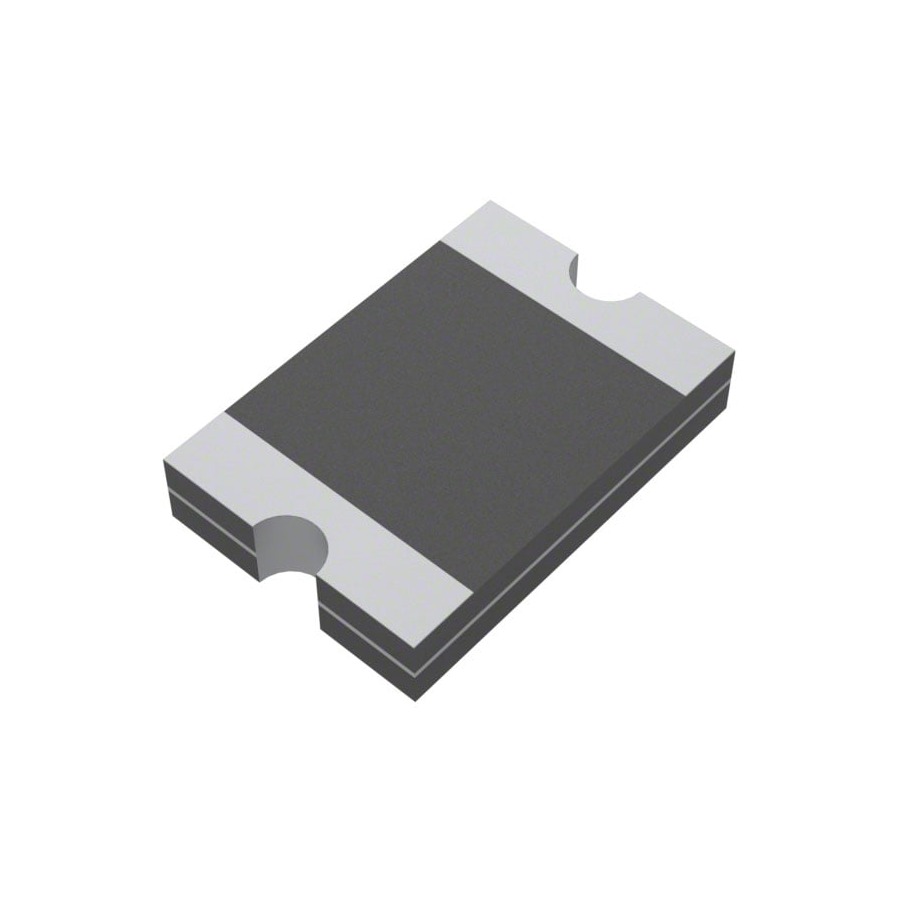

SMD1812B110TF/24 · PTC Resettable Fuse 60mΩ 1812
SMD1812B110TF/24 (PTC Resettable Fuse 60mΩ 1812 from YAGEO) comes in a 1812 package. Reference unit price: Request quote, minimum order 1 piece. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

| Part number | SMD1812B110TF/24 |
| Manufacturer | YAGEO |
| Description | PTC Resettable Fuse 60mΩ 1812 |
| Package | 1812 |
| Category | Fuses & Protection / PTC Resettable Fuses |
| Reference price | Request quote |
| Min. order | 1 pcs |
| Availability | Confirm on inquiry |
| Reference stock | 0 pcs |
SMD1812B110TF/24 price and stock (reference)
This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.
SMD1812B110TF/24 specifications
| Voltage - Max | 24V |
| Hold Current | 1.1A |
| Current - Max | 20A |
| Trip Current | 1.95A |
| Resistance | 60mΩ |
| Operating Temperature | -40℃~+85℃ |
| Power Dissipation | 800mW |
| Height | 2mm |
| Length | 4.73mm |
About the PTC Resettable Fuse 60mΩ 1812
SMD1812B110TF/24 is YAGEO's PTC Resettable Fuse 60mΩ 1812. Typical use is resettable protection on USB ports, battery packs and small motors, where a permanent fuse would be inconvenient. These are temperature sensitive and have a hold current and a trip current, not a single rating - check both against the load and consider the ambient temperature, because a hot enclosure trips them early. Availability, batch and lead time are confirmed on inquiry.
SMD1812B110TF/24 — frequently asked questions
Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.
SMD1812B110TF/24 is manufactured by YAGEO in a 1812 package, filed under Fuses & Protection / PTC Resettable Fuses. SMD1812B110TF/24 is YAGEO's PTC Resettable Fuse 60mΩ 1812. Typical use is resettable protection on USB ports, battery packs and small motors, where a permanent fuse would be inconvenient. These are temperature sensitive and have a hold current and a trip current, not a single rating - check both against the load and consider the ambient temperature, because a hot enclosure trips them early. Availability, batch and lead time are confirmed on inquiry.
The minimum order quantity for SMD1812B110TF/24 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Voltage - Max, Hold Current, Current - Max) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
Related PTC Resettable Fuses parts
Genuine parts · small-batch trial runs · full BOM kitting
How to order SMD1812B110TF/24
Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
