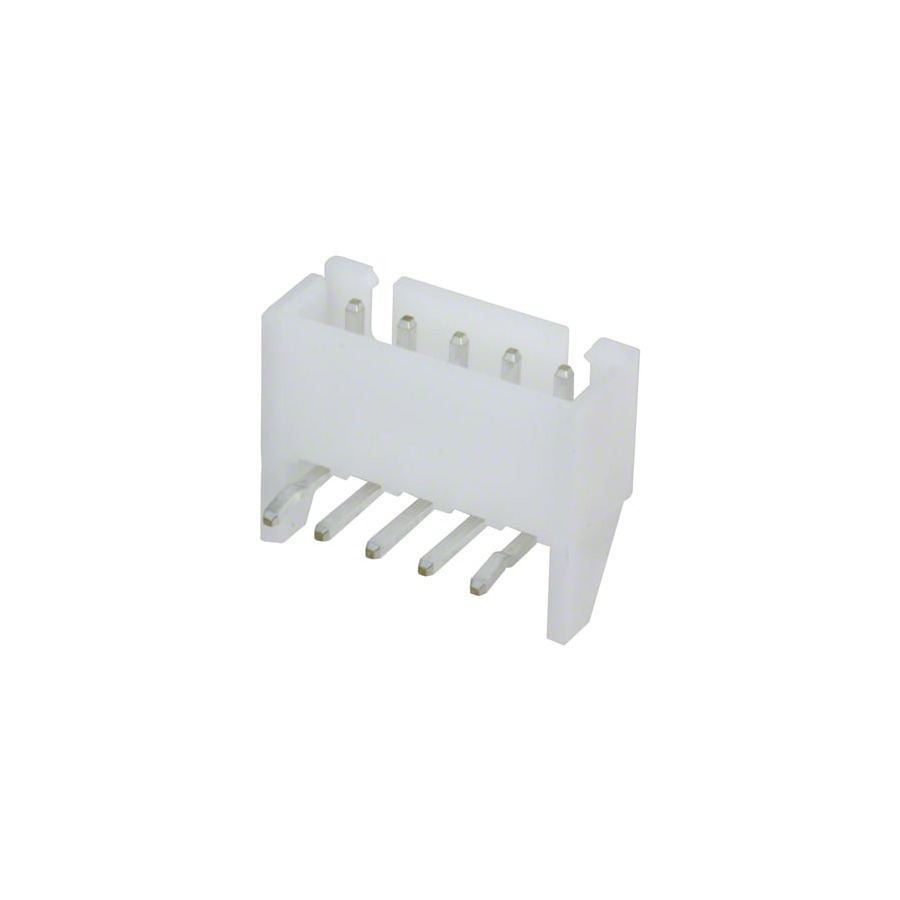

S5B-XH-A-1 · Wire-to-Board Connector CONN HEADER R/A 5POS 2.5MM
S5B-XH-A-1 (Wire-to-Board Connector CONN HEADER R/A 5POS 2.5MM from JST Sales America Inc.) comes in a 插件 package. Reference unit price: ¥1.944, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | S5B-XH-A-1 |
| Manufacturer | JST Sales America Inc. |
| Description | Wire-to-Board Connector CONN HEADER R/A 5POS 2.5MM |
| Package | 插件 |
| Category | Connectors / Wire-to-Board Connectors |
| Reference price | ¥¥1.944 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 635 pcs |
S5B-XH-A-1 tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥1.944 | In stock |
| 10 pcs and up | ¥1.62 | In stock |
| 100 pcs and up | ¥1.3766 | In stock |
| 500 pcs and up | ¥1.2285 | In stock |
| 1000 pcs and up | ¥1.1698 | In stock |
| 5000 pcs and up | ¥1.0441 | In stock |
| 10000 pcs and up | ¥0.9942 | In stock |
S5B-XH-A-1 specifications
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Resolution | 5 |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
About the Wire-to-Board Connector CONN HEADER R/A 5POS 2.5MM
JST Sales America Inc. Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm). In stock — 635 pcs available.
S5B-XH-A-1 — frequently asked questions
Reference availability: 635 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥1.944, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥1.944, 10 pcs and up: ¥1.62, 100 pcs and up: ¥1.3766, 500 pcs and up: ¥1.2285, 1000 pcs and up: ¥1.1698, 5000 pcs and up: ¥1.0441, 10000 pcs and up: ¥0.9942. Send us your required quantity for a firm quotation.
S5B-XH-A-1 is manufactured by JST Sales America Inc. in a 插件 package, filed under Connectors / Wire-to-Board Connectors. JST Sales America Inc. Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm). In stock — 635 pcs available.
The minimum order quantity for S5B-XH-A-1 is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Connector Type, Contact Type, Pitch - Mating) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
