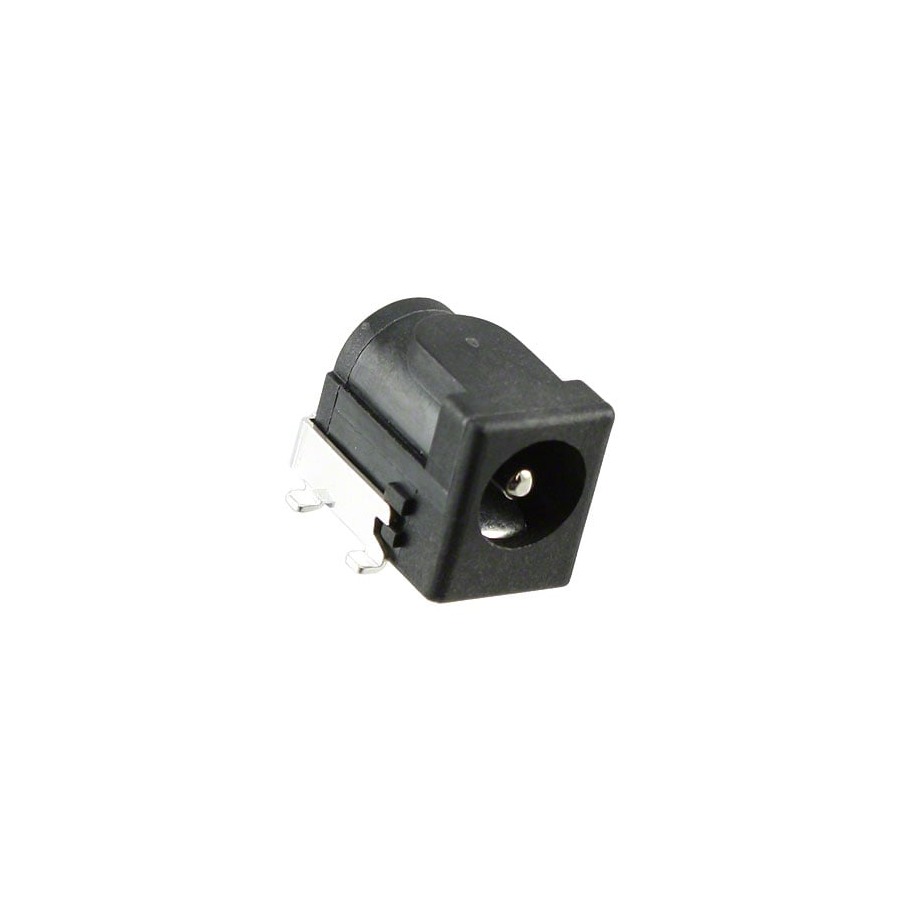

PJ-002AH-SMT-TR · Wire-to-Board Connector Jack 24VDC
PJ-002AH-SMT-TR (Wire-to-Board Connector Jack 24VDC from Same Sky (Formerly CUI Devices)) comes in a Tape & Reel (TR) package. Reference unit price: ¥1.3, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | PJ-002AH-SMT-TR |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Description | Wire-to-Board Connector Jack 24VDC |
| Package | Tape & Reel (TR) |
| Category | Connectors / Wire-to-Board Connectors |
| Reference price | ¥¥1.3 |
| Min. order | 1 pcs |
| Availability | In stock |
| Reference stock | 5,631 pcs |
PJ-002AH-SMT-TR tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 1 pcs and up | ¥1.3 | In stock |
| 200 pcs and up | ¥1.15 | In stock |
| 2000 pcs and up | ¥0.938 | In stock |
PJ-002AH-SMT-TR specifications
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Actual Diameter | 0.079" (2.00mm ID), 0.256" (6.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
About the Wire-to-Board Connector Jack 24VDC
Same Sky (Formerly CUI Devices) Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Right Angle. In stock — 5,631 pcs available.
PJ-002AH-SMT-TR — frequently asked questions
Reference availability: 5,631 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥1.3, minimum order 1 piece. Tiered pricing: 1 pcs and up: ¥1.3, 200 pcs and up: ¥1.15, 2000 pcs and up: ¥0.938. Send us your required quantity for a firm quotation.
PJ-002AH-SMT-TR is manufactured by Same Sky (Formerly CUI Devices) in a Tape & Reel (TR) package, filed under Connectors / Wire-to-Board Connectors. Same Sky (Formerly CUI Devices) Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Right Angle. In stock — 5,631 pcs available.
The minimum order quantity for PJ-002AH-SMT-TR is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Connector Type, Gender, Industry Recognized Mating Diameter) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
