LQH3NPN220MMEL · Common Mode Choke ±20% 540mA SMD,3x3mm

LQH3NPN220MMEL (Common Mode Choke ±20% 540mA SMD,3x3mm from muRata) comes in a SMD,3x3mm package. Reference unit price: US$0.147, minimum order 100 pcs. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

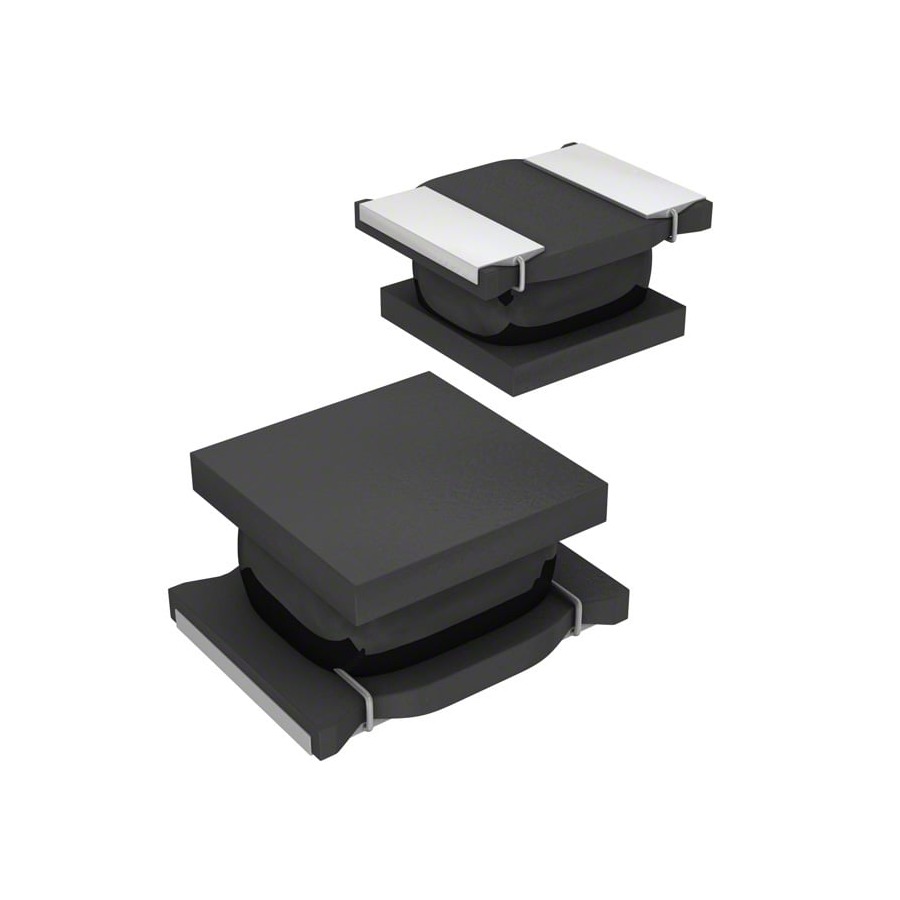

LQH3NPN220MMEL Common Mode Choke ±20% 540mA SMD,3x3mm
Part numberLQH3NPN220MMEL
ManufacturermuRata
DescriptionCommon Mode Choke ±20% 540mA SMD,3x3mm
PackageSMD,3x3mm
CategoryInductors & Ferrite Beads / Common Mode Chokes
Reference priceUS$0.147
Min. order100 pcs
AvailabilityIn stock
Reference stock448 pcs

LQH3NPN220MMEL price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.147In stock
10 pcs and upUS$0.117In stock
30 pcs and upUS$0.105In stock
100 pcs and upUS$0.089In stock
400 pcs and upUS$0.082In stock
800 pcs and upUS$0.078In stock

LQH3NPN220MMEL specifications

Current Rating540mA
Inductance22uH
Tolerance±20%
DC Resistance(DCR)400mΩ
TypeWire-wound chip inductor
Frequency - Self Resonant10MHz

About the Common Mode Choke ±20% 540mA SMD,3x3mm

LQH3NPN220MMEL is muRata's Common Mode Choke ±20% 540mA SMD,3x3mm. Typical use is common-mode EMI suppression on the input of a power supply or on a differential data pair. Common-mode impedance is specified at one frequency, so check the curve at the noise frequency you are fighting and confirm the rated current and DCR. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

LQH3NPN220MMEL — frequently asked questions

Is LQH3NPN220MMEL in stock?

Reference availability: 448 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does LQH3NPN220MMEL cost?

Reference unit price is US$0.147, minimum order 100 pcs. Tiered pricing: 1 pcs and up: US$0.147, 10 pcs and up: US$0.117, 30 pcs and up: US$0.105, 100 pcs and up: US$0.089, 400 pcs and up: US$0.082, 800 pcs and up: US$0.078. Send us your required quantity for a firm quotation.

What package and brand is LQH3NPN220MMEL?

LQH3NPN220MMEL is manufactured by muRata in a SMD,3x3mm package, filed under Inductors & Ferrite Beads / Common Mode Chokes. LQH3NPN220MMEL is muRata's Common Mode Choke ±20% 540mA SMD,3x3mm. Typical use is common-mode EMI suppression on the input of a power supply or on a differential data pair. Common-mode impedance is specified at one frequency, so check the curve at the noise frequency you are fighting and confirm the rated current and DCR. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for LQH3NPN220MMEL?

The minimum order quantity for LQH3NPN220MMEL is 100 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for LQH3NPN220MMEL?

Yes. Send us the original part number or the key parameters (Current Rating, Inductance, Tolerance) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for LQH3NPN220MMEL?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Common Mode Chokes parts

Need LQH3NPN220MMEL?

Genuine parts · small-batch trial runs · full BOM kitting

How to order LQH3NPN220MMEL

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (100 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
