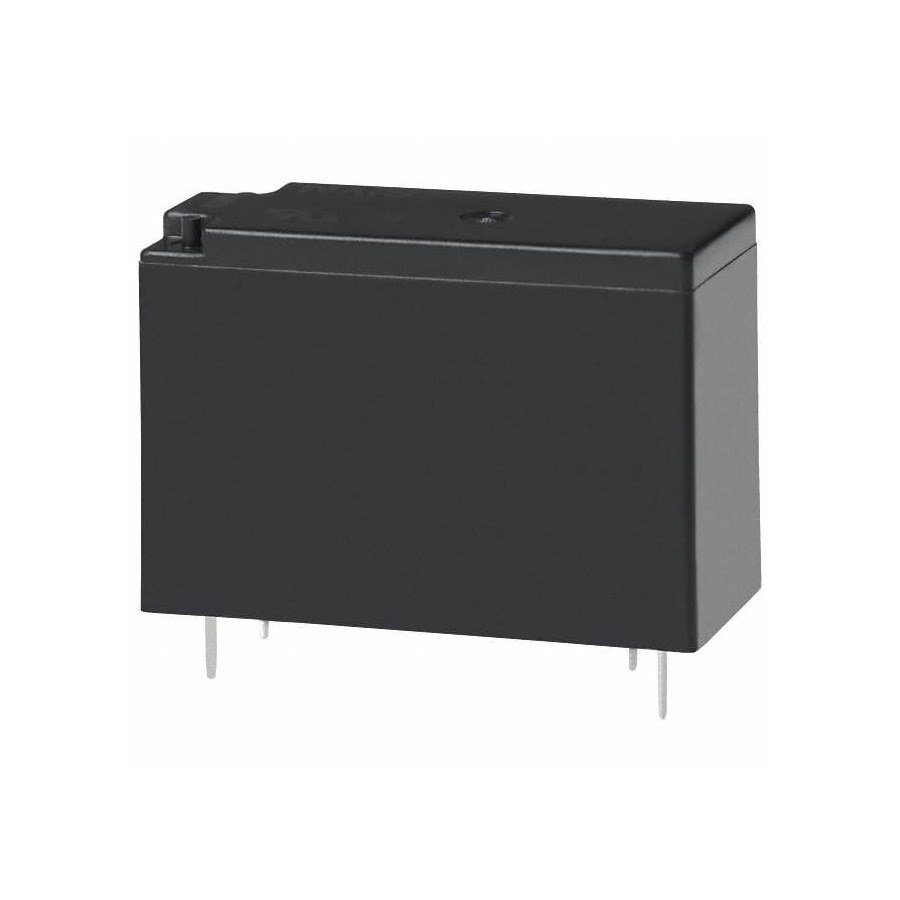

JW1FSN-DC12V · Relay Through Hole,28.6x12.8mm

JW1FSN-DC12V (Relay Through Hole,28.6x12.8mm from Panasonic) comes in a Through Hole,28.6x12.8mm package. Reference unit price: US$2.07, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

JW1FSN-DC12V Relay Through Hole,28.6x12.8mm
Part numberJW1FSN-DC12V
ManufacturerPanasonic
DescriptionRelay Through Hole,28.6x12.8mm
PackageThrough Hole,28.6x12.8mm
CategorySwitches & Relays / Relays
Reference priceUS$2.07
Min. order1 pcs
AvailabilityIn stock
Reference stock35 pcs

JW1FSN-DC12V price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$2.07In stock
10 pcs and upUS$1.82In stock
30 pcs and upUS$1.67In stock
100 pcs and upUS$1.54In stock
500 pcs and upUS$1.45In stock
1000 pcs and upUS$1.41In stock

JW1FSN-DC12V specifications

Coil Voltage12V
Switching Current(Max)10A
Contact FormOne set of changeover: 1C (SPDT-changeov
Switching Voltage(Max)250V@AC;30V@DC
Coil Resistance270Ω
Release Time5ms
Time to Trip15ms
Length28.6mm
Contact Resistance100mΩ

About the Relay Through Hole,28.6x12.8mm

JW1FSN-DC12V is Panasonic's Relay Through Hole,28.6x12.8mm. Typical use is switching mains or high-current loads from a low-voltage control board, with galvanic isolation between the two sides. Check the coil voltage, the contact form (NO/NC, number of poles) and the contact rating for the load type - inductive and inrush loads need more headroom than a resistive one. Footprint and pin-out differ between families. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.
