Switches & Relays Relays · CIT

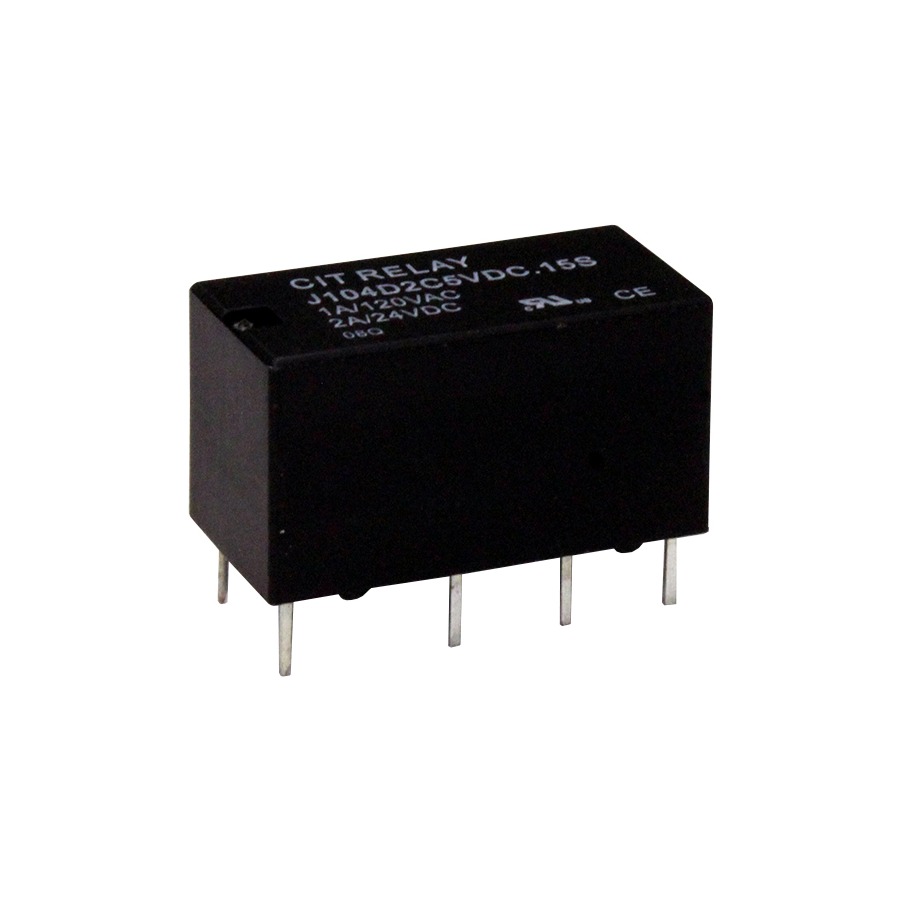

J104D2C5VDC.15S · RELAY GENERAL PURPOSE DPDT 2A 5V

J104D2C5VDC.15S (RELAY GENERAL PURPOSE DPDT 2A 5V from CIT) comes in a Tube package. Reference unit price: Request quote, minimum order 1 piece. Availability: Confirm on inquiry. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

J104D2C5VDC.15S RELAY GENERAL PURPOSE DPDT 2A 5V
Part numberJ104D2C5VDC.15S
ManufacturerCIT
DescriptionRELAY GENERAL PURPOSE DPDT 2A 5V
PackageTube
CategorySwitches & Relays / Relays
Reference priceRequest quote
Min. order1 pcs
AvailabilityConfirm on inquiry
Reference stock0 pcs

J104D2C5VDC.15S price and stock (reference)

This part is a backorder item: price and lead time are confirmed per order. Send us an RFQ and sales will reply with unit price, lead time, MOQ and in-stock alternatives.

J104D2C5VDC.15S specifications

Mounting TypeThrough Hole
Coil Voltage5VDC
Contact FormDPDT (2 Form C)
Contact Rating (Current)2 A
Switching Voltage250VAC, 100VDC - Max
Load - Max Switching500VA, 200W
Coil Current29.9 mA
Coil TypeNon Latching

About the RELAY GENERAL PURPOSE DPDT 2A 5V

J104D2C5VDC.15S is CIT's RELAY GENERAL PURPOSE DPDT 2A 5V, Tube package. It is an electromechanical switch that lets a low-power control signal switch a much larger load, with full isolation between coil and contacts. Check the coil voltage, the contact form (NO/NC, number of poles) and the contact rating for the load type - inductive and inrush loads need more headroom than a resistive one. Footprint and pin-out differ between families. Availability, batch and lead time are confirmed on inquiry.

J104D2C5VDC.15S — frequently asked questions

Is J104D2C5VDC.15S in stock?

Reference availability: 0 pcs, Confirm on inquiry. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does J104D2C5VDC.15S cost?

This part is a backorder item — price and lead time are quoted per order. Send us the quantity you need and sales will reply with price, lead time, MOQ and in-stock alternatives.

What package and brand is J104D2C5VDC.15S?

J104D2C5VDC.15S is manufactured by CIT in a Tube package, filed under Switches & Relays / Relays. J104D2C5VDC.15S is CIT's RELAY GENERAL PURPOSE DPDT 2A 5V, Tube package. It is an electromechanical switch that lets a low-power control signal switch a much larger load, with full isolation between coil and contacts. Check the coil voltage, the contact form (NO/NC, number of poles) and the contact rating for the load type - inductive and inrush loads need more headroom than a resistive one. Footprint and pin-out differ between families. Availability, batch and lead time are confirmed on inquiry.

What is the minimum order quantity for J104D2C5VDC.15S?

The minimum order quantity for J104D2C5VDC.15S is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for J104D2C5VDC.15S?

Yes. Send us the original part number or the key parameters (Mounting Type, Coil Voltage, Contact Form) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for J104D2C5VDC.15S?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Relays parts

Need J104D2C5VDC.15S?

Genuine parts · small-batch trial runs · full BOM kitting

How to order J104D2C5VDC.15S

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
