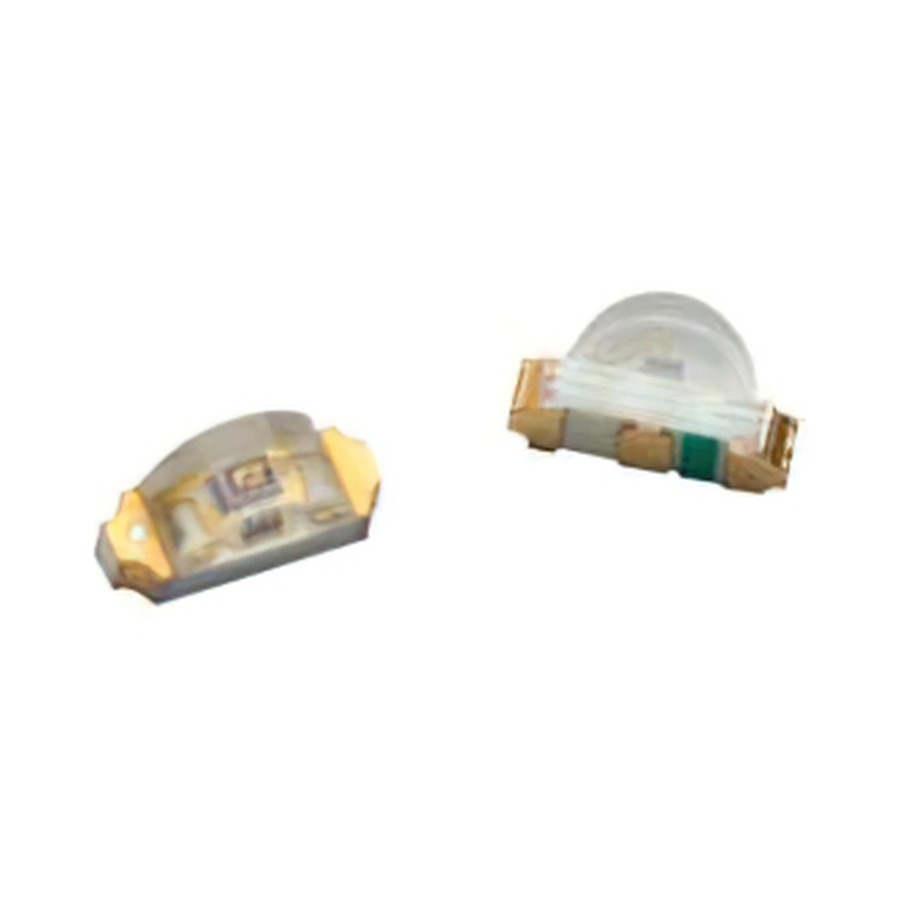

HSM9-C120 · LED 945nm 2-SMD, No Lead
HSM9-C120 (LED 945nm 2-SMD, No Lead from Broadcom Limited) comes in a 2-SMD, No Lead package. Reference unit price: ¥3.0142, minimum order 100 pcs. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.
| Part number | HSM9-C120 |
| Manufacturer | Broadcom Limited |
| Description | LED 945nm 2-SMD, No Lead |
| Package | 2-SMD, No Lead |
| Category | Optoelectronics / SMD LEDs |
| Reference price | ¥¥3.0142 |
| Min. order | 100 pcs |
| Availability | In stock |
| Reference stock | 1,220 pcs |
HSM9-C120 tiered pricing (reference)
| Quantity | Reference unit price | Lead time |
|---|---|---|
| 100 pcs and up | ¥3.0142 | In stock |
| 8000 pcs and up | ¥2.8837 | In stock |
| 12000 pcs and up | ¥2.8169 | In stock |
| 20000 pcs and up | ¥2.7415 | In stock |
HSM9-C120 specifications
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 70mA |
| Radiant Intensity (Ie) Min @ If | 1mW/sr @ 70mA |
| Wavelength | 945nm |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 150° |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount, Right Angle |
About the LED 945nm 2-SMD, No Lead
Broadcom Limited Infrared (IR) Emitter 945nm 1.5V 70mA 1mW/sr @ 70mA 150° 2-SMD, No Lead. In stock — 1,220 pcs available.
HSM9-C120 — frequently asked questions
Reference availability: 1,220 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.
Reference unit price is ¥3.0142, minimum order 100 pcs. Tiered pricing: 100 pcs and up: ¥3.0142, 8000 pcs and up: ¥2.8837, 12000 pcs and up: ¥2.8169, 20000 pcs and up: ¥2.7415. Send us your required quantity for a firm quotation.
HSM9-C120 is manufactured by Broadcom Limited in a 2-SMD, No Lead package, filed under Optoelectronics / SMD LEDs. Broadcom Limited Infrared (IR) Emitter 945nm 1.5V 70mA 1mW/sr @ 70mA 150° 2-SMD, No Lead. In stock — 1,220 pcs available.
The minimum order quantity for HSM9-C120 is 100 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.
Yes. Send us the original part number or the key parameters (Type, Current - DC Forward (If) (Max), Radiant Intensity (Ie) Min @ If) and we will come back with pin-compatible alternatives and a quotation.
Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally reply with a quotation within two hours.
Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
