FH28D-30S-0.5SH(05) · Wire-to-Board Connector 50V 500mA 30P 0.5mm

FH28D-30S-0.5SH(05) (Wire-to-Board Connector 50V 500mA 30P 0.5mm from Hirose) comes in a SMD,P=0.5mm,Surface Mount,Ri package. Reference unit price: US$0.495, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

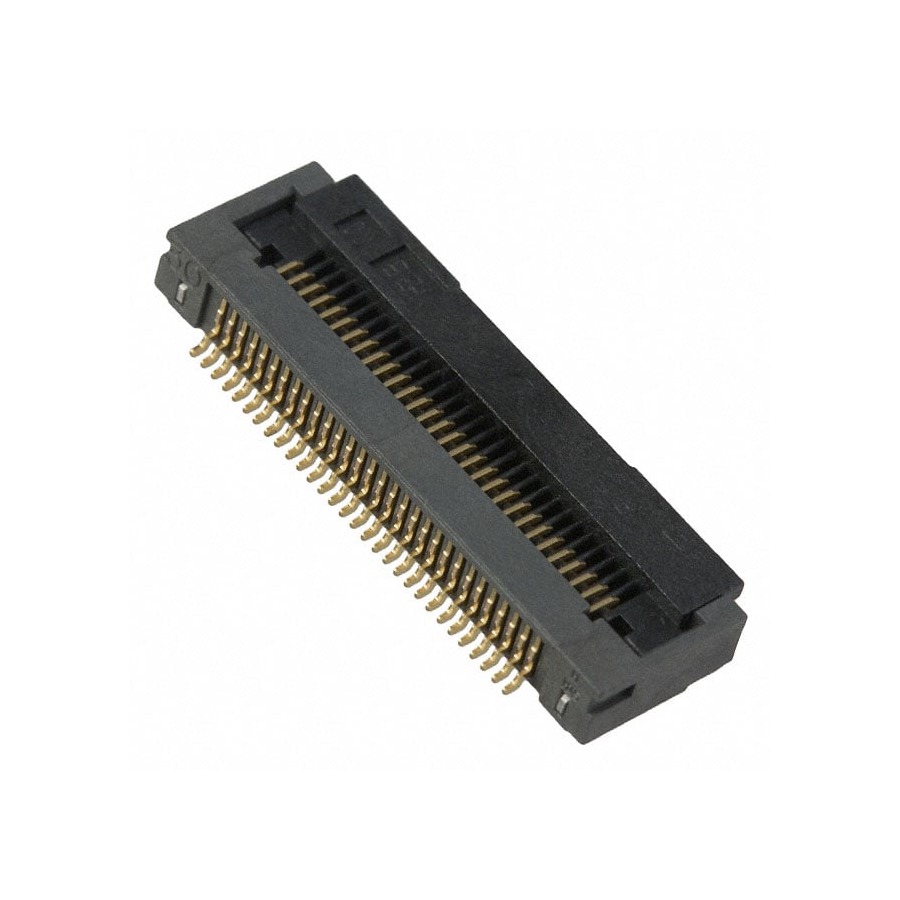

FH28D-30S-0.5SH(05) Wire-to-Board Connector 50V 500mA 30P 0.5mm
Part numberFH28D-30S-0.5SH(05)
ManufacturerHirose
DescriptionWire-to-Board Connector 50V 500mA 30P 0.5mm
PackageSMD,P=0.5mm,Surface Mount,Ri
CategoryConnectors / Wire-to-Board Connectors
Reference priceUS$0.495
Min. order1 pcs
AvailabilityIn stock
Reference stock830 pcs

FH28D-30S-0.5SH(05) price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.495In stock
10 pcs and upUS$0.409In stock
30 pcs and upUS$0.365In stock
100 pcs and upUS$0.323In stock
500 pcs and upUS$0.286In stock
1000 pcs and upUS$0.273In stock

FH28D-30S-0.5SH(05) specifications

Operating Temperature-40℃~+105℃
Locking FeatureFlip-Top
Number of Contacts30P
Pitch0.5mm
Current Rating500mA
Voltage Rating50V
Contact PlatingGold
Contact TypeBottom Contact
Mounting TypeSurface Mount, Right Angle

About the Wire-to-Board Connector 50V 500mA 30P 0.5mm

FH28D-30S-0.5SH(05) is Hirose's Wire-to-Board Connector 50V 500mA 30P 0.5mm, SMD,P=0.5mm,Surface Mount,Ri package. It joins a cable harness to the board - the classic power and signal link between a main board and a battery pack, fan, sensor or sub-board. Pitch, pin count, orientation and the mating housing all have to match, and the header and its cable housing are usually a matched pair. Check the current rating for the wire gauge in use. Availability, batch and lead time are confirmed on inquiry.

FH28D-30S-0.5SH(05) — frequently asked questions

Is FH28D-30S-0.5SH(05) in stock?

Reference availability: 830 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does FH28D-30S-0.5SH(05) cost?

Reference unit price is US$0.495, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.495, 10 pcs and up: US$0.409, 30 pcs and up: US$0.365, 100 pcs and up: US$0.323, 500 pcs and up: US$0.286, 1000 pcs and up: US$0.273. Send us your required quantity for a firm quotation.

What package and brand is FH28D-30S-0.5SH(05)?

FH28D-30S-0.5SH(05) is manufactured by Hirose in a SMD,P=0.5mm,Surface Mount,Ri package, filed under Connectors / Wire-to-Board Connectors. FH28D-30S-0.5SH(05) is Hirose's Wire-to-Board Connector 50V 500mA 30P 0.5mm, SMD,P=0.5mm,Surface Mount,Ri package. It joins a cable harness to the board - the classic power and signal link between a main board and a battery pack, fan, sensor or sub-board. Pitch, pin count, orientation and the mating housing all have to match, and the header and its cable housing are usually a matched pair. Check the current rating for the wire gauge in use. Availability, batch and lead time are confirmed on inquiry.

What is the minimum order quantity for FH28D-30S-0.5SH(05)?

The minimum order quantity for FH28D-30S-0.5SH(05) is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for FH28D-30S-0.5SH(05)?

Yes. Send us the original part number or the key parameters (Operating Temperature, Locking Feature, Number of Contacts) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for FH28D-30S-0.5SH(05)?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related Wire-to-Board Connectors parts

Need FH28D-30S-0.5SH(05)?

Genuine parts · small-batch trial runs · full BOM kitting

How to order FH28D-30S-0.5SH(05)

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
