Fuses & Protection ESD Protection · Comchip

CPDUR5V0HE-HF · ESD protection 0603

CPDUR5V0HE-HF (ESD protection 0603 from Comchip) comes in a 0603 package. Reference unit price: US$0.053, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

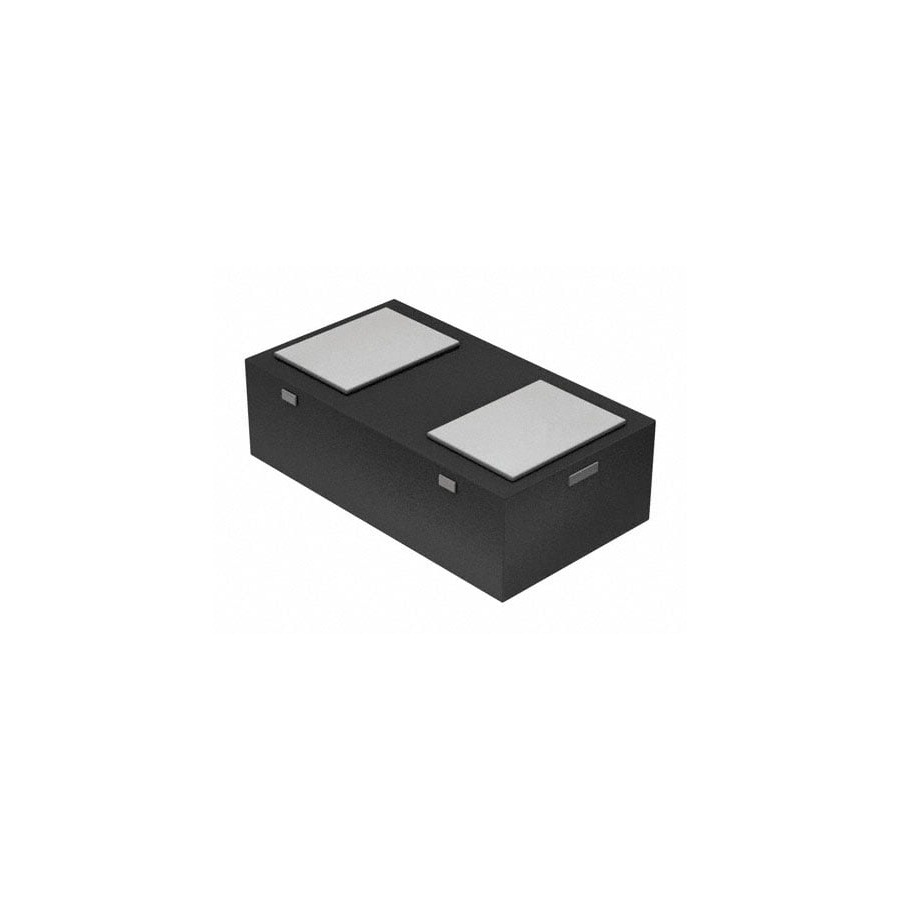

CPDUR5V0HE-HF ESD protection 0603
Part numberCPDUR5V0HE-HF
ManufacturerComchip
DescriptionESD protection 0603
Package0603
CategoryFuses & Protection / ESD Protection
Reference priceUS$0.053
Min. order1 pcs
AvailabilityIn stock
Reference stock19 pcs

CPDUR5V0HE-HF price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.053In stock
10 pcs and upUS$0.042In stock
30 pcs and upUS$0.036In stock
100 pcs and upUS$0.032In stock

CPDUR5V0HE-HF specifications

TypeZener
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)5V (Max)
Voltage - Breakdown (Min)5.5V
Voltage - Clamping (Max) @ Ipp16V
Current - Peak Pulse (10/1000µs)8A (8/20µs)
Power - Peak Pulse128W
Power Line ProtectionNo
ApplicationsGeneral Purpose

About the ESD protection 0603

CPDUR5V0HE-HF is Comchip's ESD protection 0603. It shunts an electrostatic discharge away from a sensitive pin, protecting the IC behind it from a connector or a human touch. Check the working voltage, the clamping voltage and the capacitance - capacitance matters a lot on a high-speed line, where a general-purpose part can wreck the signal integrity. Match the line count and the channel configuration. Availability, batch and lead time are confirmed on inquiry.

CPDUR5V0HE-HF — frequently asked questions

Is CPDUR5V0HE-HF in stock?

Reference availability: 19 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does CPDUR5V0HE-HF cost?

Reference unit price is US$0.053, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.053, 10 pcs and up: US$0.042, 30 pcs and up: US$0.036, 100 pcs and up: US$0.032. Send us your required quantity for a firm quotation.

What package and brand is CPDUR5V0HE-HF?

CPDUR5V0HE-HF is manufactured by Comchip in a 0603 package, filed under Fuses & Protection / ESD Protection. CPDUR5V0HE-HF is Comchip's ESD protection 0603. It shunts an electrostatic discharge away from a sensitive pin, protecting the IC behind it from a connector or a human touch. Check the working voltage, the clamping voltage and the capacitance - capacitance matters a lot on a high-speed line, where a general-purpose part can wreck the signal integrity. Match the line count and the channel configuration. Availability, batch and lead time are confirmed on inquiry.

What is the minimum order quantity for CPDUR5V0HE-HF?

The minimum order quantity for CPDUR5V0HE-HF is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for CPDUR5V0HE-HF?

Yes. Send us the original part number or the key parameters (Type, Bidirectional Channels, Voltage - Reverse Standoff (Typ)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for CPDUR5V0HE-HF?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related ESD Protection parts

Need CPDUR5V0HE-HF?

Genuine parts · small-batch trial runs · full BOM kitting

How to order CPDUR5V0HE-HF

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (1 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
