Fuses & Protection Varistors · BOURNS

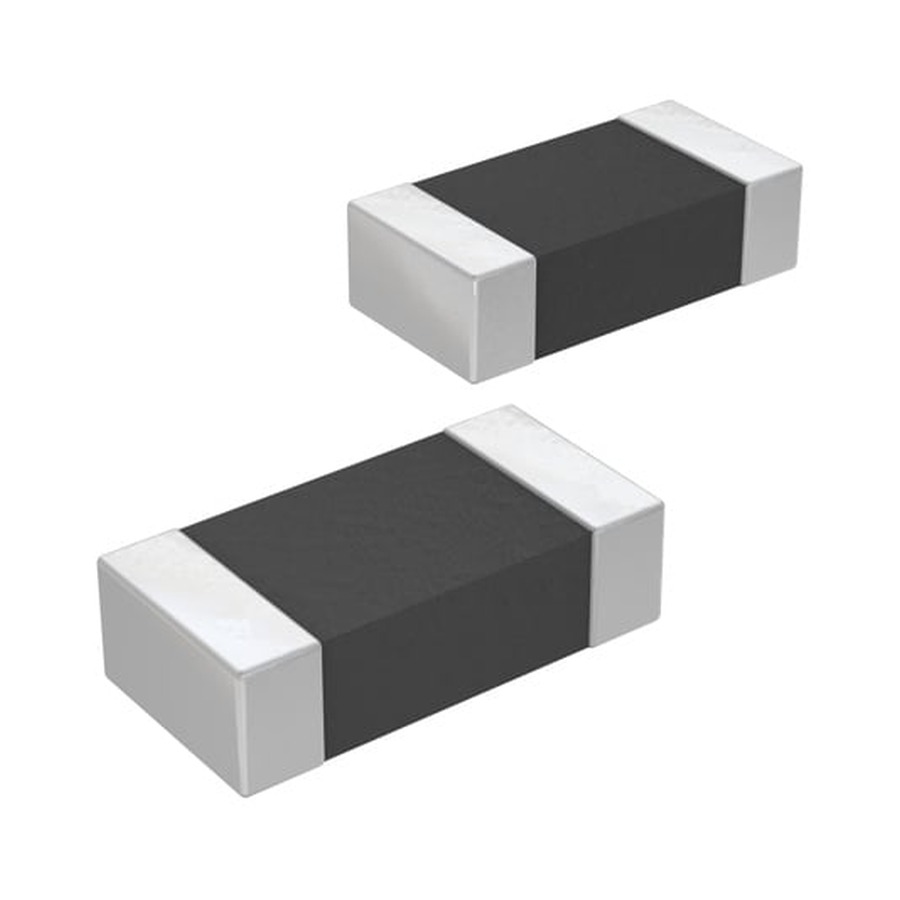

CG0603MLA-5.5ME · VARISTOR 13V 30A 0603

CG0603MLA-5.5ME (VARISTOR 13V 30A 0603 from BOURNS) comes in a 0603 package. Reference unit price: US$0.062, minimum order 1 piece. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

CG0603MLA-5.5ME VARISTOR 13V 30A 0603
Part numberCG0603MLA-5.5ME
ManufacturerBOURNS
DescriptionVARISTOR 13V 30A 0603
Package0603
CategoryFuses & Protection / Varistors
Reference priceUS$0.062
Min. order1 pcs
AvailabilityIn stock
Reference stock106 pcs

CG0603MLA-5.5ME price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.062In stock
10 pcs and upUS$0.050In stock
30 pcs and upUS$0.043In stock
100 pcs and upUS$0.039In stock
500 pcs and upUS$0.035In stock
800 pcs and upUS$0.031In stock

CG0603MLA-5.5ME specifications

Maximum AC Volts4 V
Maximum DC Volts5.5 V
Varistor Voltage (Min)8 V
Varistor Voltage (Typ)13 V
Varistor Voltage (Max)18 V
Current - Surge30 A
Energy0.1J
Number of Circuits1
Capacitance @ Frequency270 pF @ 1 MHz

About the VARISTOR 13V 30A 0603

CG0603MLA-5.5ME is BOURNS's VARISTOR 13V 30A 0603. It clamps a voltage surge by dropping sharply in resistance above its varistor voltage, absorbing the transient energy. Choose the varistor voltage above the normal peak line voltage, then check the energy and surge current rating. Varistors degrade with each surge, so a heavily-hit part drifts and eventually fails. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

CG0603MLA-5.5ME — frequently asked questions

Is CG0603MLA-5.5ME in stock?

Reference availability: 106 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does CG0603MLA-5.5ME cost?

Reference unit price is US$0.062, minimum order 1 piece. Tiered pricing: 1 pcs and up: US$0.062, 10 pcs and up: US$0.050, 30 pcs and up: US$0.043, 100 pcs and up: US$0.039, 500 pcs and up: US$0.035, 800 pcs and up: US$0.031. Send us your required quantity for a firm quotation.

What package and brand is CG0603MLA-5.5ME?

CG0603MLA-5.5ME is manufactured by BOURNS in a 0603 package, filed under Fuses & Protection / Varistors. CG0603MLA-5.5ME is BOURNS's VARISTOR 13V 30A 0603. It clamps a voltage surge by dropping sharply in resistance above its varistor voltage, absorbing the transient energy. Choose the varistor voltage above the normal peak line voltage, then check the energy and surge current rating. Varistors degrade with each surge, so a heavily-hit part drifts and eventually fails. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for CG0603MLA-5.5ME?

The minimum order quantity for CG0603MLA-5.5ME is 1 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for CG0603MLA-5.5ME?

Yes. Send us the original part number or the key parameters (Maximum AC Volts, Maximum DC Volts, Varistor Voltage (Min)) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for CG0603MLA-5.5ME?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.
