Optoelectronics SMD LEDs · Broadcom

ASMG-PT00-00001 · LED SMD-6P,4x4mm

ASMG-PT00-00001 (LED SMD-6P,4x4mm from Broadcom) comes in a SMD-6P,4x4mm package. Reference unit price: US$7.04, minimum order 100 pcs. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

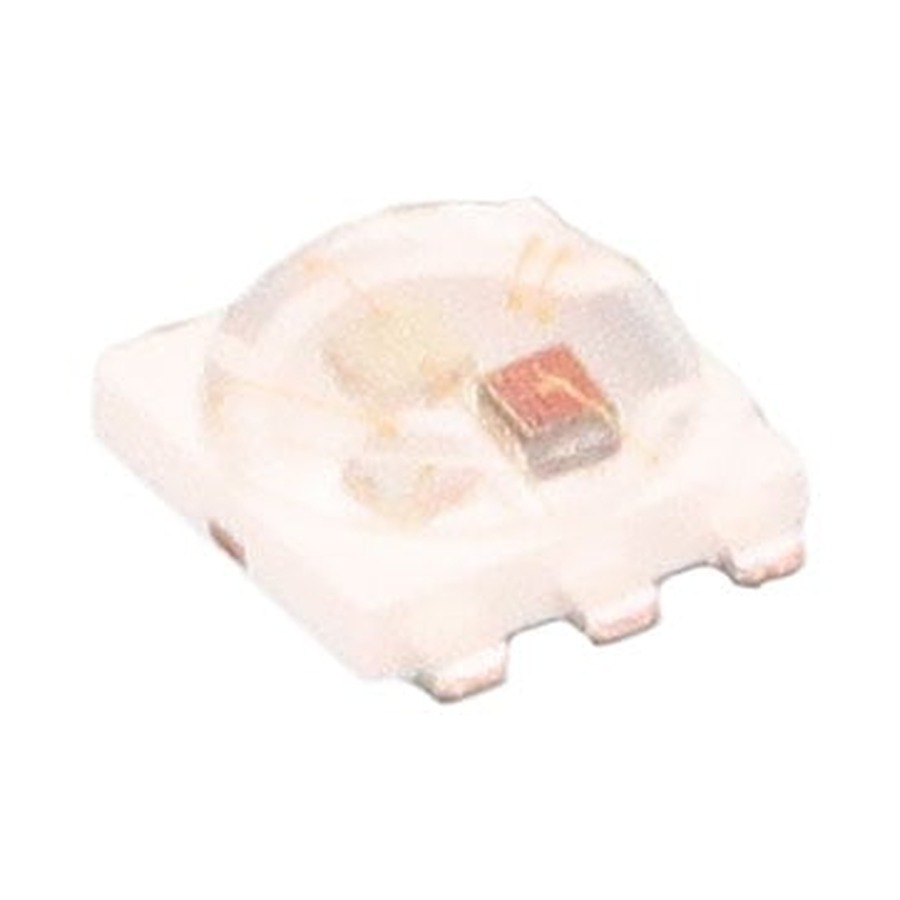

ASMG-PT00-00001 LED SMD-6P,4x4mm
Part numberASMG-PT00-00001
ManufacturerBroadcom
DescriptionLED SMD-6P,4x4mm
PackageSMD-6P,4x4mm
CategoryOptoelectronics / SMD LEDs
Reference priceUS$7.04
Min. order100 pcs
AvailabilityIn stock
Reference stock12 pcs

ASMG-PT00-00001 price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$7.04In stock
10 pcs and upUS$6.87In stock
30 pcs and upUS$6.76In stock

ASMG-PT00-00001 specifications

Viewing Angle155°
ColorRed, Green, Blue (RGB)
Wavelength623nm Red, 530nm Green, 458nm Blue
Current - Test150mA
Voltage - Forward (Vf) (Typ)2.2V Red, 3.1V Green, 3.0V Blue
Lumens/Watt @ Current - Test68 lm/W Red, 74 lm/W Green, 17 lm/W Blue
Current - Max200mA
Luminous Flux @ Current/Temperature30lm Red, 46lm Green, 10lm Blue
Temperature - Test25°C
Viewing Angle155°

About the LED SMD-6P,4x4mm

ASMG-PT00-00001 is Broadcom's LED SMD-6P,4x4mm. It is a surface-mount LED used for status indication, backlighting and simple light output on a board. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

ASMG-PT00-00001 — frequently asked questions

Is ASMG-PT00-00001 in stock?

Reference availability: 12 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does ASMG-PT00-00001 cost?

Reference unit price is US$7.04, minimum order 100 pcs. Tiered pricing: 1 pcs and up: US$7.04, 10 pcs and up: US$6.87, 30 pcs and up: US$6.76. Send us your required quantity for a firm quotation.

What package and brand is ASMG-PT00-00001?

ASMG-PT00-00001 is manufactured by Broadcom in a SMD-6P,4x4mm package, filed under Optoelectronics / SMD LEDs. ASMG-PT00-00001 is Broadcom's LED SMD-6P,4x4mm. It is a surface-mount LED used for status indication, backlighting and simple light output on a board. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for ASMG-PT00-00001?

The minimum order quantity for ASMG-PT00-00001 is 100 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for ASMG-PT00-00001?

Yes. Send us the original part number or the key parameters (Viewing Angle, Color, Wavelength) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for ASMG-PT00-00001?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related SMD LEDs parts

Need ASMG-PT00-00001?

Genuine parts · small-batch trial runs · full BOM kitting

How to order ASMG-PT00-00001

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (100 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
