APA3010F3C-GX · SMD LED (IR) 940nm

APA3010F3C-GX (SMD LED (IR) 940nm from Kingbright) comes in a 2-SMD, No Lead package. Reference unit price: US$0.255, minimum order 20 pcs. Availability: In stock. Shenzhen Kewei Technology Co., Ltd. supplies this part from Huaqiangbei, Shenzhen, with tiered pricing, small-batch support and full BOM kitting. Prices and lead times are confirmed on inquiry.

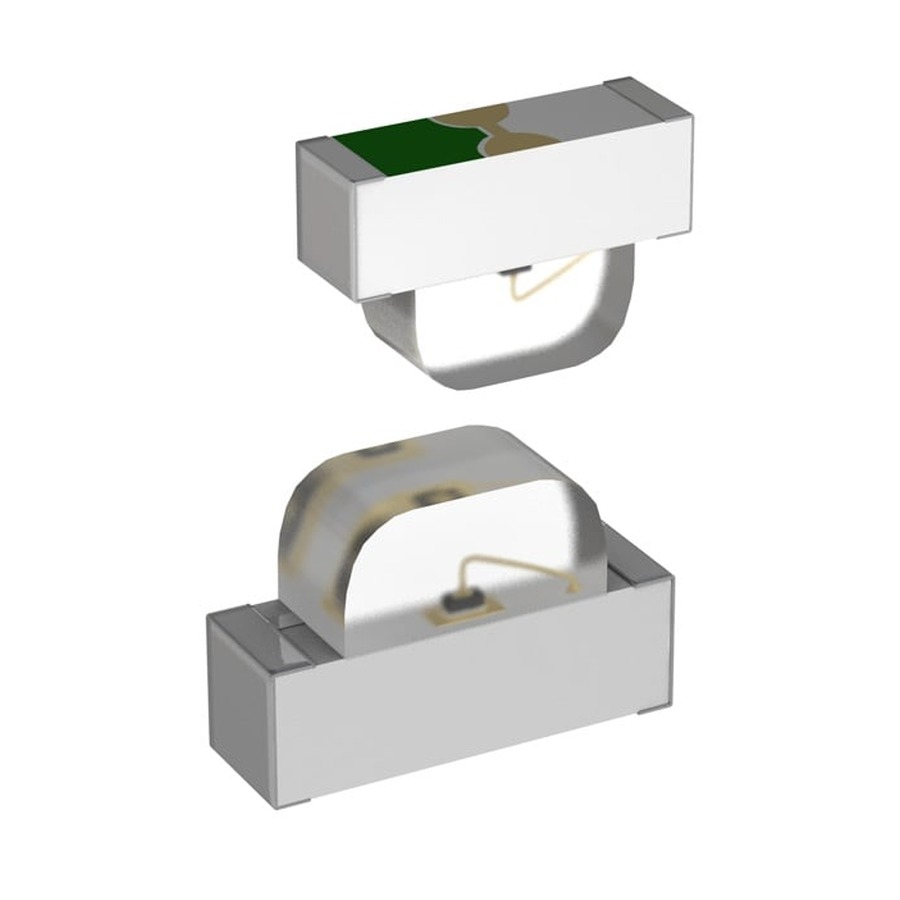

APA3010F3C-GX SMD LED (IR) 940nm
Part numberAPA3010F3C-GX
ManufacturerKingbright
DescriptionSMD LED (IR) 940nm
Package2-SMD, No Lead
CategoryOptoelectronics / SMD LEDs
Reference priceUS$0.255
Min. order20 pcs
AvailabilityIn stock
Reference stock235 pcs

APA3010F3C-GX price and stock (reference)

QuantityReference unit priceLead time
1 pcs and upUS$0.255In stock
10 pcs and upUS$0.203In stock
30 pcs and upUS$0.180In stock
100 pcs and upUS$0.152In stock
400 pcs and upUS$0.139In stock
800 pcs and upUS$0.132In stock

APA3010F3C-GX specifications

TypeInfrared (IR)
Current - DC Forward (If) (Max)50mA
Radiant Intensity (Ie) Min @ If1.2mW/sr @ 20mA
Wavelength940nm
Voltage - Forward (Vf) (Typ)1.2V
Viewing Angle120°
OrientationSide View
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount, Right Angle

About the SMD LED (IR) 940nm

APA3010F3C-GX is Kingbright's LED Infrared (IR) 940nm 2-SMD, No Lead. It is a surface-mount LED used for status indication, backlighting and simple light output on a board. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

APA3010F3C-GX — frequently asked questions

Is APA3010F3C-GX in stock?

Reference availability: 235 pcs, In stock. Stock and lead time are confirmed on inquiry — please contact our sales team for the latest status before ordering.

How much does APA3010F3C-GX cost?

Reference unit price is US$0.255, minimum order 20 pcs. Tiered pricing: 1 pcs and up: US$0.255, 10 pcs and up: US$0.203, 30 pcs and up: US$0.180, 100 pcs and up: US$0.152, 400 pcs and up: US$0.139, 800 pcs and up: US$0.132. Send us your required quantity for a firm quotation.

What package and brand is APA3010F3C-GX?

APA3010F3C-GX is manufactured by Kingbright in a 2-SMD, No Lead package, filed under Optoelectronics / SMD LEDs. APA3010F3C-GX is Kingbright's LED Infrared (IR) 940nm 2-SMD, No Lead. It is a surface-mount LED used for status indication, backlighting and simple light output on a board. Colour, package size and viewing angle are what you really match, plus forward voltage and current. Recalculate the series resistor for the forward voltage of the part you fit. Held in stock in Shenzhen; batch and lead time are confirmed on inquiry.

What is the minimum order quantity for APA3010F3C-GX?

The minimum order quantity for APA3010F3C-GX is 20 pcs. We support small-batch trial runs as well as volume kitting, and can supply full reels, cut tape or loose parts.

Can you suggest an alternative part for APA3010F3C-GX?

Yes. Send us the original part number or the key parameters (Type, Current - DC Forward (If) (Max), Radiant Intensity (Ie) Min @ If) and we will come back with pin-compatible alternatives and a quotation.

How do I request a quote for APA3010F3C-GX?

Call or WeChat +86 191 2521 1182, email 19125211182@163.com, or upload your BOM on our BOM sourcing page. We normally respond within two working hours, and a formal full-BOM quotation is normally issued within 24 hours.

Do you ship overseas?

Yes. We are based in Huaqiangbei, Shenzhen and ship worldwide by express courier. Tell us your destination and we will quote shipping with the parts.

Related SMD LEDs parts

Need APA3010F3C-GX?

Genuine parts · small-batch trial runs · full BOM kitting

How to order APA3010F3C-GX

Send the quantity and the destination country; sales normally responds within two working hours with the unit price, date code, MOQ (20 pcs) and shipping cost. A formal full-BOM quotation normally follows within 24 hours. Shipping is quoted together with the parts.
